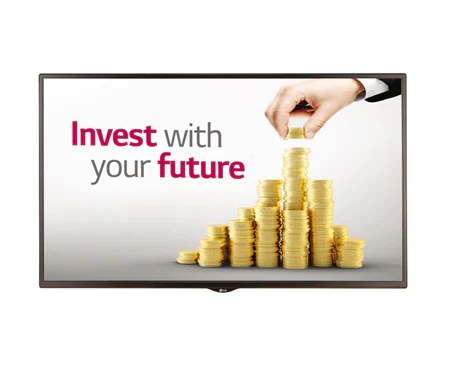

LG 55-inch Full HD Standard Signage Display – 55SM5KB
The LG 55SM5KB (55SM5KB-B.AMA) is a 55-inch Full HD standard signage display with 450 cd/m² brightness, DisplayPort, DVI-D and RGB inputs, RS-232C and RJ45 control, and OPS type compatibility. It suits retail, hospitality and corporate signage. Procure.ae, an authorised LG reseller in Dubai, supplies the 55SM5KB in the UAE.
The 55SM5KB pairs a 1,920 x 1,080 (Full HD) panel with a brightness of 450 cd/m². The bezel measures 11.9 mm at the top, left and right and 18 mm at the bottom. It provides DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB inputs, a DisplayPort output for connecting another display, a USB 3.0 port and an SDHC or full-size SD card slot.
The manufacturer's specifications list OPS type compatibility, MP500 and MP700 external media player support, and SuperSign-w lite and SuperSign-c content software. External control is through RS-232C in and out, RJ45 and a pixel sensor connection. The display measures 1,238 x 714.9 mm, is 54 mm deep (38.6 mm at the thinnest part), weighs 17.5 kg (head) and mounts on a 300 x 300 mm VESA pattern.
Key features
Specifications
| Compatibility | SuperSign-w lite, SuperSign-c; MP500 / MP700 external media players |
| Key Features | 55-inch Full HD, 450 nits, DisplayPort and DVI-D inputs, DisplayPort output, RS-232C and RJ45 control, USB 3.0, SD card slot, OPS compatible |
| Model | 55SM5KB |
| Type | Standard Signage Display |
| What's in the Box | Remote control (2 batteries), power cord, quick start guide, RGB cable, regulation book, phone-to-RS-232C gender, memory cover |
| Aspect Ratio | 16:9 |
| Bezel Size | 11.9 mm (top/left/right), 18 mm (bottom) |
| Brightness | 450 nits |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Size | 55 inch |
| Audio In | Audio In × 1 (RGB/DVI) |
| Audio Out | Audio Out × 1 |
| DisplayPort | DisplayPort In × 1 (HDCP 1.3), DisplayPort Out × 1 (SST, DP 1.2a) |
| Ethernet | RJ45 × 1 (external control) |
| OPS Slot | OPS type compatible |
| Ports | DisplayPort In × 1, DVI-D In × 1, RGB In × 1, DisplayPort Out × 1, Audio In/Out × 1 each, USB 3.0 × 1, SD card × 1, RJ45 × 1, RS-232C In/Out |
| SD Card Slot | SDHC / full-size SD × 1 |
| Serial Port | RS-232C In × 1, RS-232C Out × 1 |
| USB Ports | USB 3.0 × 1 |
| VGA Input | Analog RGB × 1 |
| Dimensions | 1238 x 714.9 x 54 mm (38.6 mm at thinnest part) |
| VESA Mount | 300 x 300 mm |
| Weight | 17.5 kg (head) |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
