LGDigital SignageSKU 55EF5G-P

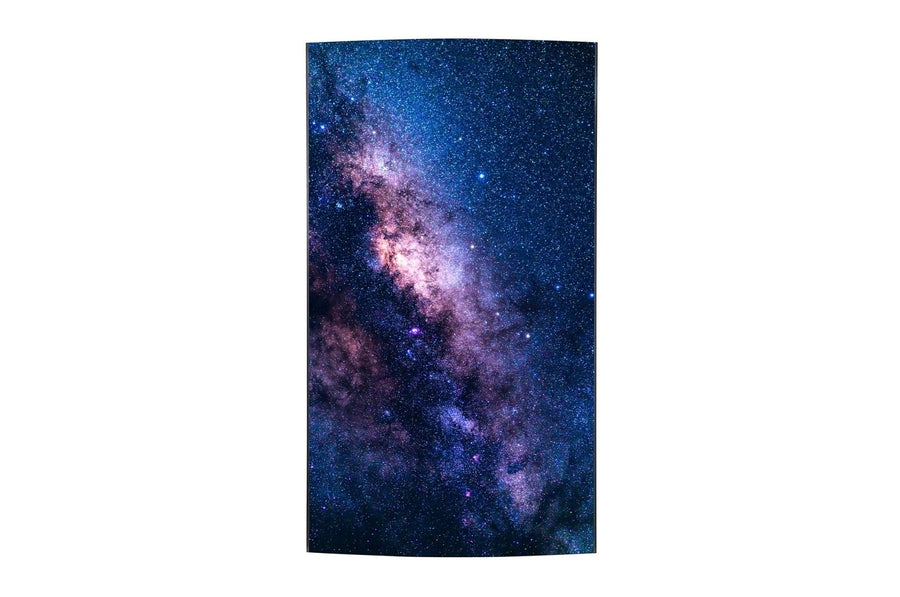

LG 55-inch Flexible Curved OLED Open Frame Digital Signage Display – 55EF5G-P
The LG 55EF5G-P is a 55-inch flexible curved OLED open frame digital signage display for feature walls, showrooms and tiled indoor installations. It offers Full HD resolution, 150,000:1 contrast and webOS 4.0 with local content scheduling. Procure.ae can confirm current availability and recommend a successor model in the UAE.
The 55EF5G-P uses a 55-inch OLED panel at 1920 x 1080 with a 16:9 aspect ratio. Typical brightness is 400 nits at 25% APL and 150 nits at 100% APL, with a 150,000:1 contrast ratio. The panel covers BT.709 120% colour gamut with 10-bit colour depth and a 1 ms grey-to-grey response time. Viewing angles are 178 degrees horizontally and vertically. The manufacturer rates the display for 18 hours a day, 7 days a week with moving content, and the open frame supports landscape and portrait orientation.
The 55EF5G-P is intended for tiled and expandable indoor installations, with the signage box mounted separately. It runs webOS 4.0 with local contents scheduling, video tags, tile mode and screen rotation. Control is through RS232C, RJ45 LAN and IR, with SNMP, Wake on LAN and HDMI-CEC support. The landscape head weighs 5.8 kg and the portrait head weighs 7.0 kg.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
400 nits (APL 25%, typical) / 150 n...
Type
Digital Signage Display
- OLED panel
- Fast response
- High contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
OLED panel
55-inch, 1920 x 1080 Full HD
02
Fast response
1 ms grey-to-grey, 8 ms MPRT
03
High contrast
150,000:1 contrast ratio
04
Flexible frame
expandable open frame design
05
Embedded software
webOS 4.0 with local contents scheduling
06
Tiling
tile mode setting and multi-panel sync
07
Remote control
RS232C, RJ45 LAN, IR and Wake on LAN
Specifications
23 specificationsGeneral
Key FeaturesExpandable screen design, webOS 4.0, local contents scheduling, video tag, tile mode, Crestron inside, HDMI-CEC, Wake on LAN
Model55EF5G-P
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel SizeOff-bezel 0.6 mm top/bottom, 6.7 mm sides
Brightness400 nits (APL 25%, typical) / 150 nits (APL 100%, typical)
Color Depth10-bit (R), 1.07 billion colours
Color GamutBT.709 120%
Contrast Ratio150,000:1
OrientationLandscape and portrait
Panel TechnologyOLED
Resolution1920 x 1080 (Full HD)
Response Time1 ms (G to G), 8 ms (MPRT)
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Duty Cycle18 hours/day, 7 days a week (moving content only)
Operating SystemwebOS 4.0
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In x 1, DP In x 1, RS232C In/Out, RJ45 LAN In/Out, USB 2.0 x 2, IR In
Physical
Dimensions1224.9 x 696.2 x 38.0 mm (landscape head, with pem-nut)
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Weight5.8 kg (landscape head)
Questions
Can’t find your answer? Ask on WhatsApp
What is the screen size and resolution of the LG 55EF5G-P?
The LG 55EF5G-P has a 55-inch OLED panel with a 1920 x 1080 (Full HD) resolution and a 16:9 aspect ratio.
Can the LG 55EF5G-P be tiled into a video wall?
Yes. The display includes a tile mode setting and multi-panel sync over RS232C or local network sync.
Does it support portrait mounting?
Yes. The manufacturer lists landscape and portrait orientation, with separate dimensions and weights for each. Confirm the bracket and bezel layout with the installer before fitting.
Which software does the LG 55EF5G-P work with?
It runs webOS 4.0 with local contents scheduling and group management. It also supports SNMP, Wake on LAN, HDMI-CEC and Crestron Inside integration.
