LGDigital SignageSKU 43UH5F-H

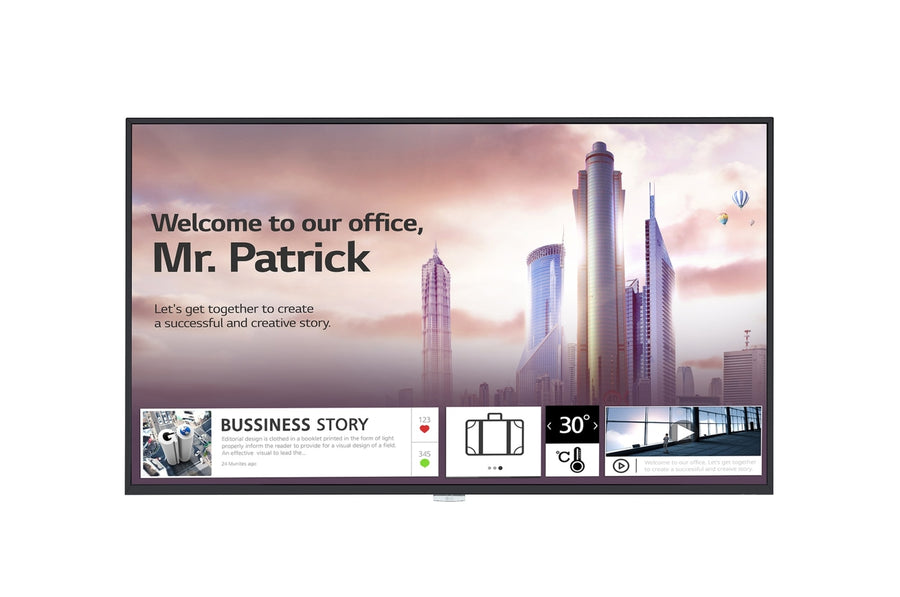

LG 43-inch 4K UHD Digital Signage Display – 43UH5F-H
The LG 43UH5F-H is a 43-inch 4K UHD high haze signage display with an IPS panel, 500 nits brightness and 24/7 operation. It has built-in Wi-Fi and Bluetooth, and it suits lobbies, retail and public spaces. Procure.ae supplies the LG 43UH5F-H across the UAE, with quotes, delivery and installation available.
The LG 43UH5F-H, also listed as 43UH5F-H.AMAD, 43UH5F-H.AMID and 43UH5F-H.AMND, is a 43-inch signage display with a 3840 x 2160 IPS panel. It has 500 nits typical brightness, a 1,100:1 contrast ratio and 1,000,000:1 dynamic contrast. The panel is listed at a 60 Hz refresh rate, 178 x 178 degree viewing angles and 8 ms response time (G to G). It runs webOS 4.1 with 8 GB of internal eMMC storage. Smart energy saving mode is listed at 60 W.
The 43UH5F-H suits lobbies, retail floors and offices where 4K signage runs in portrait or landscape. It works with SuperSign CMS, SuperSign Control+, SuperSign WB and Mobile CMS, and it is OPS-type compatible through a piggyback module. Connections cover three HDMI inputs, DisplayPort in and out, DVI-D in, an RJ-45 LAN input, RS-232C in and out, and a USB 2.0 port. It mounts on a 200 x 200 mm VESA pattern.
Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (typical)
Type
Digital Signage Display
- 4K UHD IPS panel
- 500 nits brightness
- Built-in Wi-Fi and Bluetooth
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS panel
3840 x 2160 native resolution in a 16:9 format.
02
500 nits brightness
500 nits typical with 1,100:1 contrast and 1,000,000:1 dynamic contrast.
03
Built-in Wi-Fi and Bluetooth
Wi-Fi and Bluetooth are built in, with 8 GB of internal storage.
04
webOS 4.1
Runs webOS 4.1 as its operating system.
05
Multi-input connectivity
Three HDMI inputs, DisplayPort in and out, DVI-D in and USB 2.0.
06
SuperSign and Crestron support
SuperSign CMS and Control+ are listed, along with Crestron Connected and Cisco certification.
07
Multi-screen layouts
4-way PBP, PIP and a tile mode setting.
08
Face-down tilt
Up to 30 degrees, under listed temperature and humidity conditions.
Specifications
36 specificationsGeneral
Key FeaturesSuperSign CMS and Control+, Mobile CMS, Crestron Connected, Cisco certification, 4-way PBP and PIP, tile mode setting, screen share, Connected Care
Model43UH5F-H
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick start guide, HDMI cable, regulation book, phone to RS-232C gender
Display
Aspect Ratio16:9
Bezel Size8.4 mm (sides), 14.4 mm (bottom)
Brightness500 nits (typical)
Color GamutBT.709 95%
Contrast Ratio1,100:1
OrientationPortrait and landscape
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size43 inch
Viewing Angle178° (H) x 178° (V)
Performance
Operating SystemwebOS 4.1
Storage8 GB internal (eMMC)
Audio
Dynamic Range1,000,000:1
Speaker Output10 W x 2, built-in
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotPiggyback OPS-type compatible (OPS not built in)
PortsHDMI in × 3, DisplayPort in and out, DVI-D in, RJ-45 LAN in, RS-232C in/out, IR in, USB 2.0 Type A × 1, audio in and out
Wi-FiBuilt-in
Power
Power Consumption60 W (smart energy saving)
Power SourceBuilt-in power supply
Physical
Dimensions962.5 x 568.0 x 39.9 mm (display only)
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
TiltFace-down, max 30°
VESA Mount200 x 200 mm
Weight11.2 kg (display only), 11.8 kg with stand
Compliance
CertificationsCB, NRTL, FCC Class A, CE, KC, ErP, Energy Star
IP RatingIP5X
Downloads
Manufacturer documents for the LG 43-inch 4K UHD Digital Signage Display – 43UH5F-H — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the 43UH5F-H have built-in Wi-Fi?
Yes. The manufacturer lists built-in Wi-Fi and Bluetooth, along with webRTC, screen share and network-ready operation. Confirm the network setup with your IT team before installation, and check the Wi-Fi coverage at the mounting position.
Can the 43UH5F-H be used in a video wall?
Yes. The manufacturer lists a tile mode setting for building a video wall, along with 4-way picture-by-picture and picture-in-picture modes. Procure.ae can advise on the controller setup for your wall.
What connections does the 43UH5F-H have?
It has three HDMI inputs, DisplayPort in and out, a DVI-D input, an RJ-45 LAN input, RS-232C in and out, an IR input and a USB 2.0 Type A port. Audio in and out are also listed.
Can the 43UH5F-H be wall mounted, and what tilt is supported?
Yes. It has a 200 x 200 mm VESA standard mount interface. The display measures 962.5 x 568.0 x 39.9 mm and weighs 11.2 kg without the stand. Face-down tilt is listed at up to 30 degrees under set temperature and humidity conditions.
