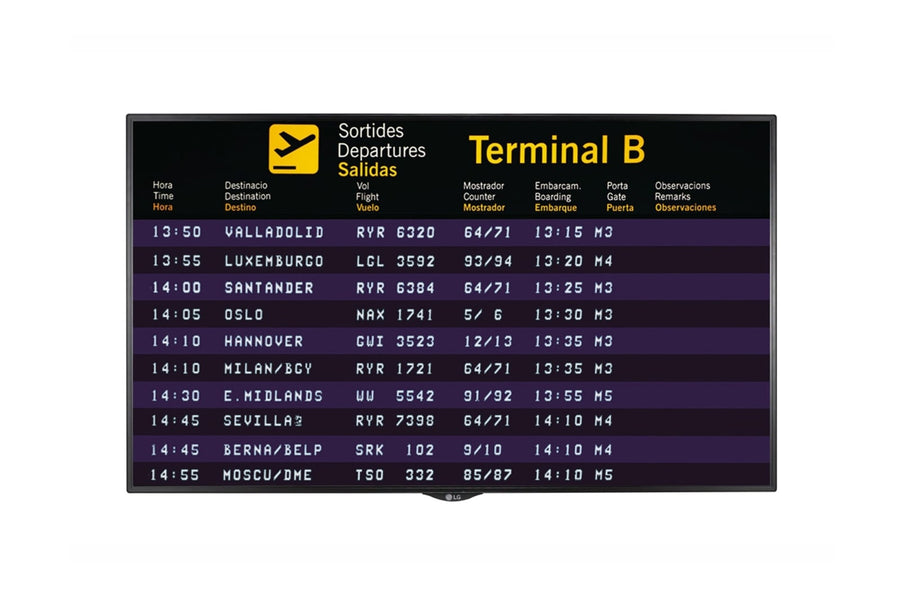

LG 42-inch FHD Digital Signage Display – 42SH7DB
The LG 42SH7DB is a 42-inch Full HD (1920 x 1080) digital signage display rated at 700 nits, with DisplayPort, DVI and analog RGB inputs. It has a VESA 400 x 400 mm mount interface and supports SuperSign-c and SuperSign-w lite software. Procure.ae can confirm its availability in the UAE.
The 42SH7DB is a 42-inch Full HD signage display with a 700 nits brightness rating, intended for busy public spaces where text must stay legible. It has DisplayPort, DVI and analog RGB inputs and a DisplayPort output for passing the signal on. Control is available over RS-232C and RJ45, and an IR receiver is supplied. The display can take an OPS module or an external media player, including the MP500 and MP700.
The display suits lobbies, corridors and retail floors that use information or promotional loops. It uses a 400 x 400 mm VESA mount interface and has a 7.4 mm bezel. SuperSign-c and SuperSign-w lite software support content management. The manufacturer lists this model as discontinued, so buyers should confirm availability with Procure.ae before specifying it.
Screen Size
42 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits
Type
Digital Signage Display
- 700 nits brightness
- Full HD resolution
- OPS and media player support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
700 nits brightness
rated for legible text and images in busy public spaces.
02
Full HD resolution
1920 x 1080 native resolution on a 42-inch panel.
03
OPS and media player support
OPS type compatible and attachable to the MP500 or MP700.
04
Multiple inputs
DisplayPort, DVI, analog RGB and USB connections.
05
RS-232C and RJ45 control
external control over serial and network ports, with an IR receiver.
06
VESA mounting
400 x 400 mm mount interface with a 7.4 mm bezel.
07
SuperSign software
SuperSign-c and SuperSign-w lite for content and control.
Specifications
14 specificationsGeneral
ControlsRS-232C, RJ45, IR receiver, optional pixel sensor
Key FeaturesFull HD, 700 nits brightness, OPS compatible, external media player support, SuperSign-c and SuperSign-w lite, RS-232C and RJ45 control
Model42SH7DB
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick start guide, RGB cable, regulation book, phone to RS-232C gender adapter, IR receiver
Display
Bezel Size7.4 mm
Brightness700 nits
Resolution1920 x 1080 (Full HD)
Screen Size42 inch
Connectivity
OPS SlotOPS type compatible
PortsDisplayPort in × 1, DisplayPort out × 1, DVI × 1, Analog RGB × 1, USB × 1, audio out, external speaker out (L/R), RS-232C in and out, RJ45 control
Physical
Dimensions949 x 555 x 32 mm
VESA Mount400 x 400 mm
Weight12.5 kg
Questions
Can’t find your answer? Ask on WhatsApp
What brightness does the LG 42SH7DB provide?
The manufacturer rates the 42SH7DB at 700 nits (cd/m²) brightness. The specifications do not list a contrast ratio, so compare the 700-nit rating with other displays for the ambient light in your space.
Can the LG 42SH7DB connect to a media player?
Yes. It has an external media player attachment option, and the manufacturer lists the MP500 and MP700 as compatible media players. It is also OPS type compatible. The OPS type compatibility and external media player attachment are listed separately, so either route is available.
Which inputs does the LG 42SH7DB have?
It has DisplayPort, DVI and analog RGB inputs, a DisplayPort output, a USB port, and an audio output with external speaker outputs (L/R). The manufacturer's specifications do not list an HDMI input.
Can the LG 42SH7DB be controlled from a central system?
Yes. It supports RS-232C control, RJ45 external control and an RS-232C output port. An IR receiver is included and an optional pixel sensor is listed. The RJ45 port supports network control, and the RS-232C port uses a phone-jack type connector.
How is the LG 42SH7DB mounted?
It uses a VESA 400 x 400 mm mount interface and has a 7.4 mm bezel on all sides. The display head weighs 12.5 kg. The manufacturer lists the bezel as 7.4 mm on the top, bottom, left and right.
