LGMeeting Room SolutionsSKU 32SM5KB

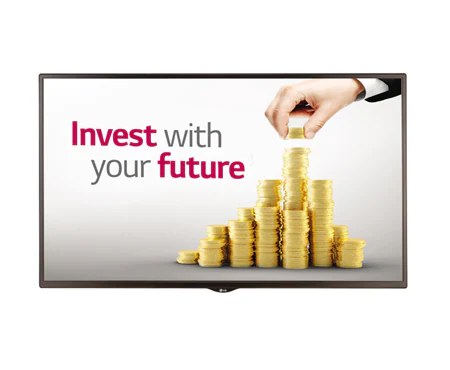

LG 32-inch Full HD Standard Signage Display – 32SM5KB
The LG 32SM5KB (32SM5KB-B.AMA) is a 32-inch Full HD standard signage display rated at 400 cd/m², with DisplayPort, DVI-D and RGB inputs and RS-232C and RJ45 control ports. It suits shops, offices and reception areas that need compact commercial signage. Procure.ae, an authorised LG reseller in Dubai, supplies the 32SM5KB across the UAE.
The 32SM5KB has a 1,920 x 1,080 (Full HD) panel with a brightness of 400 cd/m². The bezel measures 11.9 mm at the top, 12.4 mm on the left and right, and 15.5 mm at the bottom. Inputs include one DisplayPort (HDCP 1.3), one DVI-D (HDCP 2.2) and one analog RGB, and a DisplayPort output can feed a second screen. A USB 3.0 port and an SDHC or full-size SD card slot are also fitted.
The manufacturer's specifications list OPS type compatibility and state that an external media player cannot be attached to this model, unlike the 43-inch and larger SM5KB models, which list MP500/MP700 support. LG SuperSign-w lite and SuperSign-c content software are both listed. RS-232C in and out, RJ45 and a pixel sensor connection provide external control. The display uses a 200 x 200 mm VESA pattern, weighs 5.4 kg, and its owner's manual covers wall mounting and portrait layout.
Screen Size
32 inch
Resolution
1920 x 1080 (Full HD)
Brightness
400 nits
Type
Standard Signage Display
- Full HD Panel
- Brightness
- Video Inputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD Panel
1,920 x 1,080 resolution on a 32-inch screen.
02
Brightness
rated at 400 cd/m² for indoor commercial spaces.
03
Video Inputs
DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB, with an audio input shared by RGB and DVI.
04
DisplayPort Output
one DP out (SST, DP 1.2a) for connecting another display.
05
External Control
RS-232C in and out, RJ45 and pixel sensor connections.
06
USB and SD
one USB 3.0 port and one SDHC / full-size SD card slot.
07
Content Software
SuperSign-w lite and SuperSign-c are listed as supported.
08
Compact Mounting
200 x 200 mm VESA interface and a 5.4 kg head weight.
Specifications
25 specificationsGeneral
CompatibilitySuperSign-w lite, SuperSign-c
Key Features32-inch Full HD, 400 nits, DisplayPort and DVI-D inputs, DisplayPort output, RS-232C and RJ45 control, USB 3.0, SD card slot, OPS compatible
Model32SM5KB
TypeStandard Signage Display
What's in the BoxRemote control (2 batteries), power cord, quick start guide, RGB cable, regulation book, phone-to-RS-232C gender, memory cover
Display
Aspect Ratio16:9
Bezel Size11.9 mm (top), 12.4 mm (left/right), 15.5 mm (bottom)
Brightness400 nits
OrientationLandscape or portrait
Resolution1920 x 1080 (Full HD)
Screen Size32 inch
Audio
Audio InAudio In × 1 (RGB/DVI)
Audio OutAudio Out × 1
DisplayPortDisplayPort In × 1 (HDCP 1.3), DisplayPort Out × 1 (SST, DP 1.2a)
Connectivity
EthernetRJ45 × 1 (external control)
OPS SlotOPS type compatible
PortsDisplayPort In × 1, DVI-D In × 1, RGB In × 1, DisplayPort Out × 1, Audio In/Out × 1 each, USB 3.0 × 1, SD card × 1, RJ45 × 1, RS-232C In/Out
SD Card SlotSDHC / full-size SD × 1
Serial PortRS-232C In × 1, RS-232C Out × 1
USB PortsUSB 3.0 × 1
VGA InputAnalog RGB × 1
Physical
Dimensions729.4 x 428.9 x 55.5 mm
MountingWall mount or stand
VESA Mount200 x 200 mm
Weight5.4 kg (head)
Downloads
Manufacturer documents for the LG 32-inch Full HD Standard Signage Display – 32SM5KB — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the LG 32SM5KB have?
The LG 32SM5KB has a 32-inch panel with a resolution of 1,920 x 1,080 (Full HD) and a brightness of 400 cd/m². The bezel is 11.9 mm at the top, 12.4 mm on the left and right, and 15.5 mm at the bottom. Overall dimensions are 729.4 x 428.9 x 55.5 mm.
Which video inputs does the 32SM5KB support?
It has one DisplayPort input (HDCP 1.3), one DVI-D input (HDCP 2.2) and one analog RGB input, plus an audio input shared by RGB and DVI. The manufacturer's specifications do not list an HDMI input. A DisplayPort output (SST, DP 1.2a) and an audio output are also fitted.
Can the 32SM5KB be controlled remotely?
Yes. It provides RS-232C in and out, an RJ45 port and a pixel sensor connection for external control. LG SuperSign-w lite and SuperSign-c content software are both listed as supported. Procure.ae can arrange installation and setup across the UAE.
What VESA mount does the 32SM5KB use?
The 32SM5KB uses a 200 x 200 mm VESA mount interface and has a head weight of 5.4 kg. Its owner's manual covers wall installation and portrait layout. Procure.ae can arrange installation of the display in offices, shops and public venues across the UAE.
Does the 32SM5KB support an external media player or OPS?
It is listed as OPS type compatible. The manufacturer's specifications state that an external media player cannot be attached to this model, whereas the larger SM5KB sizes list MP500/MP700 support. Check the player requirement with Procure.ae before ordering.
