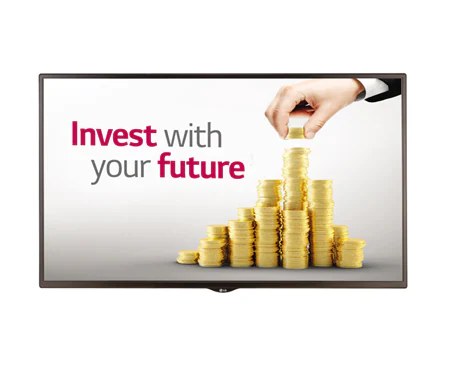

LG 32-inch Full HD Standard Signage Display – 32SM5KB

LG 32-inch Full HD Standard Signage Display – 32SM5KB

The LG 32SM5KB (32SM5KB-B.AMA) is a 32-inch Full HD standard signage display rated at 400 cd/m², with DisplayPort, DVI-D and RGB inputs and RS-232C and RJ45 control ports. It suits shops, offices and reception areas that need compact commercial signage. Procure.ae, an authorised LG reseller in Dubai, supplies the 32SM5KB across the UAE.

The 32SM5KB has a 1,920 x 1,080 (Full HD) panel with a brightness of 400 cd/m². The bezel measures 11.9 mm at the top, 12.4 mm on the left and right, and 15.5 mm at the bottom. Inputs include one DisplayPort (HDCP 1.3), one DVI-D (HDCP 2.2) and one analog RGB, and a DisplayPort output can feed a second screen. A USB 3.0 port and an SDHC or full-size SD card slot are also fitted.

The manufacturer's specifications list OPS type compatibility and state that an external media player cannot be attached to this model, unlike the 43-inch and larger SM5KB models, which list MP500/MP700 support. LG SuperSign-w lite and SuperSign-c content software are both listed. RS-232C in and out, RJ45 and a pixel sensor connection provide external control. The display uses a 200 x 200 mm VESA pattern, weighs 5.4 kg, and its owner's manual covers wall mounting and portrait layout.

Screen Size
32 inch
Resolution
1920 x 1080 (Full HD)
Brightness
400 nits
Type
Standard Signage Display
Weight
5.4 kg (head)

Key features

01
Full HD Panel
1,920 x 1,080 resolution on a 32-inch screen.
02
Brightness
rated at 400 cd/m² for indoor commercial spaces.
03
Video Inputs
DisplayPort (HDCP 1.3), DVI-D (HDCP 2.2) and analog RGB, with an audio input shared by RGB and DVI.
04
DisplayPort Output
one DP out (SST, DP 1.2a) for connecting another display.
05
External Control
RS-232C in and out, RJ45 and pixel sensor connections.
06
USB and SD
one USB 3.0 port and one SDHC / full-size SD card slot.
07
Content Software
SuperSign-w lite and SuperSign-c are listed as supported.
08
Compact Mounting
200 x 200 mm VESA interface and a 5.4 kg head weight.

Specifications

General
CompatibilitySuperSign-w lite, SuperSign-c
Key Features32-inch Full HD, 400 nits, DisplayPort and DVI-D inputs, DisplayPort output, RS-232C and RJ45 control, USB 3.0, SD card slot, OPS compatible
Model32SM5KB
TypeStandard Signage Display
What's in the BoxRemote control (2 batteries), power cord, quick start guide, RGB cable, regulation book, phone-to-RS-232C gender, memory cover
Display
Aspect Ratio16:9
Bezel Size11.9 mm (top), 12.4 mm (left/right), 15.5 mm (bottom)
Brightness400 nits
OrientationLandscape or portrait
Resolution1920 x 1080 (Full HD)
Screen Size32 inch
Audio
Audio InAudio In × 1 (RGB/DVI)
Audio OutAudio Out × 1
DisplayPortDisplayPort In × 1 (HDCP 1.3), DisplayPort Out × 1 (SST, DP 1.2a)
Connectivity
EthernetRJ45 × 1 (external control)
OPS SlotOPS type compatible
PortsDisplayPort In × 1, DVI-D In × 1, RGB In × 1, DisplayPort Out × 1, Audio In/Out × 1 each, USB 3.0 × 1, SD card × 1, RJ45 × 1, RS-232C In/Out
SD Card SlotSDHC / full-size SD × 1
Serial PortRS-232C In × 1, RS-232C Out × 1
USB PortsUSB 3.0 × 1
VGA InputAnalog RGB × 1
Physical
Dimensions729.4 x 428.9 x 55.5 mm
MountingWall mount or stand
VESA Mount200 x 200 mm
Weight5.4 kg (head)
