Jabra PanaCast Control Touch Controller – 8510-237

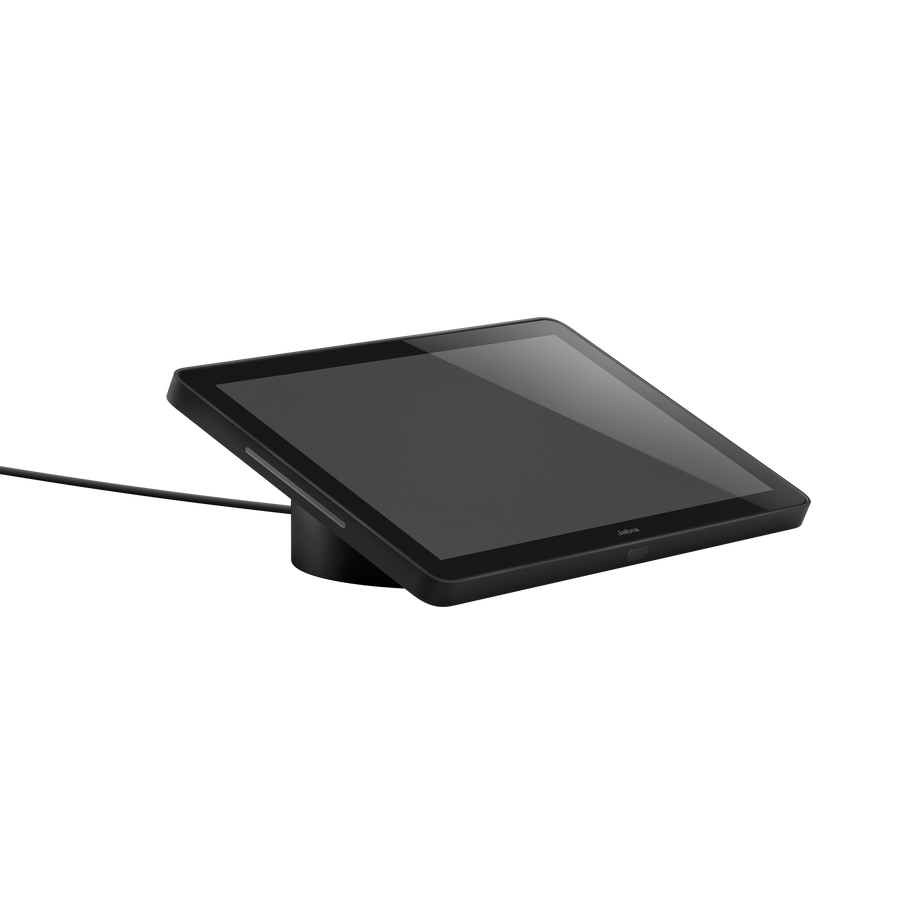

The Jabra PanaCast Control (8510-237) is a 10.1-inch touchscreen controller for meeting rooms. It has a 1920 x 1200 display with 10-point multi-touch and supports Microsoft Teams Rooms for Android and Zoom Rooms. It connects over a single PoE Ethernet cable and supports one-touch meeting join. Procure.ae supplies it across the UAE.

The 10.1-inch capacitive touchscreen uses an LCD panel with LED backlighting at 1920 x 1200 resolution. It supports 10-point multi-touch and tap-touch access to call controls and administrative menus. A PIR motion sensor wakes the system when someone enters the room, so the controller is ready for meetings. The unit also includes an anti-fingerprint, anti-glare coating. The control unit weighs 958 g.

The controller connects through a single Ethernet cable that carries both power and data, and the PoE injector supplies the power. Connectivity covers Bluetooth 5.1, Wi-Fi and USB-C. The unit can be managed remotely through the Jabra WebConsole over HTTPS and through cloud admin portals for Microsoft Teams and Zoom. Procure.ae supplies the Jabra PanaCast Control across the UAE and the wider Middle East and Africa, with delivery and installation available.

Screen Size
10.1 inch
Resolution
1920 x 1200
Touch Technology
PCAP
Type
Video Conferencing Touch Controller
  • One-touch meeting join
  • PIR motion sensor
  • 10-point touch
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
One-touch meeting join
Joins a meeting from the touchscreen with one touch.
02
PIR motion sensor
Wakes the system automatically when someone enters the room.
03
10-point touch
A 10.1-inch display with 10-point multi-touch capacitive input.
04
Single-cable PoE
Powered over Ethernet to IEEE 802.3af through the included PoE injector.
05
Remote management
Managed through the Jabra WebConsole over HTTPS, with log retrieval via the web console.
06
Security features
Kensington lock, secure boot, Android verified boot and vendor lock.

Specifications

24 specifications
General
CompatibilityMicrosoft Teams Rooms for Android, Zoom Rooms
Key FeaturesOne-touch meeting join, PIR motion sensor, PoE single-cable connection, 10-point touch, web console remote management, log retrieval
ModelPanaCast Control
TypeVideo Conferencing Touch Controller
What's in the BoxPanaCast Control touch controller, PoE power injector, 2 Ethernet cables (4.57 m), 1 regional power cable, protective bag
Display
Aspect Ratio16:10
Display TypeLCD with LED backlight
Resolution1920 x 1200
Screen Size10.1 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
Performance
Storage Conditions-20 to 60 °C
Connectivity
BluetoothBluetooth 5.1
ConnectivityBluetooth 5.1, Wi-Fi, Ethernet (RJ45)
EthernetRJ45
PoEIEEE 802.3af (PoE)
USB-C PortsUSB-C
Power
Power SourcePower over Ethernet via included PoE injector
Physical
Dimensions248 x 85 x 156 mm
Operating Humidity15% to 80% RH
Operating Temperature5 to 35 °C
Weight958 g
Compliance
CertificationsMicrosoft Teams Rooms, Zoom Rooms
Security FeaturesKensington lock, secure boot, Android verified boot, vendor lock

Questions

Can’t find your answer? Ask on WhatsApp

What is the Jabra PanaCast Control?
It is a 10.1-inch touchscreen controller for video conferencing rooms. It supports Microsoft Teams Rooms for Android and Zoom Rooms, and it is powered over Ethernet through the included PoE injector.
Does the PanaCast Control need a separate power adapter?
No, it does not use a separate power adapter. It is powered over Ethernet to IEEE 802.3af, either from a PoE-enabled network or the included PoE injector, and the box includes one regional power cable for the injector.
Which platforms does the PanaCast Control support?
It supports Microsoft Teams Rooms for Android and Zoom Rooms, as listed in its certifications. Remote device management is available through the Jabra WebConsole and the Microsoft Teams Admin Center and Zoom Device Management portals.
