JabraMeeting Room SolutionsSKU PanaCast 50 Room System
Jabra PanaCast 50 Video Conferencing Room System – 8601-331

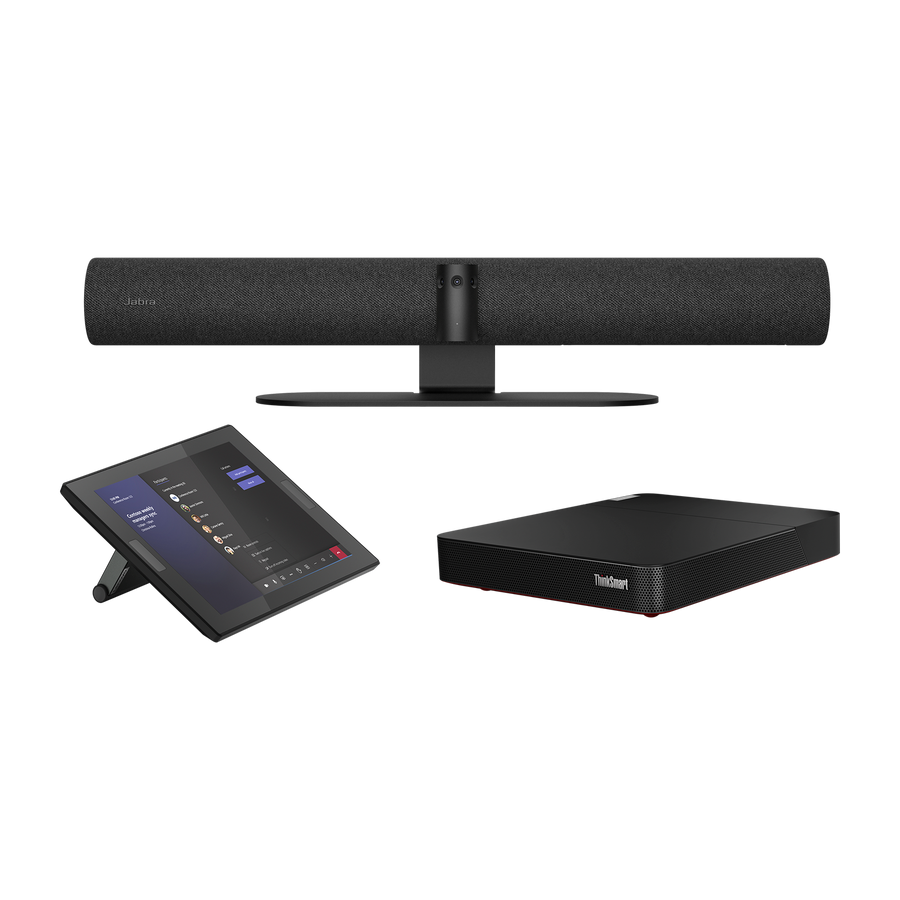

The Jabra PanaCast 50 Room System (8601-331) is a video conferencing system that pairs the PanaCast 50 camera array with Lenovo ThinkSmart Core and Controller. Three 13 MP cameras provide panoramic 4K video, and eight beamforming microphones capture voices across the room. It is certified for Microsoft Teams Rooms and Zoom Rooms. Procure.ae supplies it across the UAE.
Three 13-megapixel cameras form a multi-camera array with a 180° horizontal and 54° vertical field of view, producing 3840 x 1080 panoramic 4K video at 30 fps. Intelligent Zoom and Virtual Director help frame the picture, and Vivid HDR is included. Eight beamforming microphones and four speakers provide full-duplex audio, with automatic speaker detection and integrated PeopleCount. Digital zoom reaches up to 6x without loss.
The manufacturer lists this system under codes 8601-331 and 8601-431. The room computer is Lenovo ThinkSmart Core with an 11th Gen Intel Core vPro processor and Intel Iris Xe graphics. Dynamic Composition needs a USB 3.0 connection and UC clients that support the NV12 format. Procure.ae supplies the PanaCast 50 Room System across the UAE and the wider Middle East and Africa, with delivery, installation and free training.
Resolution
3840 x 1080 (Panoramic 4K)
Type
Video Conferencing Room System
Weight
9.9 to 10.0 kg (depends on regional...
- Panoramic 4K video
- Wide field of view
- Intelligent Zoom
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Panoramic 4K video
Three 13-megapixel cameras provide 3840 x 1080 panoramic 4K video at 30 fps.
02
Wide field of view
The camera array has a 180° horizontal and 54° vertical field of view.
03
Intelligent Zoom
Intelligent Zoom and Virtual Director frame the picture, with up to 6x lossless digital zoom.
04
Beamforming audio
Eight beamforming microphones and four speakers provide full-duplex audio.
05
Automatic speaker detection
Detects the active speaker automatically.
06
Whiteboard content camera
Whiteboard sharing through a content camera, plus manual PTZ control.
07
Intel-based room computer
Lenovo ThinkSmart Core with 11th Gen Intel Core vPro and Intel Iris Xe graphics.
Specifications
27 specificationsGeneral
CompatibilityMicrosoft Teams Rooms, Zoom Rooms
Key FeaturesPanoramic 4K video, Intelligent Zoom, Dynamic Composition, Virtual Director, Vivid HDR, automatic speaker detection, PeopleCount, whiteboard content camera
ModelPanaCast 50 Room System
TypeVideo Conferencing Room System
What's in the BoxPanaCast 50 camera, wall mount, 2 m USB-C to USB-A cable; Lenovo ThinkSmart Core, ThinkSmart Controller, power adapter, mounting bracket, 10 m USB-C cable
Display
Camera3 panoramic cameras, 13 MP each
Resolution3840 x 1080 (Panoramic 4K)
Viewing Angle180° horizontal, 54° vertical
ZoomUp to 6x lossless digital zoom
Performance
GraphicsIntel Iris Xe
Processor11th Gen Intel Core vPro (Lenovo ThinkSmart Core)
Storage Conditions-20 to 60 °C
Audio
Frequency ResponseSpeakers 80 Hz to 20 kHz; microphones 100 Hz to 8 kHz
Microphone8 beamforming microphones
Microphone Type8-microphone beamforming array
Sensitivity-37 dBFS
Speaker Configuration4 speakers: 2 x 50 mm woofers, 2 x 20 mm tweeters
Connectivity
BluetoothBluetooth Low Energy (remote control and Sound+ access)
ConnectivityUSB-A, USB-C, Ethernet (RJ45)
EthernetRJ45
USB PortsUSB 2.0 and USB 3.0
Physical
MountingWall mount included
Operating Temperature5 to 35 °C
Shipping Dimensions165 x 698 x 550 mm
Weight9.9 to 10.0 kg (depends on regional plug)
Compliance
CertificationsMicrosoft Teams Rooms, Microsoft Intelligent Camera Experience, Zoom Rooms
Warranty3 years
Downloads
Manufacturer documents for the Jabra PanaCast 50 Video Conferencing Room System – 8601-331 — datasheets, manuals, drawings and certificates.
- Datasheet – PanaCast 50 Room System
- Datasheet – PanaCast 50 Room System
- User manual – PanaCast
- User manual – PanaCast
- User manual – PanaCast
- User manual – PanaCast
- User manual – PanaCast
- User manual – PanaCast
- User manual – PanaCast (Arabic)
- User manual – PanaCast (Arabic)
- User manual – PanaCast (Arabic)
- User manual – PanaCast (Arabic)
- Quick start guide – PanaCast
- Network-interfaces-and-services-PanaCast-50-RevA
- Jabra-Video-Solutions-Guide MS-Teams 011125
- Jabra-Video-Solutions-Guide-Zoom-011125 WEB
- Intelligent-Meeting-Space 160724
- EN Multistream-Dynamic-Composition-for-Teams 240524
- EN-PanaCast-50-4K-Camera-190225
- EN-PanaCast-VB-Series-Aux-Out
Questions
Can’t find your answer? Ask on WhatsApp
What is the Jabra PanaCast 50 Room System?
It is a video conferencing room system that combines a PanaCast 50 camera array with Lenovo ThinkSmart Core and Controller. It is designed for small and medium rooms and is preloaded with Microsoft Teams Rooms or Zoom Rooms.
What room size does the PanaCast 50 Room System suit?
The manufacturer describes it for small and medium rooms. The manufacturer's specifications do not state a maximum room size in metres, so confirm the room layout with Procure.ae before ordering.
Does the room system work with Microsoft Teams and Zoom?
Yes, the system is certified for Microsoft Teams Rooms and Zoom Rooms and is preloaded with one of them. The PanaCast 50 is also listed for Microsoft Intelligent Camera Experience.
Does the PanaCast 50 Room System need a USB 3.0 connection?
Yes, for Dynamic Composition, which also requires UC clients that support the NV12 format. The camera supports USB 2.0 and USB 3.0, and the box includes a 2 m USB-C to USB-A cable.
Can I buy the PanaCast 50 Room System in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
