InFocusMeeting Room SolutionsSKU INOPS4

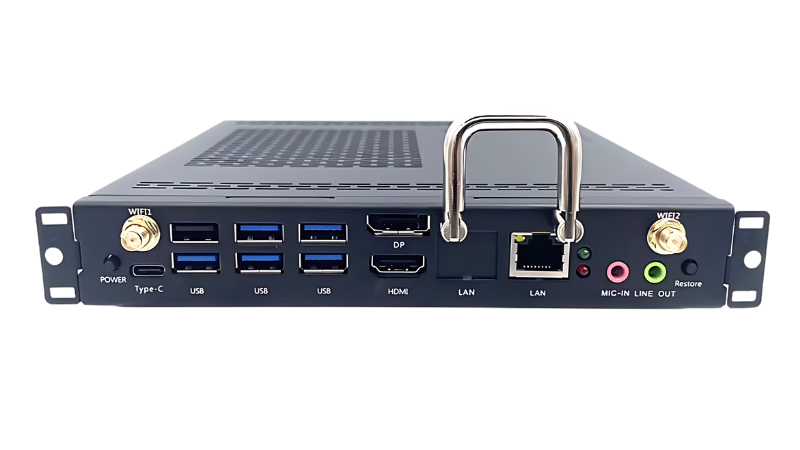

InFocus OPS Slot-In PC Module – INOPS4
The InFocus INOPS4 is a Windows 11 Enterprise OPS slot-in PC module with an Intel Core i7-12650H processor, 16 GB DDR4 RAM and a 512 GB SSD. It fits compatible InFocus JTouch Series 13, 10 and 12 interactive displays, excluding the SP5512, and turns the screen into an all-in-one computer. Procure.ae supplies the INOPS4 across the UAE.
The INOPS4 is an OPS (Open Pluggable Specification) module that connects to compatible InFocus interactive displays through an 80-pin JAE rear connector. It runs Windows 11 Enterprise on an Intel Core i7-12650H processor with Intel UHD Graphics for 12th Gen Intel Processors, 16 GB of DDR4 2666 MHz RAM and a 512 GB SSD. Intel Wi-Fi 6 on 2.4 GHz and 5 GHz, Bluetooth 4.2 and RJ45 Ethernet provide wired and wireless networking.
Type
OPS Slot-In PC Module
Weight
1.2 kg
- Intel Core i7 processor
- 16 GB memory, 512 GB storage
- Windows 11 Enterprise
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Core i7 processor
Intel Core i7-12650H with Intel UHD Graphics for 12th Gen Intel Processors.
02
16 GB memory, 512 GB storage
16 GB DDR4 2666 MHz RAM and a 512 GB SSD.
03
Windows 11 Enterprise
The module runs Windows 11 Enterprise.
04
Wi-Fi 6 and Bluetooth 4.2
Intel Wi-Fi 6 on 2.4 GHz and 5 GHz, plus Bluetooth 4.2.
05
Wired and USB connectivity
RJ45 Ethernet, five USB 3.0 ports, USB 2.0, USB Type-C 2.0 and microphone input.
06
HDMI 2.0 and DisplayPort 1.4
Outputs include HDMI 2.0 (4K/60 Hz) and DisplayPort 1.4.
Specifications
20 specificationsGeneral
CompatibilityInFocus JTouch Series 13, 10 and 12 (excluding SP5512)
ModelINOPS4
TypeOPS Slot-In PC Module
Performance
Operating SystemWindows 11 Enterprise
ProcessorIntel Core i7-12650H
RAM16 GB DDR4 2666 MHz
Storage512 GB SSD
Storage Conditions-40 to 80 °C
Connectivity
BluetoothBluetooth 4.2
EthernetRJ45 (Ethernet)
Inputs5 x USB 3.0, USB 2.0, microphone in, USB Type-C 2.0
OutputsHDMI 2.0 (4K/60 Hz), DisplayPort 1.4, audio out
Wi-FiIntel Wi-Fi 6, 802.11 a/b/g/n/ac/ax, 2.4 GHz / 5 GHz
Power
Power Consumption89 W
Power Source19 V DC, 4.7 A
Standby Power0.5 W
Physical
Dimensions195 x 30 x 180 mm
Operating Humidity10% to 95% RH, non-condensing
Operating Temperature0 to 45 °C
Weight1.2 kg
Downloads
Manufacturer documents for the InFocus OPS Slot-In PC Module – INOPS4 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which InFocus displays is the INOPS4 compatible with?
The INOPS4 is compatible with InFocus JTouch Series 13, 10 and 12 interactive displays, excluding the SP5512. Check your display model before ordering, or ask Procure.ae to confirm compatibility for your exact panel.
Does the INOPS4 run Windows 11?
Yes. The INOPS4 runs Windows 11 Enterprise on an Intel Core i7-12650H processor with 16 GB of DDR4 RAM and a 512 GB SSD, so the display can run Windows applications from the module.
How does the INOPS4 connect to the display?
The module connects through an 80-pin JAE rear connector. The manufacturer lists a 19 V DC, 4.7 A power supply and power consumption of 89 W, with 0.5 W in standby mode.
Can I buy the INOPS4 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
