InFocusInteractive Flat PanelsSKU INF5720 series (INF5720, INF5722)

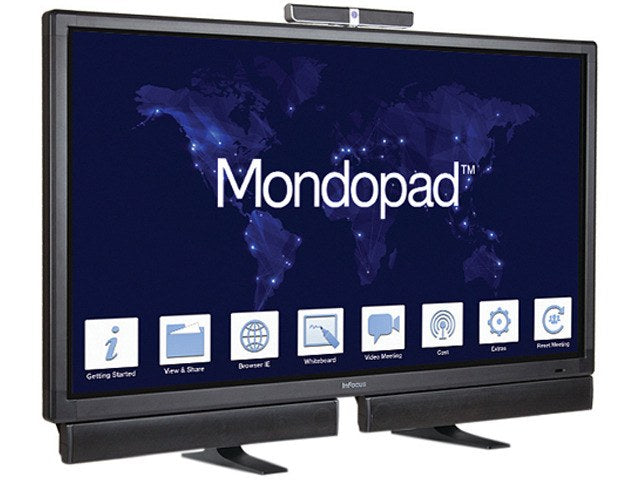

InFocus Mondopad 57.5-inch Interactive Flat Panel – INF5720 / INF5722
The InFocus Mondopad INF5720 / INF5722 is a 57.5-inch interactive flat panel with an embedded Intel Core i7-4770T PC, 8 GB RAM and Windows 7 Pro 64-bit, built for video collaboration. It has a 1920 x 1080 display, 370 nits brightness and a built-in 720p camera. Procure.ae supplies it in the UAE as a discontinued legacy model.
The INF5720 / INF5722 uses a 57.51-inch (1460.68 mm) TFT-LCD panel with a maximum resolution of 1920 x 1080, 370 nits brightness, 5,000:1 dynamic contrast, a 9.5 ms response time and 176° horizontal and vertical viewing angles. Integrated stereo speakers deliver 10 W x 2. The built-in camera captures 1280 x 960 pixels at 720p/30 fps with an 82° diagonal field of view, and two unidirectional microphones pick up the room.
Inputs include two HDMI ports, a PC input, composite video, component RCA, RS-232, two RJ45 ports and seven USB-A ports (four USB 2.0, three USB 3.0). HDMI Out and RCA audio out pass signals to other equipment, and a USB-B port carries touch control. The on-screen menu supports picture-in-picture and is available in English, Spanish and French. One hardware guide covers both the INF5720 and the INF5722.
Screen Size
57.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
370 nits
Type
Interactive Flat Panel (Mondopad)
- Embedded Windows PC
- Full HD display
- Image performance
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Embedded Windows PC
Intel Core i7-4770T processor with Q87 chipset, 8 GB RAM and Windows 7 Pro 64-bit.
02
Full HD display
57.51-inch TFT-LCD panel with 1920 x 1080 maximum resolution and 50/60 Hz refresh rate.
03
Image performance
370 nits brightness, 5,000:1 dynamic contrast ratio and 9.5 ms response time.
04
Built-in camera
1280 x 960 sensor at 720p/30 fps with an F2.0 wide-angle lens and 82° diagonal field of view.
05
Microphones and speakers
Two unidirectional microphones and integrated 10 W x 2 stereo speakers.
06
Wide connectivity
2 x HDMI In, PC In, component, composite, RS-232, 2 x RJ45, 4 x USB 2.0 and 3 x USB 3.0.
07
Picture-in-picture
Shows a second source in corner or side-by-side layouts.
08
Wireless and sensing
802.11n wireless networking and an ambient light sensor.
Specifications
31 specificationsGeneral
Key FeaturesEmbedded Windows PC, Built-in 720p camera, 2 microphones, Picture-in-picture, Ambient light sensor, 802.11n wireless, OSD in English/Spanish/French
ModelINF5720 series (INF5720, INF5722)
TypeInteractive Flat Panel (Mondopad)
Display
Aspect Ratio16:9
Brightness370 nits
Camera1280 x 960 pixels, 720p/30 fps, F2.0 wide-angle lens, 82° diagonal field of view, fixed focus
Contrast Ratio5,000:1 (dynamic)
Panel TechnologyTFT-LCD
Refresh Rate50/60 Hz
Resolution1920 x 1080 (Full HD)
Response Time9.5 ms
Screen Size57.5 inch
Viewing Angle176° (H) / 176° (V)
Performance
Operating SystemWindows 7 Pro 64-bit
ProcessorIntel Core i7-4770T, Q87 chipset
RAM8 GB
Audio
Audio In3.5 mm × 1, RCA L/R × 1, microphone × 1
Audio OutRCA L/R × 1
Microphone2 built-in unidirectional microphones
Speaker Output10 W x 2 (integrated stereo)
Connectivity
EthernetRJ45 × 2
HDMI InputsHDMI In × 2
HDMI OutputsHDMI Out × 1
Input Voltage100–240 V AC, 50/60 Hz, 3.5 A
Serial PortRS-232 × 1
USB PortsUSB-A 2.0 × 4, USB-A 3.0 × 3, USB-B (touch control) × 1
VGA InputPC In × 1
Wi-Fi802.11n
Physical
Dimensions1388.1 x 856.4 x 91.2 mm (without stand)
Weight53.0 kg (without stand)
Compliance
CertificationsFCC Class A
Downloads
Manufacturer documents for the InFocus Mondopad 57.5-inch Interactive Flat Panel – INF5720 / INF5722 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What processor and operating system does the INF5720 / INF5722 use?
It uses an Intel Core i7-4770T processor with a Q87 chipset, 8 GB of RAM and Windows 7 Pro 64-bit. Windows 7 is an older operating system, so confirm software and security requirements with Procure.ae before specifying this legacy model for a project.
What are the screen size and resolution?
The viewable diagonal is 57.51 inches (1460.68 mm) and the maximum resolution is 1920 x 1080. The panel is TFT-LCD with 370 nits brightness, 5,000:1 dynamic contrast, a 9.5 ms response time and 176° viewing angles.
Does it have a built-in camera and microphones?
Yes. The built-in camera captures 1280 x 960 pixels at 720p/30 fps with a fixed-focus F2.0 wide-angle lens and an 82° diagonal field of view. Two built-in unidirectional microphones handle audio, and the camera connects over USB 3.0 or USB 2.0.
Which video and USB ports does it provide?
It provides two HDMI In, one PC In, composite video, component RCA, RS-232, two RJ45, audio in (3.5 mm and RCA L/R), a microphone input, one USB-B for touch control, four USB-A 2.0 and three USB-A 3.0 ports. Outputs are HDMI Out and RCA audio out.
Can I connect external speakers or another display?
Yes. HDMI Out and RCA L/R audio out are provided. The Audio menu Speaker setting lets you run internal and external speakers together or external speakers only, and the guide lists audio sources including the Mondopad PC, HDMI 1, HDMI 2 and Audio 1 and 2.
