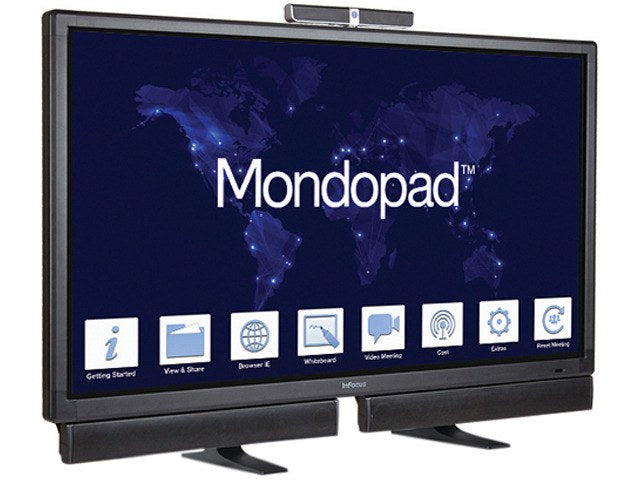

InFocus Mondopad 57.5-inch Interactive Flat Panel – INF5720 / INF5722

InFocus Mondopad 57.5-inch Interactive Flat Panel – INF5720 / INF5722

The InFocus Mondopad INF5720 / INF5722 is a 57.5-inch interactive flat panel with an embedded Intel Core i7-4770T PC, 8 GB RAM and Windows 7 Pro 64-bit, built for video collaboration. It has a 1920 x 1080 display, 370 nits brightness and a built-in 720p camera. Procure.ae supplies it in the UAE as a discontinued legacy model.

The INF5720 / INF5722 uses a 57.51-inch (1460.68 mm) TFT-LCD panel with a maximum resolution of 1920 x 1080, 370 nits brightness, 5,000:1 dynamic contrast, a 9.5 ms response time and 176° horizontal and vertical viewing angles. Integrated stereo speakers deliver 10 W x 2. The built-in camera captures 1280 x 960 pixels at 720p/30 fps with an 82° diagonal field of view, and two unidirectional microphones pick up the room.

Inputs include two HDMI ports, a PC input, composite video, component RCA, RS-232, two RJ45 ports and seven USB-A ports (four USB 2.0, three USB 3.0). HDMI Out and RCA audio out pass signals to other equipment, and a USB-B port carries touch control. The on-screen menu supports picture-in-picture and is available in English, Spanish and French. One hardware guide covers both the INF5720 and the INF5722.

Screen Size
57.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
370 nits
Type
Interactive Flat Panel (Mondopad)
Weight
53.0 kg (without stand)

Key features

01
Embedded Windows PC
Intel Core i7-4770T processor with Q87 chipset, 8 GB RAM and Windows 7 Pro 64-bit.
02
Full HD display
57.51-inch TFT-LCD panel with 1920 x 1080 maximum resolution and 50/60 Hz refresh rate.
03
Image performance
370 nits brightness, 5,000:1 dynamic contrast ratio and 9.5 ms response time.
04
Built-in camera
1280 x 960 sensor at 720p/30 fps with an F2.0 wide-angle lens and 82° diagonal field of view.
05
Microphones and speakers
Two unidirectional microphones and integrated 10 W x 2 stereo speakers.
06
Wide connectivity
2 x HDMI In, PC In, component, composite, RS-232, 2 x RJ45, 4 x USB 2.0 and 3 x USB 3.0.
07
Picture-in-picture
Shows a second source in corner or side-by-side layouts.
08
Wireless and sensing
802.11n wireless networking and an ambient light sensor.

Specifications

General
Key FeaturesEmbedded Windows PC, Built-in 720p camera, 2 microphones, Picture-in-picture, Ambient light sensor, 802.11n wireless, OSD in English/Spanish/French
ModelINF5720 series (INF5720, INF5722)
TypeInteractive Flat Panel (Mondopad)
Display
Aspect Ratio16:9
Brightness370 nits
Camera1280 x 960 pixels, 720p/30 fps, F2.0 wide-angle lens, 82° diagonal field of view, fixed focus
Contrast Ratio5,000:1 (dynamic)
Panel TechnologyTFT-LCD
Refresh Rate50/60 Hz
Resolution1920 x 1080 (Full HD)
Response Time9.5 ms
Screen Size57.5 inch
Viewing Angle176° (H) / 176° (V)
Performance
Operating SystemWindows 7 Pro 64-bit
ProcessorIntel Core i7-4770T, Q87 chipset
RAM8 GB
Audio
Audio In3.5 mm × 1, RCA L/R × 1, microphone × 1
Audio OutRCA L/R × 1
Microphone2 built-in unidirectional microphones
Speaker Output10 W x 2 (integrated stereo)
Connectivity
EthernetRJ45 × 2
HDMI InputsHDMI In × 2
HDMI OutputsHDMI Out × 1
Input Voltage100–240 V AC, 50/60 Hz, 3.5 A
Serial PortRS-232 × 1
USB PortsUSB-A 2.0 × 4, USB-A 3.0 × 3, USB-B (touch control) × 1
VGA InputPC In × 1
Wi-Fi802.11n
Physical
Dimensions1388.1 x 856.4 x 91.2 mm (without stand)
Weight53.0 kg (without stand)
Compliance
CertificationsFCC Class A
