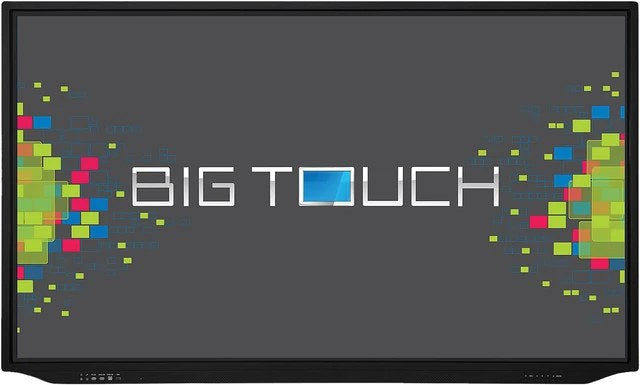

InFocus INF5512AG Interactive Flat Panel with Built-in Android PC
The InFocus INF5512AG is an interactive flat panel with a built-in Android PC, four HDMI inputs, VGA, an HDMI output and RS-232 control. It also has a bay on the back for an optional PC module. Procure.ae supplies it in the UAE for classrooms and meeting rooms.
The INF5512AG combines a touch display with an internal Android PC that has its own LAN port and USB 2.0 and USB 3.0 ports. External sources connect through HDMI 1 to 3, HDMI 4 (which supports HDMI 2.0, HDCP 2.2 and MHL), VGA with a 3.5 mm PC audio input, composite AV-In and component Y/Pb/Pr. A Touch USB Type-B port links the panel to a computer for touch control.
The panel can pass its picture to a second display through the HDMI Out port, which mirrors HDMI inputs 1 to 3. Audio leaves through SPDIF, a 3.5 mm headset jack or composite AV-Out, and RS-232 in and out ports allow remote control from a control system. It is operated with a remote control or a front keypad, and the guide describes an optional PC fitted in the bay on the back of the panel.
Type
Interactive Flat Panel with Built-i...
- Built-in Android PC
- Four HDMI inputs
- HDMI output
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Built-in Android PC
An internal Android PC has its own RJ45 LAN, USB 2.0 and two USB 3.0 ports.
02
Four HDMI inputs
HDMI 1 to 3 plus HDMI 4, which supports HDMI 2.0, HDCP 2.2 and MHL.
03
HDMI output
HDMI Out mirrors the display to a second screen from HDMI inputs 1 to 3.
04
Computer inputs
VGA with a 3.5 mm PC audio input, plus composite and component (Y/Pb/Pr) video.
05
Touch USB port
A Type-B Touch USB port connects the panel to a computer for touch control.
06
Optional PC bay
A bay on the back of the panel holds an optional PC, with a dedicated OPS PC USB port.
07
Audio outputs
SPDIF, a 3.5 mm headset jack that mutes the internal speakers, and composite AV-Out.
08
RS-232 control
RS-232 In and RS-232 Out ports support remote control applications.
Specifications
16 specificationsGeneral
ControlsRemote control, front keypad, RS-232 In/Out
Key FeaturesBuilt-in Android PC, four HDMI inputs, HDMI Out, VGA, OPS PC bay, SPDIF out, RS-232 In/Out, remote and keypad control
ModelINF5512AG
TypeInteractive Flat Panel with Built-in Android PC
Performance
Operating SystemAndroid (built-in PC)
Audio
Audio InRCA L/R × 1, 3.5 mm PC audio × 1
Audio OutSPDIF × 1, 3.5 mm headset × 1, composite AV-Out × 1
Connectivity
EthernetRJ45 LAN × 1 (for the Android PC)
HDMI InputsHDMI × 4 (HDMI 4 supports HDMI 2.0 / HDCP 2.2 and MHL)
HDMI OutputsHDMI Out × 1 (mirrors HDMI 1 to 3)
InputsHDMI × 4, VGA × 1, composite AV-In × 1, component Y/Pb/Pr × 1, RCA L/R audio × 1, PC audio 3.5 mm × 1
OPS SlotOptional PC bay on back of panel (OPS PC USB port)
Serial PortRS-232 In × 1, RS-232 Out × 1
USB PortsUSB 2.0 × 1, USB 3.0 × 2 (to Android PC), Touch USB Type-B × 1, OPS PC USB × 1
VGA InputVGA × 1
Physical
MountingWall or stand mounting with M6 screws
Downloads
Manufacturer documents for the InFocus INF5512AG Interactive Flat Panel with Built-in Android PC — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the InFocus INF5512AG have a built-in computer?
Yes. It has an internal Android PC with its own LAN (RJ45) port, one USB 2.0 port and two USB 3.0 ports. The guide also describes an optional PC that fits in the bay on the back of the panel, connected through the OPS PC USB port.
Which video inputs does the INF5512AG have?
It has four HDMI inputs, with HDMI 4 supporting HDMI 2.0, HDCP 2.2 and MHL, plus VGA with a 3.5 mm PC audio input, composite AV-In and component Y/Pb/Pr. A Touch USB Type-B port provides touch control from a computer.
Can the INF5512AG output to a second display?
Yes. The HDMI Out port connects to the HDMI input of another display and mirrors this display. The guide states that it works only with HDMI inputs 1 to 3, so sources on other inputs will not be passed through.
How is the INF5512AG controlled and integrated?
It is controlled by a remote control and a front keypad. RS-232 In and RS-232 Out ports connect it to a control device for remote control applications, and the internal Android PC joins a network over its RJ45 LAN port.
How should the INF5512AG be mounted?
The guide says two people must move and install the display because it is very heavy, and it must be attached securely to a wall or stand. It specifies M6 screws and properly rated mounting hardware. Procure.ae can advise on suitable mounts and install it in the UAE.
