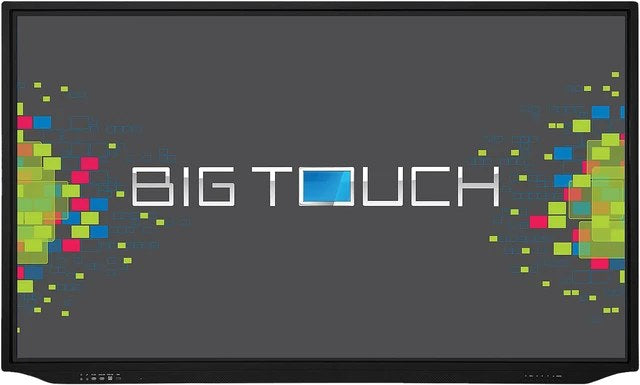

InFocus INF5512AG Interactive Flat Panel with Built-in Android PC
The InFocus INF5512AG is an interactive flat panel with a built-in Android PC, four HDMI inputs, VGA, an HDMI output and RS-232 control. It also has a bay on the back for an optional PC module. Procure.ae supplies it in the UAE for classrooms and meeting rooms.
The INF5512AG combines a touch display with an internal Android PC that has its own LAN port and USB 2.0 and USB 3.0 ports. External sources connect through HDMI 1 to 3, HDMI 4 (which supports HDMI 2.0, HDCP 2.2 and MHL), VGA with a 3.5 mm PC audio input, composite AV-In and component Y/Pb/Pr. A Touch USB Type-B port links the panel to a computer for touch control.
The panel can pass its picture to a second display through the HDMI Out port, which mirrors HDMI inputs 1 to 3. Audio leaves through SPDIF, a 3.5 mm headset jack or composite AV-Out, and RS-232 in and out ports allow remote control from a control system. It is operated with a remote control or a front keypad, and the guide describes an optional PC fitted in the bay on the back of the panel.
Key features
Specifications
| Controls | Remote control, front keypad, RS-232 In/Out |
| Key Features | Built-in Android PC, four HDMI inputs, HDMI Out, VGA, OPS PC bay, SPDIF out, RS-232 In/Out, remote and keypad control |
| Model | INF5512AG |
| Type | Interactive Flat Panel with Built-in Android PC |
| Operating System | Android (built-in PC) |
| Audio In | RCA L/R × 1, 3.5 mm PC audio × 1 |
| Audio Out | SPDIF × 1, 3.5 mm headset × 1, composite AV-Out × 1 |
| Ethernet | RJ45 LAN × 1 (for the Android PC) |
| HDMI Inputs | HDMI × 4 (HDMI 4 supports HDMI 2.0 / HDCP 2.2 and MHL) |
| HDMI Outputs | HDMI Out × 1 (mirrors HDMI 1 to 3) |
| Inputs | HDMI × 4, VGA × 1, composite AV-In × 1, component Y/Pb/Pr × 1, RCA L/R audio × 1, PC audio 3.5 mm × 1 |
| OPS Slot | Optional PC bay on back of panel (OPS PC USB port) |
| Serial Port | RS-232 In × 1, RS-232 Out × 1 |
| USB Ports | USB 2.0 × 1, USB 3.0 × 2 (to Android PC), Touch USB Type-B × 1, OPS PC USB × 1 |
| VGA Input | VGA × 1 |
| Mounting | Wall or stand mounting with M6 screws |
