InFocusInteractive Flat PanelsSKU INF5711

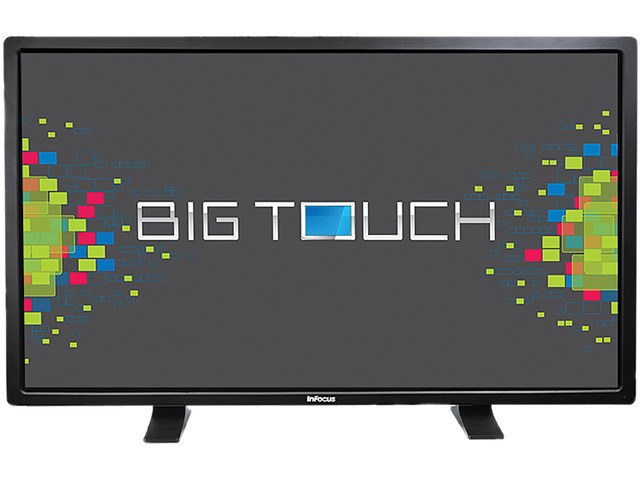

InFocus BigTouch 57.5-inch Full HD Interactive Flat Panel – INF5711
The InFocus BigTouch INF5711 is a 57.5-inch Full HD interactive flat panel with an embedded Intel Core i7-4770T PC, 8 GB RAM and Windows 8.1 Pro. It has 370 nits brightness, two HDMI inputs, an HDMI output, seven USB-A ports and dual RJ45. Procure.ae supplies it in the UAE.
The INF5711 has a 57.51-inch viewable TFT-LCD panel with a maximum resolution of 1920 x 1080, 370 nits brightness, a 5,000:1 dynamic contrast ratio, a 9.5 ms response time and a 176° horizontal and vertical viewing angle. The embedded PC pairs an Intel Core i7-4770T on a Q87 chipset with 8 GB RAM and 802.11n wireless networking. An ambient light sensor and integrated stereo speakers of 7 W x 2 are included.
Inputs cover two HDMI, one PC In, composite video, component RCA, RS-232, 3.5 mm audio, RCA L/R audio, a microphone input, two RJ45 ports, four USB-A 2.0 ports, three USB-A 3.0 ports and a USB-B port for touch control. Outputs are RCA L/R audio and one HDMI. The guide describes the Mondopad software on the embedded PC. Without the stand it measures 1388.1 x 856.4 x 91.2 mm and weighs 53.0 kg.
Screen Size
57.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
370 nits
Type
Interactive Flat Panel with Embedde...
- 57.5-inch Full HD panel
- Embedded Windows PC
- 370 nits brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
57.5-inch Full HD panel
A 57.51-inch viewable TFT-LCD with a maximum resolution of 1920 x 1080.
02
Embedded Windows PC
Intel Core i7-4770T, 8 GB RAM and Windows 8.1 Pro.
03
370 nits brightness
5,000:1 dynamic contrast, 9.5 ms response time and 176° viewing angles.
04
Seven USB-A ports
Four USB-A 2.0 and three USB-A 3.0 ports, plus a USB-B port for touch control.
05
Two HDMI inputs
HDMI plus PC, composite, component and RCA L/R audio inputs, with a microphone input.
06
HDMI and audio outputs
One HDMI output and an RCA L/R audio output.
07
Dual network ports
Two RJ45 ports plus 802.11n wireless networking.
08
Stereo speakers
Integrated 7 W x 2 stereo speakers and an ambient light sensor.
Specifications
30 specificationsGeneral
ControlsRemote control, side keypad, on-screen display menu
Key Features57.5-inch Full HD TFT-LCD, 370 nits, embedded Core i7 PC with 8 GB RAM, Windows 8.1 Pro, 7 USB-A ports, HDMI Out, dual RJ45, 7 W x 2 speakers, ambient light sensor
ModelINF5711
TypeInteractive Flat Panel with Embedded PC
Display
Brightness370 nits
Contrast Ratio5,000:1 (dynamic)
Display TypeTFT-LCD
Panel TechnologyLCD
Refresh Rate50/60 Hz
Resolution1920 x 1080 (Full HD)
Response Time9.5 ms
Screen Size57.5 inch
Viewing Angle176° (H) / 176° (V)
Performance
Operating SystemWindows 8.1 Pro
ProcessorIntel Core i7-4770T, Q87 chipset
RAM8 GB
Audio
Audio In3.5 mm × 1, RCA L/R × 1, microphone In × 1
Audio OutRCA L/R × 1
Speaker Output7 W × 2 (stereo)
Connectivity
EthernetRJ45 × 2
HDMI InputsHDMI × 2
HDMI OutputsHDMI Out × 1
Input Voltage100–240 V AC, 50/60 Hz
InputsHDMI In × 2, PC In × 1, composite video × 1, component RCA × 1, RS-232 × 1, 3.5 mm audio In × 1, RCA L/R audio In × 1, microphone In × 1, RJ45 × 2, USB-B (touch) × 1, USB-A 2.0 × 4, USB-A 3.0 × 3
Serial PortRS-232 × 1
USB PortsUSB-A 2.0 × 4, USB-A 3.0 × 3, USB-B (touch control) × 1
Wi-Fi802.11n
Physical
Dimensions1388.1 x 856.4 x 91.2 mm (without stand)
Weight53.0 kg (without stand)
Compliance
CertificationsFCC Class A
Downloads
Manufacturer documents for the InFocus BigTouch 57.5-inch Full HD Interactive Flat Panel – INF5711 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the InFocus INF5711?
The INF5711 has a 57.51-inch viewable TFT-LCD panel with a maximum resolution of 1920 x 1080 (Full HD). The guide lists 370 nits brightness, a 5,000:1 dynamic contrast ratio, a 9.5 ms response time and 176° horizontal and vertical viewing angles.
Does the INF5711 have a built-in computer?
Yes. It has an embedded PC with an Intel Core i7-4770T processor on a Q87 chipset, 8 GB RAM and Windows 8.1 Pro, plus 802.11n wireless. The Home button on the remote switches the active source back to the embedded PC.
Which ports does the InFocus INF5711 have?
Inputs include two HDMI, PC In, composite, component RCA, RS-232, 3.5 mm audio, RCA L/R audio, a microphone input, two RJ45, four USB-A 2.0, three USB-A 3.0 and one USB-B for touch control. Outputs are RCA L/R audio and one HDMI.
How big and heavy is the INF5711 for installation?
Without the stand it measures 1388.1 x 856.4 x 91.2 mm and weighs 53.0 kg (116.88 lb). Plan for at least two people to handle it and for mounting hardware rated for its weight. Procure.ae can advise on mounts and install it in the UAE.
How do the INF5711 and INF5701 differ?
Both list the same 57.51-inch Full HD panel. The INF5711 runs Windows 8.1 Pro, has 7 W x 2 speakers, an HDMI output, two RJ45 ports and seven USB-A ports, while the INF5701 lists Windows 7 Pro and 10 W x 2 speakers.
