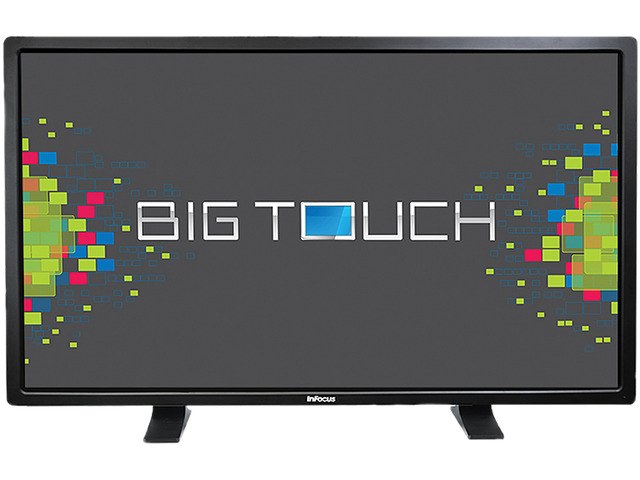

InFocus BigTouch 57.5-inch Full HD Interactive Flat Panel – INF5711

The InFocus BigTouch INF5711 is a 57.5-inch Full HD interactive flat panel with an embedded Intel Core i7-4770T PC, 8 GB RAM and Windows 8.1 Pro. It has 370 nits brightness, two HDMI inputs, an HDMI output, seven USB-A ports and dual RJ45. Procure.ae supplies it in the UAE.

The INF5711 has a 57.51-inch viewable TFT-LCD panel with a maximum resolution of 1920 x 1080, 370 nits brightness, a 5,000:1 dynamic contrast ratio, a 9.5 ms response time and a 176° horizontal and vertical viewing angle. The embedded PC pairs an Intel Core i7-4770T on a Q87 chipset with 8 GB RAM and 802.11n wireless networking. An ambient light sensor and integrated stereo speakers of 7 W x 2 are included.

Inputs cover two HDMI, one PC In, composite video, component RCA, RS-232, 3.5 mm audio, RCA L/R audio, a microphone input, two RJ45 ports, four USB-A 2.0 ports, three USB-A 3.0 ports and a USB-B port for touch control. Outputs are RCA L/R audio and one HDMI. The guide describes the Mondopad software on the embedded PC. Without the stand it measures 1388.1 x 856.4 x 91.2 mm and weighs 53.0 kg.

Screen Size

57.5 inch

Resolution

1920 x 1080 (Full HD)

Brightness

370 nits

Type

Interactive Flat Panel with Embedded PC

Weight

53.0 kg (without stand)

Key features

57.5-inch Full HD panel

A 57.51-inch viewable TFT-LCD with a maximum resolution of 1920 x 1080.

Embedded Windows PC

Intel Core i7-4770T, 8 GB RAM and Windows 8.1 Pro.

370 nits brightness

5,000:1 dynamic contrast, 9.5 ms response time and 176° viewing angles.

Seven USB-A ports

Four USB-A 2.0 and three USB-A 3.0 ports, plus a USB-B port for touch control.

Two HDMI inputs

HDMI plus PC, composite, component and RCA L/R audio inputs, with a microphone input.

HDMI and audio outputs

One HDMI output and an RCA L/R audio output.

Dual network ports

Two RJ45 ports plus 802.11n wireless networking.

Stereo speakers

Integrated 7 W x 2 stereo speakers and an ambient light sensor.

Specifications

General
Controls	Remote control, side keypad, on-screen display menu
Key Features	57.5-inch Full HD TFT-LCD, 370 nits, embedded Core i7 PC with 8 GB RAM, Windows 8.1 Pro, 7 USB-A ports, HDMI Out, dual RJ45, 7 W x 2 speakers, ambient light sensor
Model	INF5711
Type	Interactive Flat Panel with Embedded PC

Display
Brightness	370 nits
Contrast Ratio	5,000:1 (dynamic)
Display Type	TFT-LCD
Panel Technology	LCD
Refresh Rate	50/60 Hz
Resolution	1920 x 1080 (Full HD)
Response Time	9.5 ms
Screen Size	57.5 inch
Viewing Angle	176° (H) / 176° (V)

Performance
Operating System	Windows 8.1 Pro
Processor	Intel Core i7-4770T, Q87 chipset
RAM	8 GB

Audio
Audio In	3.5 mm × 1, RCA L/R × 1, microphone In × 1
Audio Out	RCA L/R × 1
Speaker Output	7 W × 2 (stereo)

Connectivity
Ethernet	RJ45 × 2
HDMI Inputs	HDMI × 2
HDMI Outputs	HDMI Out × 1
Input Voltage	100–240 V AC, 50/60 Hz
Inputs	HDMI In × 2, PC In × 1, composite video × 1, component RCA × 1, RS-232 × 1, 3.5 mm audio In × 1, RCA L/R audio In × 1, microphone In × 1, RJ45 × 2, USB-B (touch) × 1, USB-A 2.0 × 4, USB-A 3.0 × 3
Serial Port	RS-232 × 1
USB Ports	USB-A 2.0 × 4, USB-A 3.0 × 3, USB-B (touch control) × 1
Wi-Fi	802.11n

Physical
Dimensions	1388.1 x 856.4 x 91.2 mm (without stand)
Weight	53.0 kg (without stand)

Compliance
Certifications	FCC Class A
