IIYAMAMeeting Room SolutionsSKU SDM51201BC-1L

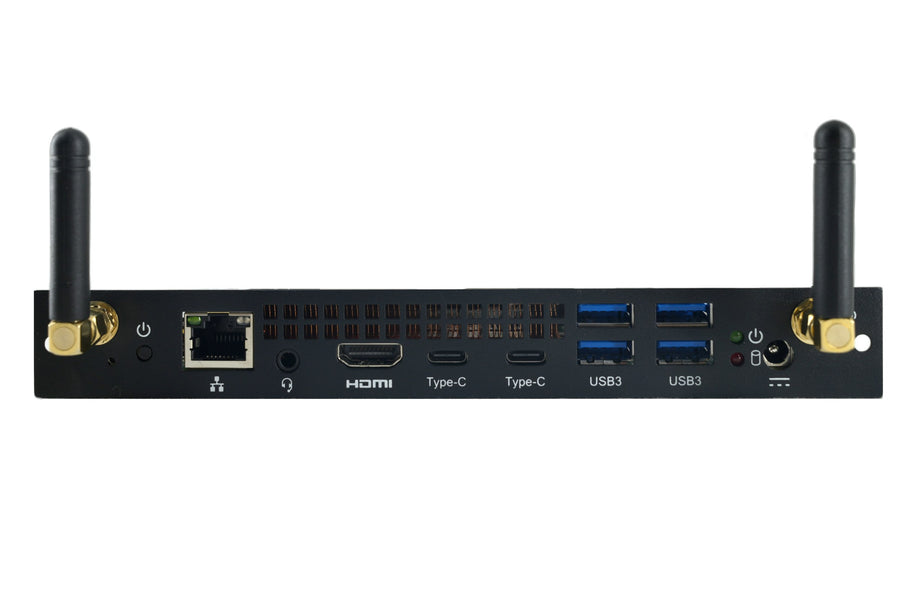

iiyama SDM-L Slot-in Signage Media Player – SDM51201BC-1L
The iiyama SDM51201BC-1L is an SDM-L slot-in signage PC that turns an iiyama large-format display into a standalone Windows system. It has an Intel Core i5-12450H processor, 8 GB of RAM, a 256 GB M.2 SSD and Windows 11 IoT Enterprise. Procure.ae is an authorised reseller of iiyama and supplies the SDM51201BC-1L across the UAE.
The SDM51201BC-1L runs an Intel Core i5-12450H processor with integrated UHD Graphics and 8 GB of DDR4 3200 MHz memory, expandable to 32 GB. Storage is a 256 GB M.2 NVMe PCIe SSD. Video output comes through two USB-C ports with DP 1.4 Alt Mode and one HDMI 2.0 port, all at 4K and 60 Hz. Wi-Fi 6E and Bluetooth 5.3 are integrated, and a 10/100/1000 Mbps RJ45 port provides wired Ethernet.
The PC suits signage networks that need Windows applications rather than an Android player. It supports TPM 2.0 encryption, a watchdog timer, four USB 3.2 Gen 1 ports and a microphone input. Power draw is 72 W typical with 0.5 W standby, and the unit measures 195 x 110 x 25 mm and weighs 0.4 kg. For an Android-based player at a smaller size, the IISIGNAGEBOX-1 is the alternative in this range.
Type
Slot-in Signage Media Player
Weight
0.4 kg
- Intel SDM-L form factor
- Windows 11 IoT Enterprise
- Intel Core i5 processor
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel SDM-L form factor
Slot-in PC built for iiyama large-format displays.
02
Windows 11 IoT Enterprise
64-bit operating system with a watchdog timer.
03
Intel Core i5 processor
Core i5-12450H with Intel UHD Graphics for 12th Gen.
04
Memory and storage
8 GB DDR4 expandable to 32 GB, with a 256 GB M.2 SSD.
05
4K video output
Two USB-C ports with DP 1.4 Alt Mode and one HDMI 2.0 port.
06
Wireless connectivity
Intel AX211/AX210 Wi-Fi 6E and Bluetooth 5.3.
07
Hardware security
TPM 2.0 encryption support.
08
Wired networking
RJ45 port at 10/100/1000 Mbps with four USB 3.2 Gen 1 ports.
Specifications
26 specificationsGeneral
Key FeaturesIntel SDM-L form factor, Windows 11 IoT Enterprise, watchdog timer, TPM 2.0 encryption, Wi-Fi 6E and Bluetooth 5.3, 4K output over USB-C and HDMI, 256 GB M.2 SSD, 8 GB RAM
ModelSDM51201BC-1L
TypeSlot-in Signage Media Player
Display
DisplayUp to 4K (3840 x 2160) at 60 Hz
Performance
GraphicsIntel UHD Graphics (12th Gen)
Operating SystemWindows 11 IoT Enterprise (SAC), 64-bit
ProcessorIntel Core i5-12450H
RAM8 GB DDR4 3200 MHz (max 32 GB)
Storage256 GB M.2 SSD
Storage Conditions-20 to 60 °C
Audio
AudioIntegrated HD audio (ALC245), microphone in × 1
Connectivity
BluetoothBluetooth 5.3
Ethernet10/100/1000 Mbps (RJ45, Realtek RTL8111H)
PortsHDMI 2.0 × 1, RJ45 (LAN) × 1, microphone in × 1
USB PortsUSB 3.2 Gen 1 × 4
USB-C PortsUSB-C 3.2 Gen 1 × 2 (DP 1.4 Alt Mode)
Wi-FiIntel AX211/AX210, Wi-Fi 6E
Power
Power Consumption72 W (typical)
Standby Power0.5 W
Physical
Dimensions195 x 110 x 25 mm (L x W x H)
Form FactorIntel SDM-L slot-in PC
Operating Humidity5% to 95% RH
Operating Temperature-5 to 45 °C
Weight0.4 kg
Compliance
CertificationsRoHS, ErP, WEEE, REACH
Security FeaturesTPM 2.0 encryption
Downloads
Manufacturer documents for the iiyama SDM-L Slot-in Signage Media Player – SDM51201BC-1L — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does it fit iiyama large-format displays?
Yes, it is built to turn an iiyama large-format display into a standalone PC. Check the display's slot type before ordering, since the LH9252UWS-B1AG and TE5513A-B2AG list an Intel OPS 80-pin slot.
Can it run Windows applications on a signage display?
Yes. It runs Windows 11 IoT Enterprise (SAC), 64-bit, so Windows applications run locally on the PC. It also supports TPM 2.0 encryption and includes a watchdog timer. It also has a microphone input and Intel AX211/AX210 wireless.
How much memory and storage does it have?
It has 8 GB of DDR4 3200 MHz memory, which can be expanded to a maximum of 32 GB, and a 256 GB M.2 SSD. The SSD is an NVMe PCIe drive, and the memory supports the 3200 MHz speed.
Does it support 4K video output?
Yes. The PC outputs 4K at 60 Hz through two USB-C ports with DP 1.4 Alt Mode and through one HDMI 2.0 port. Both USB-C ports carry the signal at 4K and 60 Hz, and the HDMI port matches that output.
