IIYAMAInteractive Flat PanelsSKU TN6505A-B1AG

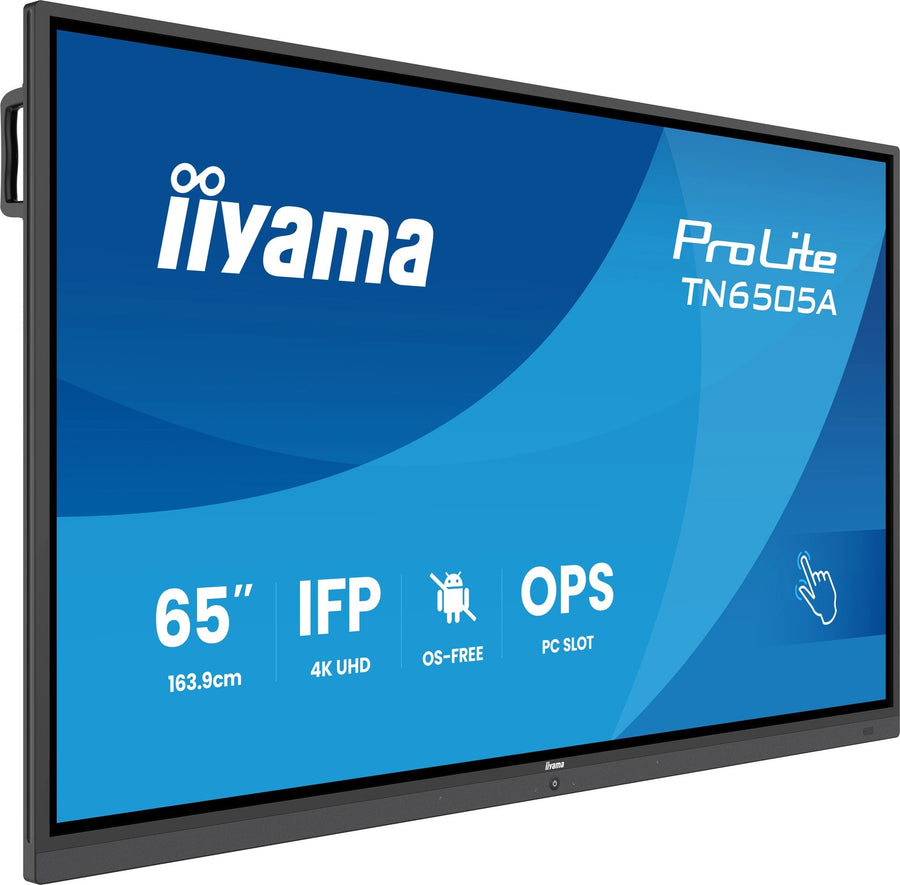

iiyama ProLite 65-inch 4K Interactive Flat Panel – TN6505A-B1AG
The iiyama TN6505A-B1AG is a 65-inch 4K UHD interactive flat panel with no operating system, so IT teams keep full control of software. It has 40-point infrared touch and built-in annotation. It suits banks, courts, universities and boardrooms. Procure.ae supplies the iiyama TN6505A-B1AG across the UAE.
The TN6505A-B1AG has a 3840 x 2160 IPS panel with 450 nits typical brightness, 1,200:1 static contrast and 5 ms response time. DeepContrast-IR+ infrared touch supports 40 touch points, palm rejection and ±1 mm accuracy. Built-in annotation lets presenters write over any on-screen content with a pen in real time. The anti-glare, anti-bacterial glass has 7H hardness, and two 20 W speakers with a 20 W subwoofer are included.
With no operating system, the display works as a plug-in screen for laptops, PCs and an Intel OPS 80 module in its OPS slot. Inputs include two HDMI ports with CEC/ARC, DisplayPort, USB-C with 65 W Power Delivery and VGA. RS-232c and IR loop-through control, plus two RJ45 LAN ports, support control-system integration. Picture-in-picture and picture-by-picture modes handle two sources. The 600 x 400 mm VESA pattern suits standard wall mounts.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits (typical)
Touch Technology
Infrared (DeepContrast-IR+)
- No operating system
- 40-point infrared touch
- Native 4K UHD
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
No operating system
Runs without a built-in OS, so IT teams control all software and updates.
02
40-point infrared touch
DeepContrast-IR+ touch with 40 touch points, palm rejection and ±1 mm accuracy.
03
Native 4K UHD
3840 x 2160 resolution with 450 nits typical brightness and 1,200:1 static contrast.
04
Built-in annotation
Write over any on-screen content with a pen, in real time, for presentations.
05
OPS slot and USB-C
Intel OPS 80 slot, and a USB-C port with 65 W Power Delivery, DP-Alt and touch.
06
Control and networking
RS-232c and IR loop-through control, with two RJ45 LAN ports (in/out).
07
PiP and PbP modes
PiP and PbP modes show two sources on the screen at once.
08
Anti-bacterial glass
7H glass with an anti-glare, anti-bacterial coating on the panel.
Specifications
23 specificationsGeneral
Key FeaturesNo operating system, 40-point infrared touch, 4K UHD, built-in annotation, OPS slot, PiP and PbP, RS-232c control, anti-bacterial glass
ModelTN6505A-B1AG
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness450 nits (typical)
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size65 inch
Touch Accuracy±1 mm
Touch Points40-point touch
Touch TechnologyInfrared (DeepContrast-IR+)
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemNone (no operating system)
Audio
Speaker Output2 x 20 W, 20 W subwoofer
Connectivity
PortsHDMI In × 2, DisplayPort In × 1, USB-C In × 1, VGA In × 1, RJ45 LAN × 2, RS-232c × 1
Power
Power Consumption146 W (typical)
Physical
Dimensions1489.1 x 911.8 x 118.6 mm
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight41.1 kg (without box)
Compliance
CertificationsCB, CE, TÜV, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 65-inch 4K Interactive Flat Panel – TN6505A-B1AG — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TN6505A-B1AG include an operating system?
No. The TN6505A-B1AG has no operating system, so it works as a display for laptops, PCs and OPS modules. It suits environments where IT must control all software and updates, such as banks, courts and IT departments.
How does the touch system work, and how many touch points does it support?
It uses DeepContrast-IR+ infrared touch with 40 touch points and palm rejection. Touch accuracy is ±1 mm, and the touch interface is USB, which works with Windows and Linux when the connected system supports it.
What are the wall mounting specifications?
The TN6505A-B1AG uses a 600 x 400 mm VESA pattern and includes a wall mount bracket. It weighs 41.1 kg without its box and measures 1489.1 x 911.8 x 118.6 mm, so confirm the wall structure can carry that load.
Which ports does it have for laptops and control systems?
It has two HDMI ports with CEC/ARC, one DisplayPort, one USB-C port with 65 W Power Delivery and DP-Alt, one VGA input, a 3.5 mm audio input, RS-232c control and two RJ45 LAN ports for network connection.
Can it be controlled over a network or by a control system?
Yes. RS-232c and two RJ45 LAN ports (in/out) connect the display to a control system. The IR loop-through output passes remote signals on to other displays in the chain. The display also accepts RS-232c commands for control integration.
Can I buy the TN6505A-B1AG in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
