IIYAMA · TN6505A-B1AG · Interactive Flat Panel

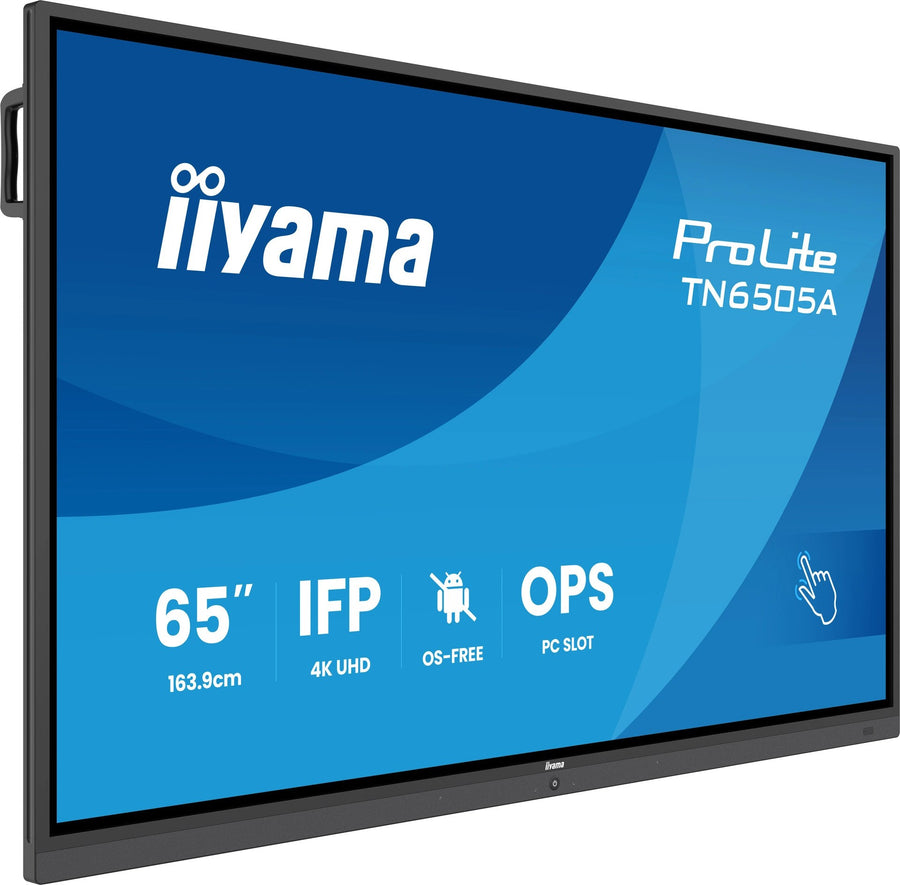

iiyama ProLite 65-inch 4K Interactive Flat Panel – TN6505A-B1AG

iiyama ProLite 65-inch 4K Interactive Flat Panel – TN6505A-B1AG

The iiyama TN6505A-B1AG is a 65-inch 4K UHD interactive flat panel with no operating system, so IT teams keep full control of software. It has 40-point infrared touch and built-in annotation. It suits banks, courts, universities and boardrooms. Procure.ae supplies the iiyama TN6505A-B1AG across the UAE.

The TN6505A-B1AG has a 3840 x 2160 IPS panel with 450 nits typical brightness, 1,200:1 static contrast and 5 ms response time. DeepContrast-IR+ infrared touch supports 40 touch points, palm rejection and ±1 mm accuracy. Built-in annotation lets presenters write over any on-screen content with a pen in real time. The anti-glare, anti-bacterial glass has 7H hardness, and two 20 W speakers with a 20 W subwoofer are included.

With no operating system, the display works as a plug-in screen for laptops, PCs and an Intel OPS 80 module in its OPS slot. Inputs include two HDMI ports with CEC/ARC, DisplayPort, USB-C with 65 W Power Delivery and VGA. RS-232c and IR loop-through control, plus two RJ45 LAN ports, support control-system integration. Picture-in-picture and picture-by-picture modes handle two sources. The 600 x 400 mm VESA pattern suits standard wall mounts.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits (typical)
Touch Technology
Infrared (DeepContrast-IR+)
Type
Interactive Flat Panel
Weight
41.1 kg (without box)

Key features

01
No operating system
Runs without a built-in OS, so IT teams control all software and updates.
02
40-point infrared touch
DeepContrast-IR+ touch with 40 touch points, palm rejection and ±1 mm accuracy.
03
Native 4K UHD
3840 x 2160 resolution with 450 nits typical brightness and 1,200:1 static contrast.
04
Built-in annotation
Write over any on-screen content with a pen, in real time, for presentations.
05
OPS slot and USB-C
Intel OPS 80 slot, and a USB-C port with 65 W Power Delivery, DP-Alt and touch.
06
Control and networking
RS-232c and IR loop-through control, with two RJ45 LAN ports (in/out).
07
PiP and PbP modes
PiP and PbP modes show two sources on the screen at once.
08
Anti-bacterial glass
7H glass with an anti-glare, anti-bacterial coating on the panel.

Specifications

General
Key FeaturesNo operating system, 40-point infrared touch, 4K UHD, built-in annotation, OPS slot, PiP and PbP, RS-232c control, anti-bacterial glass
ModelTN6505A-B1AG
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness450 nits (typical)
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size65 inch
Touch Accuracy±1 mm
Touch Points40-point touch
Touch TechnologyInfrared (DeepContrast-IR+)
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemNone (no operating system)
Audio
Speaker Output2 x 20 W, 20 W subwoofer
Connectivity
PortsHDMI In × 2, DisplayPort In × 1, USB-C In × 1, VGA In × 1, RJ45 LAN × 2, RS-232c × 1
Power
Power Consumption146 W (typical)
Physical
Dimensions1489.1 x 911.8 x 118.6 mm
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight41.1 kg (without box)
Compliance
CertificationsCB, CE, TÜV, EAC, RoHS, ErP, WEEE, REACH, UKCA
