IIYAMADigital SignageSKU LH5075UHS-B2AG

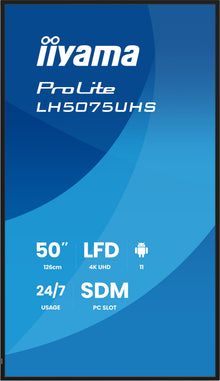

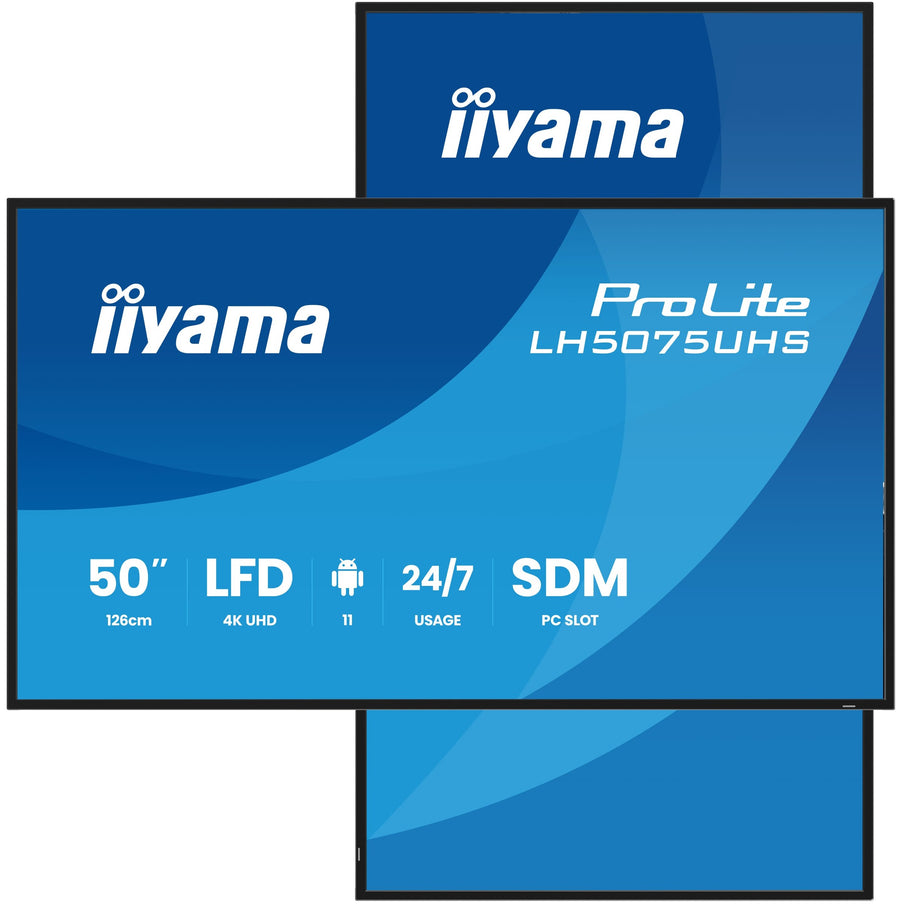

iiyama ProLite 50-inch 4K UHD Digital Signage Display – LH5075UHS-B2AG
The iiyama ProLite LH5075UHS-B2AG is a 50-inch 4K UHD digital signage display with a 500 cd/m² VA panel, Android 11 and a DisplayPort daisy-chain output for video walls. It suits corporate, education and retail spaces that run content 24/7 in landscape or portrait. Procure.ae supplies the LH5075UHS-B2AG across the UAE.
The 3840 x 2160 VA panel delivers 500 cd/m² brightness, 5000:1 static contrast and a 9.5 ms response time, with viewing angles of 178 degrees horizontally and vertically. Android 11 runs on the display, so apps install directly on it. iiSignage² manages content remotely, iiControl handles device management, and iiShare with the EShare app supports wireless screen sharing. FailOver switches to the next available input when the default source has no signal. A removable WiFi module connects the display to your network.
The display takes three HDMI 2.0 inputs and a DisplayPort 1.2 input. Its DisplayPort output uses MST daisy chaining to pass all inputs to a second display, which supports multi-screen layouts. An SDM slot accepts an optional Smart Display Module for an embedded PC option. It mounts on a 400 x 400 mm VESA pattern, its fanless design runs in landscape or portrait, and its internal power supply accepts 100 to 240 V AC.
Screen Size
49.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Professional Digital Signage Display
- Android 11 platform
- Video wall daisy chain
- Optional SDM slot
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 11 platform
install apps directly on the display.
02
Video wall daisy chain
DisplayPort MST output for multi-screen layouts.
03
Optional SDM slot
accepts a Smart Display Module for an embedded PC.
04
FailOver input switching
moves to the next available input when no signal is detected.
05
iiSignage² CMS
remote management of messages and advertising.
06
iiControl and iiShare
device management and wireless screen sharing.
07
Built-in WiFi
removable WiFi module for network content delivery.
08
Fanless 24/7 design
rated for non-stop operation in landscape or portrait.
Specifications
32 specificationsGeneral
ApplicationCorporate, education, retail, hospitality
Key FeaturesAndroid 11, DisplayPort video wall daisy chain, optional SDM slot, FailOver input switching, iiSignage² CMS, iiControl and iiShare, built-in WiFi, fanless 24/7 design
ModelLH5075UHS-B2AG
TypeProfessional Digital Signage Display
Display
Aspect Ratio16:9
Bezel Size13.25 mm (sides), 13.5 mm (top and bottom)
Brightness500 nits
Color Depth8-bit
Color GamutNTSC 72%
Contrast Ratio5,000:1
OrientationLandscape, portrait
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time9.5 ms
Screen Size49.5 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 11
Audio
DisplayPort1 input (v1.2), 1 output (MST daisy chain)
Speaker Output2 x 10 W
Connectivity
HDMI Inputs3 x HDMI 2.0
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 x3, DisplayPort 1.2 in x1, DisplayPort 1.2 out x1 (MST daisy chain), RS-232C in/out, RJ45 LAN x1, IR in x1, IR loop-through x1, USB 2.0 x2, 3.5 mm earphone out
Wi-FiBuilt-in, 802.11ac
Power
Power Consumption112 W (typical)
Physical
ColorBlack
Dimensions1122.7 x 643.6 x 55 mm
Duty Cycle24/7
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight11.8 kg
Compliance
CertificationsCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 50-inch 4K UHD Digital Signage Display – LH5075UHS-B2AG — datasheets, manuals, drawings and certificates.
- Datasheet – LH5075UHS-B2AG
- User manual – LHxx75UHS series
- User manual – LHxx75UHS series
- User manual – LHxx75UHS series
- Drawing – LH5075UHS-B2AG
- Certificate / compliance – LH5075UHS-B2AG
- Energy label – LH5075UHS-B2AG
- Energy label – LH5075UHS-B2AG
- Energy label – LH5075UHS-B2AG
- EShare Network Requirements v7.4-e
- ii iisignage2 whitepaper A4 EN (09.23)
Questions
Can’t find your answer? Ask on WhatsApp
Does the LH5075UHS-B2AG run Android?
Yes. The LH5075UHS-B2AG runs Android 11 with iiSignage², iiControl, iiShare, EShare and FailOver included. Apps can be installed directly on the display. Remote content management is handled by iiSignage², and EShare supports wireless screen sharing.
Can the LH5075UHS-B2AG be used in a video wall?
Yes. Its DisplayPort output uses MST daisy chaining and passes all inputs to a second display, which supports multi-screen layouts. Procure.ae can advise on the video wall layout and arrange installation across the UAE.
What is the SDM slot on the LH5075UHS-B2AG?
The SDM slot accepts an optional Smart Display Module, a plug-in module that gives the display an embedded PC option. The module is available as an option and is not built into the display.
What VESA mount does the LH5075UHS-B2AG use?
It uses a 400 x 400 mm VESA pattern, and a 100 x 100 mm VESA pattern supports the mini PC mount. The display supports landscape and portrait orientation, and Procure.ae can advise on mounting for your site.
