IIYAMADigital SignageSKU S2225AS-B1P

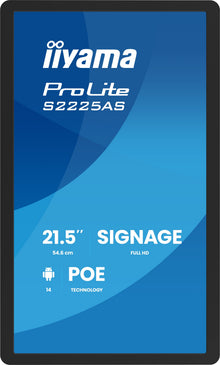

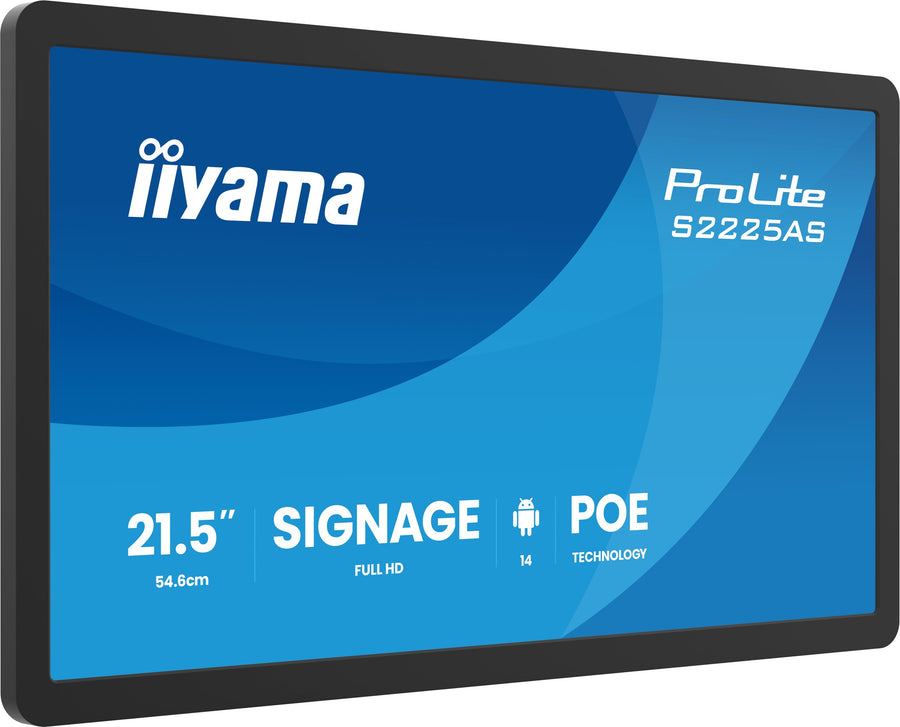

iiyama ProLite 21.5-inch Full HD Android Signage Display – S2225AS-B1P
The iiyama ProLite S2225AS-B1P is a 21.5-inch Full HD Android signage display for shelves, counters, supermarkets and public spaces. It has a 500 nits IPS panel, Power over Ethernet and iiSignage² software on Android 14. Procure.ae is an authorised reseller of iiyama and supplies the S2225AS-B1P across the UAE.
The S2225AS-B1P has a 1920 x 1080 IPS panel with 500 cd/m² brightness, 1,500:1 static contrast and a 14 ms response time (GTG). Its 178° horizontal and vertical viewing angles help content stay visible from the side. Power over Ethernet under IEEE 802.3at lets one RJ45 cable carry both power and data. The unit runs Android 14 with the iiSignage² CMS, Wi-Fi 6, two 5 W speakers and a microphone input.
The housing is 33.5 mm deep and weighs 2.8 kg, which allows placement on shelves, end caps, counters and narrow wall areas. It mounts with a 100 x 100 mm VESA pattern and runs in landscape, portrait or face-up orientation. It is rated for 24/7 operation with a 0 to 40 °C operating range. Compared with the 23.8-inch S2425AS-B1P, this model is smaller and has a higher contrast ratio of 1,500:1 against 1,000:1.
Screen Size
21.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Digital Signage Display
- Android 14 signage platform
- Power over Ethernet
- Full HD IPS panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 14 signage platform
Runs iiSignage² CMS on the display itself.
02
Power over Ethernet
One RJ45 cable for data and power (IEEE 802.3at).
03
Full HD IPS panel
1920 x 1080 at 500 cd/m² with 178° viewing angles.
04
Slim profile
33.5 mm depth and 2.8 kg for shelves, end caps and narrow walls.
05
Orientation options
Landscape, portrait or face-up with a 100 x 100 mm VESA pattern.
06
Wi-Fi 6 connectivity
Built-in 802.11ax, ac, a, b, g and n wireless.
07
Platform compatibility
iiyama states compatibility with this platform for at least five years.
Specifications
30 specificationsGeneral
Key FeaturesAndroid 14 OS, iiSignage² CMS, PoE single-cable installation, Wi-Fi 6, landscape, portrait and face-up orientation, 24/7 operation, platform compatibility for at least 5 years
ModelS2225AS-B1P
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth16.7 million colours
Contrast Ratio1,500:1
OrientationLandscape, portrait, face-up
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time14 ms
Screen Size21.5 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
Storage Conditions-20 to 60 °C
Audio
Speaker Output2 × 5 W
Connectivity
Input VoltageDC 12 V (external power supply)
PortsHDMI × 1, RJ45 (LAN) × 1 with PoE (IEEE 802.3at), microphone × 1
USB PortsUSB 2.0 × 1, USB 3.2 Gen 1 × 1
USB-C PortsUSB-C × 1 (5 Gbps, video output)
Wi-FiWi-Fi 6 (802.11ax/ac/a/b/g/n)
Power
Power Consumption17.5 W (typical)
Physical
Dimensions510.5 x 308.5 x 33.5 mm
Duty Cycle24/7
FinishBlack, matte bezel
Operating Temperature0 to 40 °C
VESA Mount100 x 100 mm
Weight2.8 kg
Compliance
CertificationsCE, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 21.5-inch Full HD Android Signage Display – S2225AS-B1P — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the S2225AS-B1P have?
It has a 1920 x 1080 (Full HD) IPS panel rated at 500 cd/m² brightness, with 1,500:1 static contrast and a 14 ms response time (GTG). The panel is 16:9 and shows 16.7 million colours.
Can I power the S2225AS-B1P over Ethernet?
Yes. The RJ45 port supports Power over Ethernet under IEEE 802.3at, so one cable carries both power and data. The unit also has an external 12 V DC power supply, with 17.5 W typical power use, so either method can be used.
Can it be wall mounted or placed on a shelf?
Yes. It mounts with a 100 x 100 mm VESA pattern and runs in landscape, portrait or face-up orientation. The manufacturer lists installation on shelves, end caps, counters and narrow wall areas, and the 33.5 mm depth suits those spaces.
Does it need a separate media player?
No. The S2225AS-B1P runs Android 14 with the iiSignage² content management system, so content can be loaded and played directly on the display. It also has Wi-Fi 6 and a 10/100/1000 Mbps Ethernet port for the network connection.
Does it support touch input?
No. The listed specifications include no touch input. The manufacturer describes the display as built for content playback where interaction is not required, so it suits messaging rather than touch screens.
