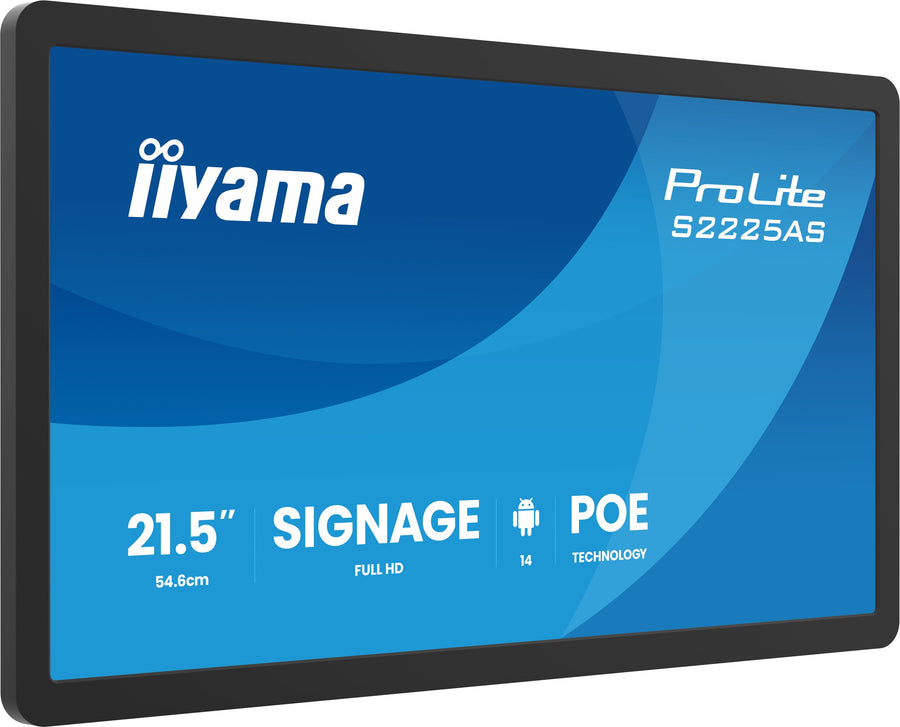

iiyama ProLite 21.5-inch Full HD Android Signage Display – S2225AS-B1P

The iiyama ProLite S2225AS-B1P is a 21.5-inch Full HD Android signage display for shelves, counters, supermarkets and public spaces. It has a 500 nits IPS panel, Power over Ethernet and iiSignage² software on Android 14. Procure.ae is an authorised reseller of iiyama and supplies the S2225AS-B1P across the UAE.

The S2225AS-B1P has a 1920 x 1080 IPS panel with 500 cd/m² brightness, 1,500:1 static contrast and a 14 ms response time (GTG). Its 178° horizontal and vertical viewing angles help content stay visible from the side. Power over Ethernet under IEEE 802.3at lets one RJ45 cable carry both power and data. The unit runs Android 14 with the iiSignage² CMS, Wi-Fi 6, two 5 W speakers and a microphone input.

The housing is 33.5 mm deep and weighs 2.8 kg, which allows placement on shelves, end caps, counters and narrow wall areas. It mounts with a 100 x 100 mm VESA pattern and runs in landscape, portrait or face-up orientation. It is rated for 24/7 operation with a 0 to 40 °C operating range. Compared with the 23.8-inch S2425AS-B1P, this model is smaller and has a higher contrast ratio of 1,500:1 against 1,000:1.

Screen Size

21.5 inch

Resolution

1920 x 1080 (Full HD)

Brightness

500 nits

Type

Digital Signage Display

Weight

2.8 kg

Key features

Android 14 signage platform

Runs iiSignage² CMS on the display itself.

Power over Ethernet

One RJ45 cable for data and power (IEEE 802.3at).

Full HD IPS panel

1920 x 1080 at 500 cd/m² with 178° viewing angles.

Slim profile

33.5 mm depth and 2.8 kg for shelves, end caps and narrow walls.

Orientation options

Landscape, portrait or face-up with a 100 x 100 mm VESA pattern.

Wi-Fi 6 connectivity

Built-in 802.11ax, ac, a, b, g and n wireless.

Platform compatibility

iiyama states compatibility with this platform for at least five years.

Specifications

General
Key Features	Android 14 OS, iiSignage² CMS, PoE single-cable installation, Wi-Fi 6, landscape, portrait and face-up orientation, 24/7 operation, platform compatibility for at least 5 years
Model	S2225AS-B1P
Type	Digital Signage Display

Display
Aspect Ratio	16:9
Brightness	500 nits
Color Depth	16.7 million colours
Contrast Ratio	1,500:1
Orientation	Landscape, portrait, face-up
Panel Technology	IPS
Refresh Rate	60 Hz
Resolution	1920 x 1080 (Full HD)
Response Time	14 ms
Screen Size	21.5 inch
Viewing Angle	178° horizontal / 178° vertical

Performance
Operating System	Android 14
Storage Conditions	-20 to 60 °C

Audio
Speaker Output	2 × 5 W

Connectivity
Input Voltage	DC 12 V (external power supply)
Ports	HDMI × 1, RJ45 (LAN) × 1 with PoE (IEEE 802.3at), microphone × 1
USB Ports	USB 2.0 × 1, USB 3.2 Gen 1 × 1
USB-C Ports	USB-C × 1 (5 Gbps, video output)
Wi-Fi	Wi-Fi 6 (802.11ax/ac/a/b/g/n)

Power
Power Consumption	17.5 W (typical)

Physical
Dimensions	510.5 x 308.5 x 33.5 mm
Duty Cycle	24/7
Finish	Black, matte bezel
Operating Temperature	0 to 40 °C
VESA Mount	100 x 100 mm
Weight	2.8 kg

Compliance
Certifications	CE, EAC, RoHS, ErP, WEEE, REACH, UKCA
