IIYAMADigital SignageSKU TW2223AS-B3P

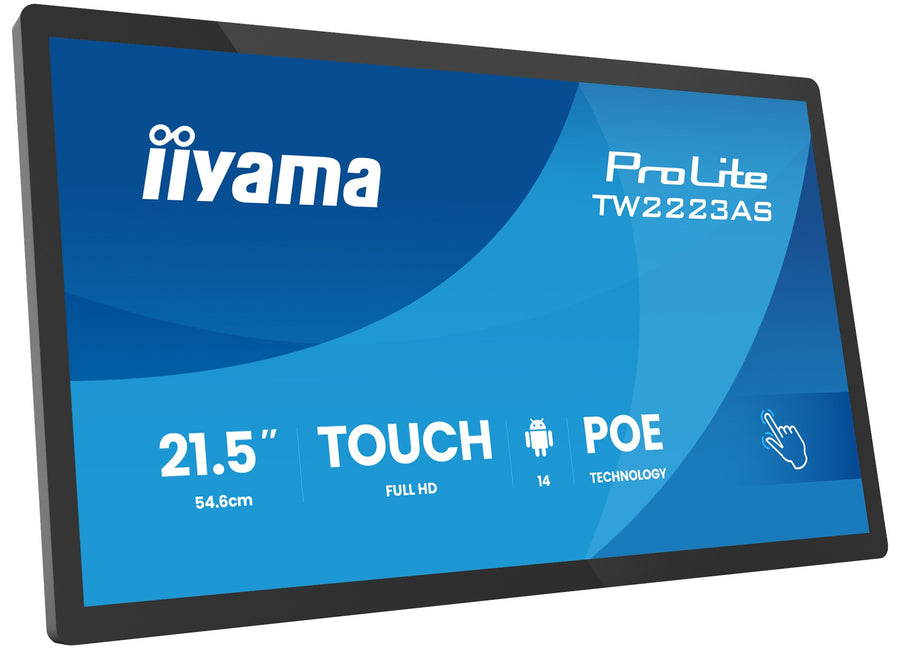

iiyama ProLite 21.5-inch Android Touch Panel PC – TW2223AS-B3P
The iiyama ProLite TW2223AS-B3P is a 21.5-inch Full HD touch panel PC with Android 14 with GMS, 10-point PCAP touch and 60 W Power over Ethernet, built for POS systems, information points and retail shops. It has a 1920 x 1080 IPS display with 500 nits brightness and anti image retention. Procure.ae supplies the TW2223AS-B3P across the UAE.
The 21.5-inch IPS panel runs at 1920 x 1080 with 500 nits brightness, 1,500:1 contrast with touch and 178-degree viewing angles. The PCAP touch layer has 10 touch points with ±2 mm touch accuracy when the integrated OS is used. The RK3576 octa-core processor with 4GB LPDDR4 memory and 32GB eMMC storage runs Android 14 with GMS, so apps can be installed on the device. It has one HDMI input and a USB-C output that carries video and touch for mirror-screen use.
Power over Ethernet (IEEE 802.3bt, 60 W) carries data and power over a single RJ45 cable, which suits areas where many cables would interfere with the environment. The iiSignage² CMS manages content and displays remotely. The unit operates in landscape, portrait or face-up orientation, measures 504.5 x 302 x 32 mm and weighs 3.64 kg without its box.
Screen Size
21.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Touch Technology
PCAP
- Anti image retention
- 10-point PCAP touch
- Android 14 with GMS
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Anti image retention
the panel includes an anti image retention feature.
02
10-point PCAP touch
touch accuracy of ±2 mm across 10 touch points when the integrated OS is used.
03
Android 14 with GMS
pre-installed Android 14 with Google Mobile Services lets you install applications directly on the device.
04
Power over Ethernet (60 W)
IEEE 802.3bt provides power and data through one RJ45 cable.
05
USB-C mirror output
the USB-C output carries video and the touch board function for screen mirroring.
06
iiSignage² CMS support
the iiSignage² content management system controls messages and displays remotely.
07
Protected glass
2.9 mm glass with 6H hardness on a thin-bezel front.
08
24/7 operation
rated for 24/7 non-stop operation in landscape, portrait or face-up orientation.
Specifications
34 specificationsGeneral
Key FeaturesAnti image retention, Power over Ethernet (60 W), 10-point touch, Android 14 with GMS, iiSignage² CMS, 2.9 mm 6H glass, 24/7 operation, USB-C mirror output
ModelTW2223AS-B3P
TypeTouch Panel PC
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,500:1 (with touch)
OrientationLandscape, portrait, face-up
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response Time14 ms
Screen Size21.5 inch
Touch Accuracy±2 mm
Touch Points10-point multi-touch
Touch TechnologyPCAP
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14 with GMS
ProcessorRockchip RK3576 octa-core (4 × Cortex-A53, 4 × Cortex-A72)
RAM4 GB LPDDR4
Storage32 GB eMMC
Audio
MicrophoneBuilt-in × 1
Speaker Output2 × 2 W
Connectivity
BluetoothBluetooth 5.3
HDMI Inputs1 (1920 x 1080 at 60 Hz)
PoEIEEE 802.3bt, 60 W
PortsHDMI in × 1, USB-C × 1 (video output and touch, mirror screen), USB 3.2 Gen 1 × 1, USB 2.0 × 2, RJ45 LAN × 1, 3.5 mm audio jack × 1
Wi-Fi802.11a/b/g/n/ac/ax
Power
Power Consumption15.4 W (typical)
Power SourceDC 12 V external power supply
Physical
Dimensions504.5 x 302 x 32 mm (W x H x D)
Duty Cycle24/7
VESA Mount100 x 100 mm
Weight3.64 kg (without box)
Compliance
CertificationsCE, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 21.5-inch Android Touch Panel PC – TW2223AS-B3P — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TW2223AS-B3P run Android apps?
Yes. It runs Android 14 with GMS on a Rockchip RK3576 octa-core processor with 4GB LPDDR4 memory and 32GB eMMC storage, so applications can be installed directly on the unit. The manufacturer lists Play Store, Gmail, Chrome and iiSignage² among the applications.
Can the TW2223AS-B3P be powered over Ethernet?
Yes. The RJ45 LAN port supports Power over Ethernet to IEEE 802.3bt at up to 60 W, so one cable carries both data and power. The unit also has an external DC 12 V power supply, with typical power usage of 15.4 W and a 1.8 m power cable.
Is the TW2223AS-B3P suitable for POS or information displays?
Yes. The manufacturer positions it for POS systems and information points in retail shops. It adds 10-point touch, a built-in microphone, speakers and Wi-Fi and Bluetooth connectivity to a 1920 x 1080 IPS display with 500 nits brightness.
Does the TW2223AS-B3P support VESA mounting?
Yes. It has a VESA mounting pattern of 100 x 100 mm and operates in landscape, portrait or face-up orientation. It measures 504.5 x 302 x 32 mm and weighs 3.64 kg without its box, so Procure.ae can confirm the most suitable mount for your installation.
