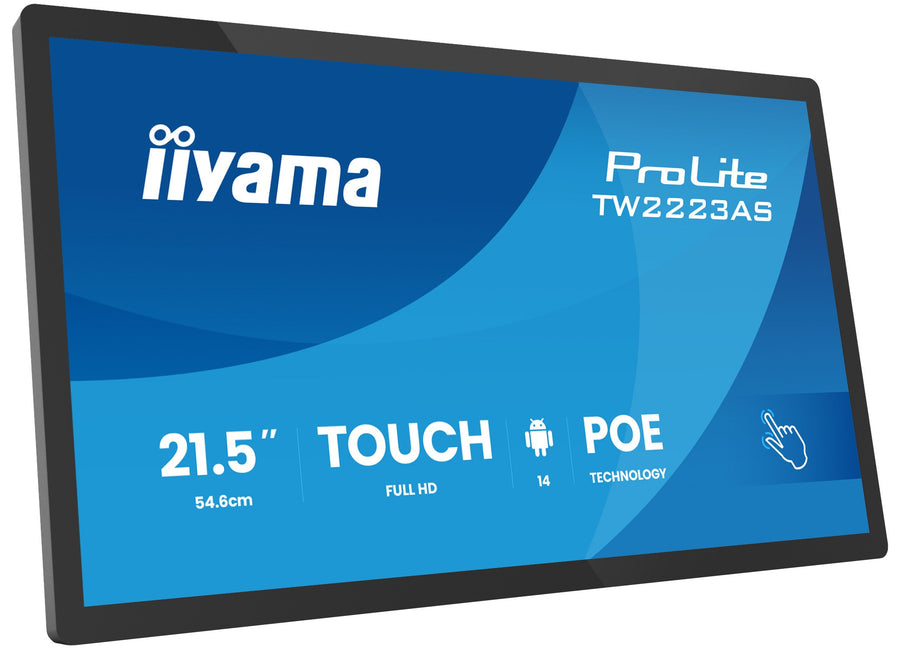

iiyama ProLite 21.5-inch Android Touch Panel PC – TW2223AS-B3P
The iiyama ProLite TW2223AS-B3P is a 21.5-inch Full HD touch panel PC with Android 14 with GMS, 10-point PCAP touch and 60 W Power over Ethernet, built for POS systems, information points and retail shops. It has a 1920 x 1080 IPS display with 500 nits brightness and anti image retention. Procure.ae supplies the TW2223AS-B3P across the UAE.
The 21.5-inch IPS panel runs at 1920 x 1080 with 500 nits brightness, 1,500:1 contrast with touch and 178-degree viewing angles. The PCAP touch layer has 10 touch points with ±2 mm touch accuracy when the integrated OS is used. The RK3576 octa-core processor with 4GB LPDDR4 memory and 32GB eMMC storage runs Android 14 with GMS, so apps can be installed on the device. It has one HDMI input and a USB-C output that carries video and touch for mirror-screen use.
Power over Ethernet (IEEE 802.3bt, 60 W) carries data and power over a single RJ45 cable, which suits areas where many cables would interfere with the environment. The iiSignage² CMS manages content and displays remotely. The unit operates in landscape, portrait or face-up orientation, measures 504.5 x 302 x 32 mm and weighs 3.64 kg without its box.
Key features
Specifications
| Key Features | Anti image retention, Power over Ethernet (60 W), 10-point touch, Android 14 with GMS, iiSignage² CMS, 2.9 mm 6H glass, 24/7 operation, USB-C mirror output |
| Model | TW2223AS-B3P |
| Type | Touch Panel PC |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits |
| Color Depth | 8-bit (16.7 million colours) |
| Contrast Ratio | 1,500:1 (with touch) |
| Orientation | Landscape, portrait, face-up |
| Panel Technology | IPS |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 14 ms |
| Screen Size | 21.5 inch |
| Touch Accuracy | ±2 mm |
| Touch Points | 10-point multi-touch |
| Touch Technology | PCAP |
| Viewing Angle | 178° horizontal / 178° vertical |
| Operating System | Android 14 with GMS |
| Processor | Rockchip RK3576 octa-core (4 × Cortex-A53, 4 × Cortex-A72) |
| RAM | 4 GB LPDDR4 |
| Storage | 32 GB eMMC |
| Microphone | Built-in × 1 |
| Speaker Output | 2 × 2 W |
| Bluetooth | Bluetooth 5.3 |
| HDMI Inputs | 1 (1920 x 1080 at 60 Hz) |
| PoE | IEEE 802.3bt, 60 W |
| Ports | HDMI in × 1, USB-C × 1 (video output and touch, mirror screen), USB 3.2 Gen 1 × 1, USB 2.0 × 2, RJ45 LAN × 1, 3.5 mm audio jack × 1 |
| Wi-Fi | 802.11a/b/g/n/ac/ax |
| Power Consumption | 15.4 W (typical) |
| Power Source | DC 12 V external power supply |
| Dimensions | 504.5 x 302 x 32 mm (W x H x D) |
| Duty Cycle | 24/7 |
| VESA Mount | 100 x 100 mm |
| Weight | 3.64 kg (without box) |
| Certifications | CE, EAC, RoHS, ErP, WEEE, REACH, UKCA |
