IIYAMADigital SignageSKU TW1625LASC-B3PNR

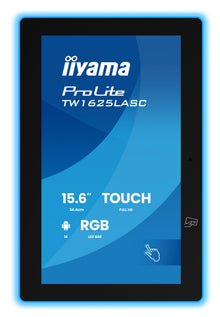

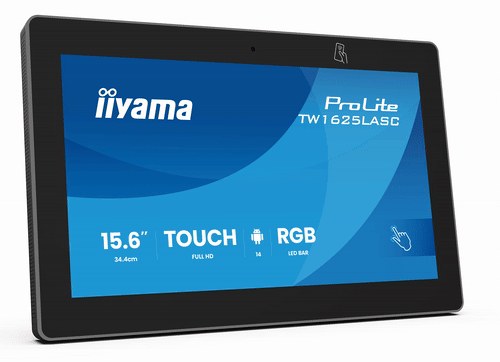

iiyama ProLite 15.6-inch Android Touch Panel PC with NFC – TW1625LASC-B3PNR
The iiyama ProLite TW1625LASC-B3PNR is a 15.6-inch Android touch panel PC with an NFC/RFID reader, an RGB LED availability bar and Power over Ethernet. It suits room booking and check-in in meeting rooms and reception areas, with 10-point optically bonded touch. It runs Android 14 on a 1920 x 1080 IPS display. Procure.ae supplies the TW1625LASC-B3PNR across the UAE.
The 15.6-inch IPS panel runs at 1920 x 1080 with 450 nits panel brightness, 1,000:1 static contrast and 178-degree viewing angles. The optically bonded projective capacitive touch supports 10 touch points when the integrated OS is used and reduces glare. The RK3576 octa-core processor with 4GB DDR4 memory and 32GB eMMC storage runs Android 14, and apps install directly on the device. A built-in 5 MP camera, microphone and two 2 W speakers are included.
The NFC/RFID reader supports contactless interaction with compatible tags or devices, which the manufacturer describes for quick room check-in, employee authentication or starting a presentation. The RGB LED bar shows room availability at a glance and can display a wide range of colours. The iiSignage² content management system manages messages and advertising remotely, and the unit operates in landscape, portrait or face-up orientation.
Screen Size
15.6 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Touch Technology
Optically bonded PCAP
- Optically bonded 10-point touch
- NFC/RFID reader
- RGB LED availability bar
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Optically bonded 10-point touch
PCAP touch supports 10 touch points with reduced glare and protection against humidity.
02
NFC/RFID reader
contactless interaction with compatible tags or devices for check-in and automated actions.
03
RGB LED availability bar
the bezel bar shows room availability and can display a wide range of colours.
04
Power over Ethernet
PoE (IEEE 802.3at, 30 W) provides power and data through one RJ45 cable.
05
Android 14 platform
pre-installed Android 14 lets you install applications directly on the device.
06
Built-in camera and audio
a 5 MP camera, microphone and two 2 W speakers are built in.
07
iiSignage² CMS support
the iiSignage² content management system controls messages and advertising remotely.
08
Flexible orientation
the unit operates in landscape, portrait or face-up orientation with a 75 x 75 mm VESA pattern.
Specifications
33 specificationsGeneral
Key FeaturesNFC/RFID reader, RGB LED availability bar, Power over Ethernet, 10-point touch, optical bonding, 5 MP camera, iiSignage² compatible, Android 14 apps
ModelTW1625LASC-B3PNR
TypeTouch Panel PC
Display
Aspect Ratio16:9
Brightness450 nits
Camera5 MP built-in
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,000:1
OrientationLandscape, portrait, face-up
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response Time20 ms
Screen Size15.6 inch
Touch Points10-point multi-touch
Touch TechnologyOptically bonded PCAP
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorRockchip RK3576 octa-core (4 × Cortex-A53, 4 × Cortex-A72), up to 2.2 GHz
RAM4 GB DDR4
Storage32 GB eMMC
Audio
MicrophoneBuilt-in × 1
Speaker Output2 × 2 W
Connectivity
BluetoothBluetooth 5.3
PoEIEEE 802.3at, 30 W
PortsRJ45 LAN × 1, USB-C × 1, USB 3.2 Gen 1 × 1, USB 2.0 × 1, 3.5 mm audio jack × 1
Wi-Fi802.11a/b/g/n/ax/ac
Power
Power Consumption11 W (typical)
Power SourceDC 12 V external power supply
Physical
Dimensions397 x 256 x 28.5 mm (W x H x D)
Duty Cycle24/7
VESA Mount75 x 75 mm
Weight2 kg (without box)
Compliance
CertificationsCE, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 15.6-inch Android Touch Panel PC with NFC – TW1625LASC-B3PNR — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TW1625LASC-B3PNR have an NFC reader?
Yes. It has an integrated NFC/RFID reader that communicates wirelessly with enabled devices or tags in close proximity. The manufacturer's specifications do not list the supported tag standards, so Procure.ae can confirm compatibility with your access or booking system.
What does the RGB LED bar on the TW1625LASC-B3PNR do?
The RGB LED bar integrated into the bezel shows the availability of rooms at a glance and can display a wide range of colours. The Android application list includes an LED light bar app, so the bar can be controlled from the device.
Can the TW1625LASC-B3PNR be powered over Ethernet?
Yes. The RJ45 LAN port supports Power over Ethernet to IEEE 802.3at at 30 W, so a single cable carries both data and power. The unit also accepts an external DC 12 V power supply, with typical power usage of 11 W.
Does the TW1625LASC-B3PNR support VESA mounting?
Yes. It has a VESA mounting pattern of 75 x 75 mm and operates in landscape, portrait or face-up orientation. It measures 397 x 256 x 28.5 mm and weighs 2 kg without its box, so Procure.ae can confirm the most suitable mount for your installation.
