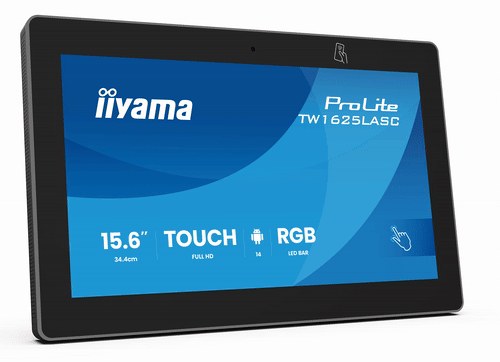

iiyama ProLite 15.6-inch Android Touch Panel PC with NFC – TW1625LASC-B3PNR

iiyama ProLite 15.6-inch Android Touch Panel PC with NFC – TW1625LASC-B3PNR

The iiyama ProLite TW1625LASC-B3PNR is a 15.6-inch Android touch panel PC with an NFC/RFID reader, an RGB LED availability bar and Power over Ethernet. It suits room booking and check-in in meeting rooms and reception areas, with 10-point optically bonded touch. It runs Android 14 on a 1920 x 1080 IPS display. Procure.ae supplies the TW1625LASC-B3PNR across the UAE.

The 15.6-inch IPS panel runs at 1920 x 1080 with 450 nits panel brightness, 1,000:1 static contrast and 178-degree viewing angles. The optically bonded projective capacitive touch supports 10 touch points when the integrated OS is used and reduces glare. The RK3576 octa-core processor with 4GB DDR4 memory and 32GB eMMC storage runs Android 14, and apps install directly on the device. A built-in 5 MP camera, microphone and two 2 W speakers are included.

The NFC/RFID reader supports contactless interaction with compatible tags or devices, which the manufacturer describes for quick room check-in, employee authentication or starting a presentation. The RGB LED bar shows room availability at a glance and can display a wide range of colours. The iiSignage² content management system manages messages and advertising remotely, and the unit operates in landscape, portrait or face-up orientation.

Screen Size
15.6 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Touch Technology
Optically bonded PCAP
Type
Touch Panel PC
Weight
2 kg (without box)

Key features

01
Optically bonded 10-point touch
PCAP touch supports 10 touch points with reduced glare and protection against humidity.
02
NFC/RFID reader
contactless interaction with compatible tags or devices for check-in and automated actions.
03
RGB LED availability bar
the bezel bar shows room availability and can display a wide range of colours.
04
Power over Ethernet
PoE (IEEE 802.3at, 30 W) provides power and data through one RJ45 cable.
05
Android 14 platform
pre-installed Android 14 lets you install applications directly on the device.
06
Built-in camera and audio
a 5 MP camera, microphone and two 2 W speakers are built in.
07
iiSignage² CMS support
the iiSignage² content management system controls messages and advertising remotely.
08
Flexible orientation
the unit operates in landscape, portrait or face-up orientation with a 75 x 75 mm VESA pattern.

Specifications

General
Key FeaturesNFC/RFID reader, RGB LED availability bar, Power over Ethernet, 10-point touch, optical bonding, 5 MP camera, iiSignage² compatible, Android 14 apps
ModelTW1625LASC-B3PNR
TypeTouch Panel PC
Display
Aspect Ratio16:9
Brightness450 nits
Camera5 MP built-in
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,000:1
OrientationLandscape, portrait, face-up
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response Time20 ms
Screen Size15.6 inch
Touch Points10-point multi-touch
Touch TechnologyOptically bonded PCAP
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorRockchip RK3576 octa-core (4 × Cortex-A53, 4 × Cortex-A72), up to 2.2 GHz
RAM4 GB DDR4
Storage32 GB eMMC
Audio
MicrophoneBuilt-in × 1
Speaker Output2 × 2 W
Connectivity
BluetoothBluetooth 5.3
PoEIEEE 802.3at, 30 W
PortsRJ45 LAN × 1, USB-C × 1, USB 3.2 Gen 1 × 1, USB 2.0 × 1, 3.5 mm audio jack × 1
Wi-Fi802.11a/b/g/n/ax/ac
Power
Power Consumption11 W (typical)
Power SourceDC 12 V external power supply
Physical
Dimensions397 x 256 x 28.5 mm (W x H x D)
Duty Cycle24/7
VESA Mount75 x 75 mm
Weight2 kg (without box)
Compliance
CertificationsCE, EAC, RoHS, ErP, WEEE, REACH, UKCA
