IIYAMADigital SignageSKU TW1025LASC-B3PNR

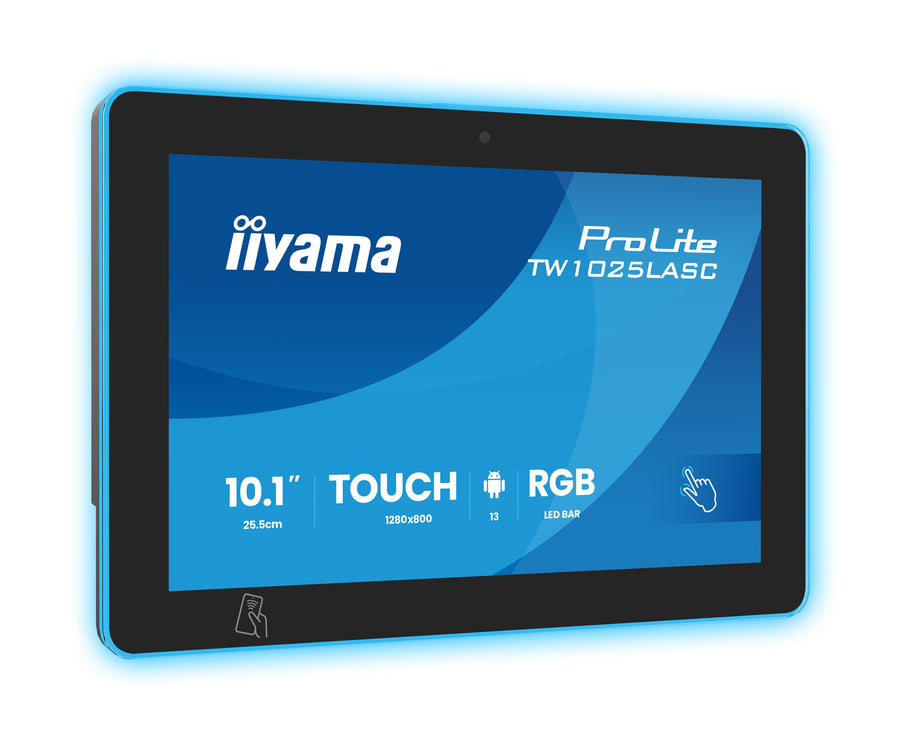

iiyama ProLite 10.1-inch Android Touch Panel PC with NFC – TW1025LASC-B3PNR
The iiyama ProLite TW1025LASC-B3PNR is a 10.1-inch Android touch panel PC with an NFC/RFID reader, an RGB LED status bar and Power over Ethernet. It suits room booking panels in meeting rooms, where the LED bar shows room availability. It has a 10-point touch screen and Android 16. Procure.ae supplies the TW1025LASC-B3PNR across the UAE.
The 10.1-inch IPS panel runs at 1280 x 800 with 450 nits panel brightness, 1,000:1 static contrast and 160-degree viewing angles. The optically bonded projective capacitive touch layer supports 10 touch points when the integrated OS is used, and its bonding reduces light reflection. Android 16 lets you install apps directly on the unit, and the NFC/RFID reader works with enabled devices or tags held nearby. A built-in 5 MP camera, microphone and two 2 W speakers are included.
Power over Ethernet (IEEE 802.3af, 15.4 W) carries data and power over one RJ45 cable, which simplifies installation where many cables would interfere with the environment. The RGB LED bar can show a wide range of colours to indicate room availability at a glance. The iiSignage² content management system manages messages and displays remotely, and the unit operates in landscape, portrait or face-up orientation with a 75 x 75 mm VESA pattern.
Screen Size
10.1 inch
Resolution
1280 x 800 (1 megapixel HD)
Brightness
450 nits
Touch Technology
Optically bonded PCAP
- Optically bonded 10-point touch
- NFC/RFID reader
- RGB LED status bar
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Optically bonded 10-point touch
projected capacitive touch supports 10 touch points with finger, glove or stylus input.
02
NFC/RFID reader
communicates wirelessly with enabled devices or tags held within close proximity.
03
RGB LED status bar
the colour bar shows room availability status and can display a wide range of colours.
04
Power over Ethernet
PoE (IEEE 802.3af, 15.4 W) provides power and data through one RJ45 cable.
05
Android 16 platform
pre-installed Android 16 lets you install applications directly on the device.
06
Built-in camera and audio
a 5 MP camera, microphone and two 2 W speakers are built in.
07
iiSignage² CMS support
the iiSignage² content management system controls messages and displays remotely.
08
Humidity protection
optical bonding protects the display against humidity and moisture build-up.
Specifications
28 specificationsGeneral
Key FeaturesNFC/RFID reader, RGB LED status bar, Power over Ethernet, 10-point touch, optical bonding, 5 MP camera, iiSignage² compatible, Android 16 apps
ModelTW1025LASC-B3PNR
TypeTouch Panel PC
Display
Aspect Ratio16:10
Brightness450 nits
Camera5 MP built-in
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,000:1
OrientationLandscape, portrait, face-up
Panel TechnologyIPS
Resolution1280 x 800 (1 megapixel HD)
Response Time25 ms
Screen Size10.1 inch
Touch Points10-point multi-touch
Touch TechnologyOptically bonded PCAP
Viewing Angle160° horizontal / 160° vertical
Performance
Operating SystemAndroid 16
Audio
MicrophoneBuilt-in × 1
Speaker Output2 × 2 W
Connectivity
PoEIEEE 802.3af, 15.4 W
PortsRJ45 LAN × 1, mini jack audio × 1, USB 3.2 Gen 1 × 1, USB 2.0 × 1, mini USB (OTG) × 1
Power
Power Consumption10 W (typical)
Power SourceDC 12 V external power supply
Physical
Dimensions259.5 x 178.5 x 28 mm (W x H x D)
Duty Cycle24/7
VESA Mount75 x 75 mm
Weight1.1 kg (without box)
Compliance
CertificationsCE, EAC, RoHS, ErP, WEEE, REACH, UKCA
Downloads
Manufacturer documents for the iiyama ProLite 10.1-inch Android Touch Panel PC with NFC – TW1025LASC-B3PNR — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TW1025LASC-B3PNR have an NFC reader for room booking?
Yes. It has an integrated NFC/RFID reader that communicates wirelessly with enabled devices or tags held in close proximity. The manufacturer's specifications do not list the supported tag standards, so Procure.ae can confirm compatibility with your access system.
What does the RGB LED bar on the TW1025LASC-B3PNR do?
The RGB LED bar around the screen indicates room availability status and can display a wide range of colours. It gives an at-a-glance availability signal in booking and reception areas.
Can the TW1025LASC-B3PNR be powered over Ethernet?
Yes. The RJ45 LAN port supports Power over Ethernet to IEEE 802.3af at 15.4 W, so a single cable carries both data and power. The unit also accepts an external DC 12 V power supply, and typical power usage is 10 W.
Does the TW1025LASC-B3PNR support VESA mounting?
Yes. It has a VESA mounting pattern of 75 x 75 mm and operates in landscape, portrait or face-up orientation. Its dimensions are 259.5 x 178.5 x 28 mm, and the manufacturer lists a weight of 1.1 kg without the box.
Can I buy the TW1025LASC-B3PNR in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
