IIYAMA · TW1025LASC-B3PNR · Digital Signage

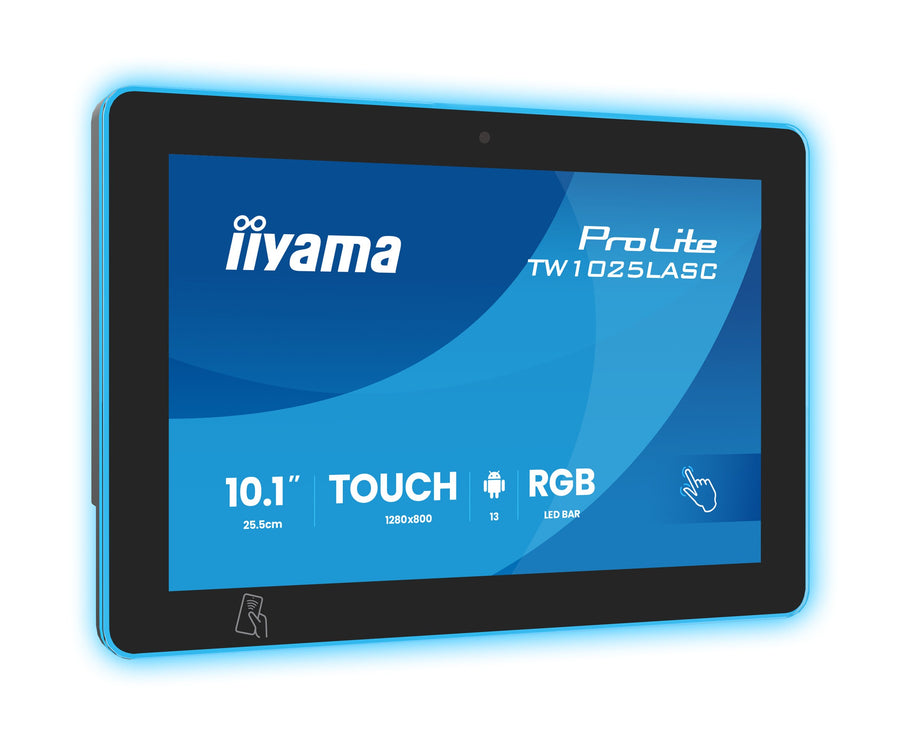

iiyama ProLite 10.1-inch Android Touch Panel PC with NFC – TW1025LASC-B3PNR

iiyama ProLite 10.1-inch Android Touch Panel PC with NFC – TW1025LASC-B3PNR

The iiyama ProLite TW1025LASC-B3PNR is a 10.1-inch Android touch panel PC with an NFC/RFID reader, an RGB LED status bar and Power over Ethernet. It suits room booking panels in meeting rooms, where the LED bar shows room availability. It has a 10-point touch screen and Android 16. Procure.ae supplies the TW1025LASC-B3PNR across the UAE.

The 10.1-inch IPS panel runs at 1280 x 800 with 450 nits panel brightness, 1,000:1 static contrast and 160-degree viewing angles. The optically bonded projective capacitive touch layer supports 10 touch points when the integrated OS is used, and its bonding reduces light reflection. Android 16 lets you install apps directly on the unit, and the NFC/RFID reader works with enabled devices or tags held nearby. A built-in 5 MP camera, microphone and two 2 W speakers are included.

Power over Ethernet (IEEE 802.3af, 15.4 W) carries data and power over one RJ45 cable, which simplifies installation where many cables would interfere with the environment. The RGB LED bar can show a wide range of colours to indicate room availability at a glance. The iiSignage² content management system manages messages and displays remotely, and the unit operates in landscape, portrait or face-up orientation with a 75 x 75 mm VESA pattern.

Screen Size
10.1 inch
Resolution
1280 x 800 (1 megapixel HD)
Brightness
450 nits
Touch Technology
Optically bonded PCAP
Type
Touch Panel PC
Weight
1.1 kg (without box)

Key features

01
Optically bonded 10-point touch
projected capacitive touch supports 10 touch points with finger, glove or stylus input.
02
NFC/RFID reader
communicates wirelessly with enabled devices or tags held within close proximity.
03
RGB LED status bar
the colour bar shows room availability status and can display a wide range of colours.
04
Power over Ethernet
PoE (IEEE 802.3af, 15.4 W) provides power and data through one RJ45 cable.
05
Android 16 platform
pre-installed Android 16 lets you install applications directly on the device.
06
Built-in camera and audio
a 5 MP camera, microphone and two 2 W speakers are built in.
07
iiSignage² CMS support
the iiSignage² content management system controls messages and displays remotely.
08
Humidity protection
optical bonding protects the display against humidity and moisture build-up.

Specifications

General
Key FeaturesNFC/RFID reader, RGB LED status bar, Power over Ethernet, 10-point touch, optical bonding, 5 MP camera, iiSignage² compatible, Android 16 apps
ModelTW1025LASC-B3PNR
TypeTouch Panel PC
Display
Aspect Ratio16:10
Brightness450 nits
Camera5 MP built-in
Color Depth8-bit (16.7 million colours)
Contrast Ratio1,000:1
OrientationLandscape, portrait, face-up
Panel TechnologyIPS
Resolution1280 x 800 (1 megapixel HD)
Response Time25 ms
Screen Size10.1 inch
Touch Points10-point multi-touch
Touch TechnologyOptically bonded PCAP
Viewing Angle160° horizontal / 160° vertical
Performance
Operating SystemAndroid 16
Audio
MicrophoneBuilt-in × 1
Speaker Output2 × 2 W
Connectivity
PoEIEEE 802.3af, 15.4 W
PortsRJ45 LAN × 1, mini jack audio × 1, USB 3.2 Gen 1 × 1, USB 2.0 × 1, mini USB (OTG) × 1
Power
Power Consumption10 W (typical)
Power SourceDC 12 V external power supply
Physical
Dimensions259.5 x 178.5 x 28 mm (W x H x D)
Duty Cycle24/7
VESA Mount75 x 75 mm
Weight1.1 kg (without box)
Compliance
CertificationsCE, EAC, RoHS, ErP, WEEE, REACH, UKCA
