IIYAMAMeeting Room SolutionsSKU UC-BAR30-1

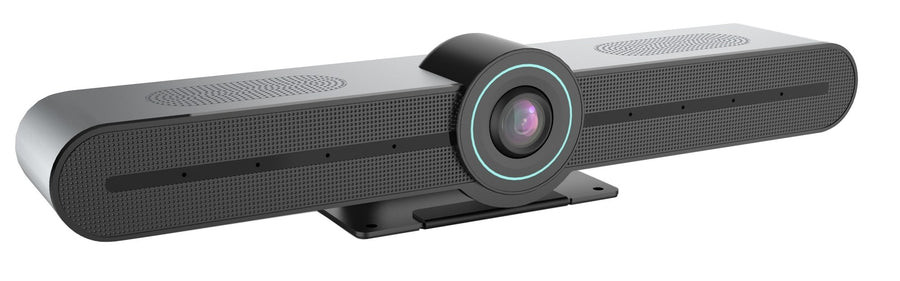

iiyama 4K All-in-One Video Bar – UC-BAR30-1
The iiyama UC-BAR30-1 is a compact all-in-one 4K video bar with a 116-degree camera, AI auto framing and a four-microphone far-field array. It suits small meeting rooms, huddle spaces and personal workspaces. Procure.ae supplies the iiyama UC-BAR30-1 across the UAE.
The 8.29 MP camera delivers 3840 x 2160 video at 30 fps and also supports 1920 x 1080, 1280 x 720 and 640 x 480. A 116-degree diagonal field of view and 16x on-screen zoom frame participants, effectively 5x at 1080p and 2x at 4K. The far-field microphone array captures voices from up to 8 metres, and full-duplex audio keeps conversations uninterrupted. A 5 W speaker completes the bar.
Plug-and-play USB connectivity works with Windows, macOS and Android, and the bar can sit on a monitor, a desktop or a wall mount. Gesture control starts or stops tracking and zooms without touching the device. Integrated presenter buttons move through slides, and a single button switches to mouse mode to point and click on screen content. A privacy shutter covers the camera when it is not in use, and the bar tilts up to 15 degrees.
Resolution
3840 x 2160 (4K UHD)
Type
All-in-One Video Bar
Weight
0.96 kg (without box)
- 4K UHD camera
- AI auto framing
- Gesture control
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD camera
8.29 MP sensor with 3840 x 2160 video at 30 fps and a 116-degree view.
02
AI auto framing
Keeps participants framed and tracks speakers without manual adjustment.
03
Gesture control
Start or stop tracking and zoom without touching the device.
04
Four-microphone array
Far-field pickup up to 8 metres with full-duplex audio.
05
Presenter buttons
Move through slides from the bar, with one button for mouse mode.
06
Built-in speaker
One 5 W speaker in the bar, rated 74 ±3 dB maximum sound pressure level.
07
Flexible mounting
Monitor, desktop or wall mounting, with tilt of up to 15 degrees.
08
Privacy shutter
A shutter covers the camera when it is not in use.
Specifications
19 specificationsGeneral
CompatibilityWindows, macOS, Android
ControlsRemote control, gesture control, presenter buttons
Key Features4K UHD camera, 116° field of view, AI auto framing, gesture tracking, 4-mic array, 8 m pickup, full-duplex audio, presenter buttons
ModelUC-BAR30-1
TypeAll-in-One Video Bar
Display
Camera8.29 MP, 116° diagonal field of view, F/2.2
Resolution3840 x 2160 (4K UHD)
Zoom16x on-screen (5x effective at 1080p, 2x at 4K)
Audio
Frequency Response20 Hz to 20 kHz
Max SPL74 ±3 dB (1 W/0.5 m)
Microphone4-element array, 0 to 8 m pickup radius
Speaker Output1 x 5 W
Connectivity
ConnectivityUSB 2.0 (Type-A to C), Bluetooth
Outputs3840 x 2160p30, 2560 x 1440p30, 1920 x 1080p30, 1280 x 720p30
Power
Power Consumption5 W (typical)
Physical
Dimensions400.5 x 92.8 x 81.2 mm
MountingMonitor, desktop or wall mount
TiltUp to 15°
Weight0.96 kg (without box)
Downloads
Manufacturer documents for the iiyama 4K All-in-One Video Bar – UC-BAR30-1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the UC-BAR30-1 support 4K video?
Yes. It supports 3840 x 2160 at 30 fps, along with 1920 x 1080, 1280 x 720 and 640 x 480 at 30 fps. The 8.29 MP camera has a 116-degree diagonal field of view.
Which operating systems does it work with?
It works with Windows, macOS and Android through plug-and-play USB connectivity. It connects with a USB 2.0 Type-A to Type-C cable, and the bar also includes Bluetooth. Mouse mode lets presenters point and click on screen content from the bar.
What room size does it suit?
It suits small meeting rooms, huddle spaces and personal workspaces. The four-microphone array picks up voices up to 8 metres away, which fits rooms of that scale. The 116-degree diagonal view keeps participants in frame in rooms of that size.
Can it be mounted on a wall or a monitor?
Yes. It supports monitor, desktop or wall mounting, and it tilts up to 15 degrees. The bar weighs 0.96 kg without its box and measures 400.5 x 92.8 x 81.2 mm.
Does it track speakers automatically?
Yes. AI auto framing and voice localisation follow the speaker and keep participants framed. Gesture control can also start or stop tracking and zoom without touching the device. Presenter buttons let a speaker move through slides without holding the device.
Can I buy the UC-BAR30-1 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
