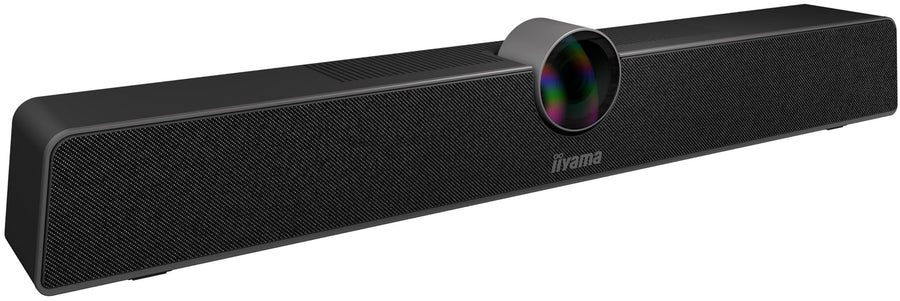

iiyama 4K All-in-One Conference Bar – UC-CAM120ULB-1
The iiyama UC-CAM120ULB-1 is an all-in-one 4K conference bar with a 12 MP camera, a 120-degree field of view, a six-element microphone array and an 8 W speakerphone. It suits small and medium meeting rooms that need automatic framing. Procure.ae supplies the iiyama UC-CAM120ULB-1 across the UAE.
The camera records 4K UHD (2160p) at 30 fps, and also supports 1440p and 1080p, with a 120-degree diagonal field of view. Face detection, automatic tracking and voice localisation follow the active speaker, and AutoFraming adjusts the frame to the number of participants. Three camera presets and 5x digital zoom are selected from the remote control. The six-element microphone array picks up voices up to 8 metres away, with echo cancelling, noise reduction, automatic gain control and dereverberation.
The bar connects with one USB cable and is operational as soon as it is connected, so set-up in a meeting room is quick. It is compatible with Zoom, Skype, Microsoft Teams and other conferencing software. The unit can be wall-mounted, and an anti-peeping cover protects privacy when the camera is not in use. The manufacturer lists the UC-CAM10PRO-1 as a related product for smaller huddle spaces.
Resolution
3840 x 2160 (4K UHD)
Type
All-in-One Conference Bar
Weight
1 kg (without box)
- All-in-one design
- 12 MP 4K camera
- AutoFraming and tracking
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
All-in-one design
Camera, six-element microphone array and 8 W speakerphone in one bar.
02
12 MP 4K camera
4K UHD resolution with a 120-degree diagonal field of view.
03
AutoFraming and tracking
Face detection, automatic tracking and voice localisation follow the speaker.
04
Presets and 5x zoom
Three saved camera positions and 5x digital zoom, selected from the remote.
05
Six-element mic array
Voice pickup up to 8 metres, with echo cancelling and noise reduction.
06
8 W speakerphone
One 8 W speaker provides speakerphone audio in the room.
07
USB plug-and-play
Connects by USB and is operational as soon as it is connected.
08
Anti-peeping cover
A cover protects privacy when the camera is not in use, and it can be wall-mounted.
Specifications
15 specificationsGeneral
ControlsRemote control (batteries included)
Key Features12 MP 4K camera, 120° field of view, AutoFraming, automatic tracking, 3 camera presets, 6-element mic array, 8 W speakerphone, anti-peeping cover
ModelUC-CAM120ULB-1
TypeAll-in-One Conference Bar
Display
Camera12 MP, 120° diagonal field of view, fixed focus
Resolution3840 x 2160 (4K UHD)
Zoom5x digital zoom
Audio
Microphone6-element array, 8 m voice pickup
Speaker Output1 x 8 W
Connectivity
Conference CallingZoom, Skype, Microsoft Teams and others
ConnectivityUSB Type-C camera connection, USB 2.0 cable (Type-A to C)
Physical
Dimensions462 x 76 x 93 mm
MountingWall mount
Weight1 kg (without box)
Compliance
CertificationsCE, RoHS, ErP, WEEE, REACH
Downloads
Manufacturer documents for the iiyama 4K All-in-One Conference Bar – UC-CAM120ULB-1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the UC-CAM120ULB-1 a 4K camera?
Yes. It has a 12 MP sensor with 4K UHD native resolution and supports 2160p, 1440p and 1080p at 30 fps. It also offers a 120-degree diagonal field of view for most standard meeting spaces.
Does it work with Zoom, Microsoft Teams and Skype?
Yes. The manufacturer states it works with any conferencing software and lists Zoom, Skype and Microsoft Teams. It connects by USB and is operational as soon as it is connected.
What size of room does it suit?
It suits small and medium meeting rooms. The microphone array picks up voices up to 8 metres away, and the 120-degree field of view covers most standard meeting spaces. The bar also supports up to three camera presets for quick meeting starts.
How does the camera follow the people in the room?
It uses face detection and voice localisation to track whoever is speaking and switch between presenters. AutoFraming adjusts the frame to the participant location and number of people. Automatic tracking also follows speakers as they move about the room.
Can it be wall-mounted, and how big is it?
Yes. The bar supports wall mounting. It weighs 1 kg without its box and measures 462 x 76 x 93 mm, so it suits a compact wall install. An anti-peeping cover is included.
