Huawei Windows OPS Slot-in PC (Core i7) – OPS W022 Z

The Huawei OPS W022 Z is an OPS-C slot-in PC built on a 13th Gen Intel Core i7 processor, with 16 GB of dual-channel DDR4 memory, a 512 GB SSD and Windows 11 IoT Enterprise. It adds Wi-Fi 6, Bluetooth 5.2 and 4K 60 Hz HDMI output to compatible interactive flat panels. Procure.ae supplies it in the UAE.

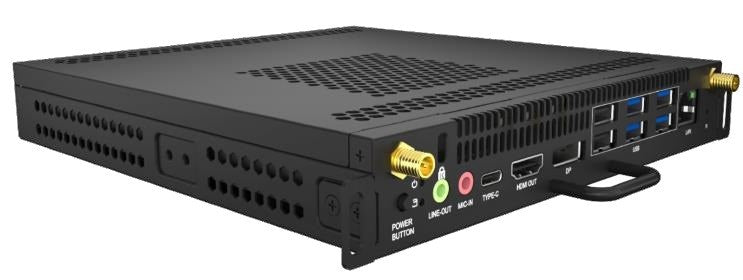

The OPS W022 Z is a standard pluggable computer developed on the Intel OPS-C design specification, using a 13th Gen Intel Core i7 processor with integrated Intel UHD Graphics. Memory is 16 GB of DDR4 (two 8 GB modules in dual channel) and storage is a 512 GB solid state disk. It runs Windows 11 IoT Enterprise 64-bit 23H2. The main board has four USB 3.0 ports, two USB 2.0 ports, one USB Type-C port, one RJ45 port, MIC IN and LINE OUT.
