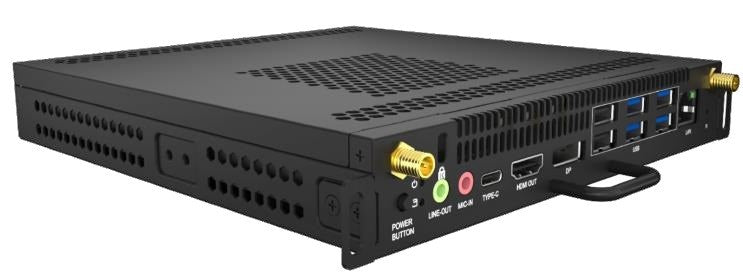

Huawei Windows OPS Slot-in PC (Core i7) – OPS W022 Z
The Huawei OPS W022 Z is an OPS-C slot-in PC built on a 13th Gen Intel Core i7 processor, with 16 GB of dual-channel DDR4 memory, a 512 GB SSD and Windows 11 IoT Enterprise. It adds Wi-Fi 6, Bluetooth 5.2 and 4K 60 Hz HDMI output to compatible interactive flat panels. Procure.ae supplies it in the UAE.
The OPS W022 Z is a standard pluggable computer developed on the Intel OPS-C design specification, using a 13th Gen Intel Core i7 processor with integrated Intel UHD Graphics. Memory is 16 GB of DDR4 (two 8 GB modules in dual channel) and storage is a 512 GB solid state disk. It runs Windows 11 IoT Enterprise 64-bit 23H2. The main board has four USB 3.0 ports, two USB 2.0 ports, one USB Type-C port, one RJ45 port, MIC IN and LINE OUT.
The 80-pin JAE connector on the rear panel provides HDMI 2.0 output at up to 4K 60 Hz to the host panel, while the board also has one HDMI 1.4 output. Wi-Fi 6 and Bluetooth 5.2 are supported through an M.2 2230 slot. Huawei describes it as combining high processing performance, low power consumption, minimal noise and a compact footprint for education and meeting rooms. It weighs 0.9 kg net and measures 195 x 30 x 180 mm (W x H x D).
Key features
Specifications
| Key Features | 13th Gen Intel Core i7, 16 GB DDR4 dual channel, 512 GB SSD, Wi-Fi 6, Bluetooth 5.2, 4K 60 Hz HDMI, one-click backup and restore |
| Model | OPS W022 Z |
| Type | Windows OPS-C Slot-in PC |
| Graphics | Intel UHD Graphics (integrated) |
| Memory Type | DDR4, 2 x 8 GB dual channel |
| Operating System | Windows 11 IoT Enterprise 64-bit (23H2) |
| Processor | 13th Gen Intel Core i7 |
| RAM | 16 GB |
| Storage | 512 GB SSD |
| Storage Conditions | -20 to 70 °C |
| Audio In | MIC IN × 1 |
| Audio Out | LINE OUT × 1 |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | RJ45 × 1 |
| HDMI Outputs | HDMI 1.4 × 1 (IO); HDMI 2.0 × 1 via 80-pin (4K 60 Hz) |
| Input Voltage | 19 V DC |
| OPS Slot | OPS-C, JAE 80-pin connector |
| Ports | HDMI 1.4 × 1, USB 3.0 × 4, USB 2.0 × 2, USB-C × 1, RJ45 × 1, MIC IN × 1, LINE OUT × 1 |
| USB Ports | USB 3.0 × 4, USB 2.0 × 2 |
| USB-C Ports | 1 |
| Wi-Fi | Wi-Fi 6 (802.11 a/b/g/n/e/ac/ax), M.2 2230 |
| Color | Black |
| Dimensions | 195 x 30 x 180 mm (W x H x D) |
| Form Factor | OPS-C pluggable computer |
| Operating Humidity | 5% to 95% RH |
| Operating Temperature | 0 to 40 °C |
| Weight | 0.9 kg (net) |
| Certifications | SRRC, CCC, CE, RoHS, REACH, WEEE, ERP, CB, VCCI, HDMI, BQB |
