HuaweiMeeting Room SolutionsSKU OPS W022 D
Huawei Windows OPS Slot-in PC (Core i7) – OPS W022 D
The Huawei OPS W022 D is a Windows 11 OPS-C slot-in PC built on a 13th Gen Intel Core i7 platform, with 16 GB of DDR4 memory and a 512 GB SSD. It adds Wi-Fi 6, Bluetooth 5.3 and 4K 60 Hz HDMI output to compatible interactive flat panels. Procure.ae supplies it in the UAE.
The OPS W022 D is built on the Intel OPS-C design specification with a 13th Gen Intel Core i7 processor and integrated Intel UHD Graphics. Huawei positions it for the higher performance and computational power that education and conferencing applications require. It has 16 GB of DDR4 memory on dual DIMMs and a 512 GB solid state disk, and it runs Windows 11. HDMI output supports 4K at 60 Hz, and the board also has a DisplayPort output.

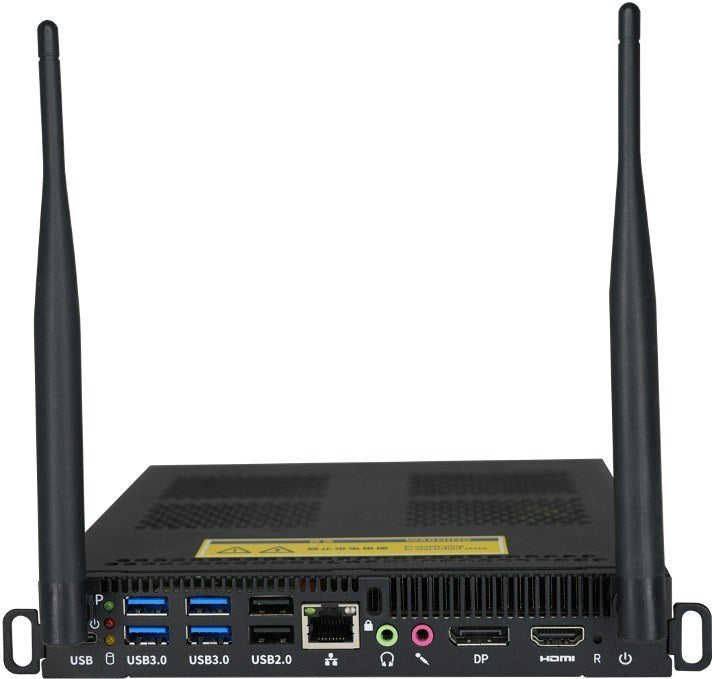

The main board offers four USB 3.0 ports, two USB 2.0 ports, one USB Type-C port, one RJ45 port, MIC IN and LINE OUT. A standard JAE 80-pin connector on the rear panel links the module to the host display, so it fits interactive flat panels with an OPS-C slot. Wi-Fi 6 and Bluetooth 5.3 are supported through an M.2 2230 slot, and one-click system backup and restoration is included. A download link for IdeaShare Server is pre-installed.
Type
Windows OPS-C Slot-in PC
- 13th Gen Intel Core i7
- 16 GB DDR4 and 512 GB SSD
- Windows 11
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
13th Gen Intel Core i7
Intel OPS-C computing for demanding education and conferencing software.
02
16 GB DDR4 and 512 GB SSD
Dual-DIMM memory with solid state storage.
03
Windows 11
Ships with Windows 11 for classroom and meeting applications.
04
4K 60 Hz output
HDMI output supports 4K at 60 Hz, with an additional DisplayPort output.
05
Wi-Fi 6 and Bluetooth 5.3
802.11 a/b/g/n/e/ac/ax wireless and Bluetooth 5.3 via an M.2 2230 slot.
06
One-click recovery
One-click system backup and restoration for simple maintenance.
Specifications
28 specificationsGeneral
Key Features13th Gen Intel Core i7, 16 GB DDR4, 512 GB SSD, Wi-Fi 6, Bluetooth 5.3, 4K 60 Hz HDMI, one-click backup and restore
ModelOPS W022 D
TypeWindows OPS-C Slot-in PC
Performance
GraphicsIntel UHD Graphics (integrated)
Memory TypeDDR4 (dual DIMM)
Operating SystemWindows 11
Processor13th Gen Intel Core i7
RAM16 GB
Storage512 GB SSD
Storage Conditions-20 to 70 °C
Audio
Audio InMIC IN × 1
Audio OutLINE OUT × 1
DisplayPortDP × 1
Connectivity
BluetoothBluetooth 5.3
EthernetRJ45 × 1
HDMI OutputsHDMI Out × 1 (4K 60 Hz)
Input Voltage19 V DC
OPS SlotOPS-C, JAE 80-pin connector
PortsHDMI Out × 1, DP × 1, USB 3.0 × 4, USB 2.0 × 2, USB-C × 1, RJ45 × 1, MIC IN × 1, LINE OUT × 1
USB PortsUSB 3.0 × 4, USB 2.0 × 2
USB-C Ports1
Wi-FiWi-Fi 6 (802.11 a/b/g/n/e/ac/ax), M.2 2230
Physical
ColorBlack
Dimensions195 x 30 x 180 mm (W x H x D)
Form FactorOPS-C pluggable computer
Operating Humidity5% to 95% RH
Operating Temperature0 to 40 °C
Compliance
CertificationsSRRC, CCC, CE, RoHS, REACH, WEEE, ERP, CB, VCCI, HDMI, BQB
Downloads
Manufacturer documents for the Huawei Windows OPS Slot-in PC (Core i7) – OPS W022 D — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which processor does the Huawei OPS W022 D use?
It uses a 13th Gen Intel Core i7 processor with integrated Intel UHD Graphics. Memory is 16 GB of DDR4 on dual DIMMs, storage is a 512 GB solid state disk, and the operating system is Windows 11.
What ports does the OPS W022 D provide?
The main board has four USB 3.0 ports, two USB 2.0 ports, one USB Type-C port, one RJ45 port, one MIC IN, one LINE OUT, one DisplayPort and one HDMI output that supports 4K at 60 Hz. Power is a 19 V DC input through the 80-pin connector.
Is the OPS W022 D compatible with my interactive flat panel?
It fits panels with a standard OPS-C slot and a JAE 80-pin connector. It measures 195 x 30 x 180 mm (W x H x D). Send Procure.ae your panel brand and model, and the team will confirm compatibility before you order.
Can I buy the Huawei OPS W022 D in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
