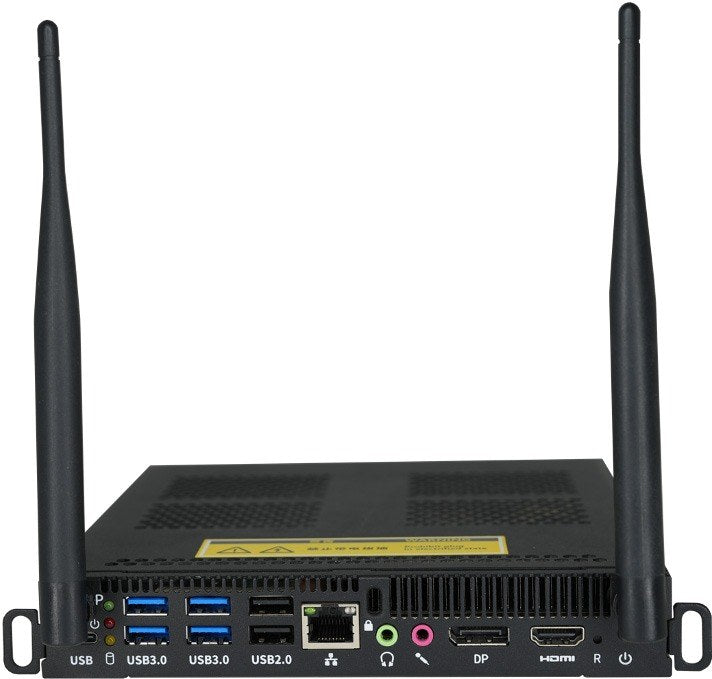

Huawei Windows OPS Slot-in PC (Core i7) – OPS W022 D
The Huawei OPS W022 D is a Windows 11 OPS-C slot-in PC built on a 13th Gen Intel Core i7 platform, with 16 GB of DDR4 memory and a 512 GB SSD. It adds Wi-Fi 6, Bluetooth 5.3 and 4K 60 Hz HDMI output to compatible interactive flat panels. Procure.ae supplies it in the UAE.
The OPS W022 D is built on the Intel OPS-C design specification with a 13th Gen Intel Core i7 processor and integrated Intel UHD Graphics. Huawei positions it for the higher performance and computational power that education and conferencing applications require. It has 16 GB of DDR4 memory on dual DIMMs and a 512 GB solid state disk, and it runs Windows 11. HDMI output supports 4K at 60 Hz, and the board also has a DisplayPort output.
The main board offers four USB 3.0 ports, two USB 2.0 ports, one USB Type-C port, one RJ45 port, MIC IN and LINE OUT. A standard JAE 80-pin connector on the rear panel links the module to the host display, so it fits interactive flat panels with an OPS-C slot. Wi-Fi 6 and Bluetooth 5.3 are supported through an M.2 2230 slot, and one-click system backup and restoration is included. A download link for IdeaShare Server is pre-installed.
Key features
Specifications
| Key Features | 13th Gen Intel Core i7, 16 GB DDR4, 512 GB SSD, Wi-Fi 6, Bluetooth 5.3, 4K 60 Hz HDMI, one-click backup and restore |
| Model | OPS W022 D |
| Type | Windows OPS-C Slot-in PC |
| Graphics | Intel UHD Graphics (integrated) |
| Memory Type | DDR4 (dual DIMM) |
| Operating System | Windows 11 |
| Processor | 13th Gen Intel Core i7 |
| RAM | 16 GB |
| Storage | 512 GB SSD |
| Storage Conditions | -20 to 70 °C |
| Audio In | MIC IN × 1 |
| Audio Out | LINE OUT × 1 |
| DisplayPort | DP × 1 |
| Bluetooth | Bluetooth 5.3 |
| Ethernet | RJ45 × 1 |
| HDMI Outputs | HDMI Out × 1 (4K 60 Hz) |
| Input Voltage | 19 V DC |
| OPS Slot | OPS-C, JAE 80-pin connector |
| Ports | HDMI Out × 1, DP × 1, USB 3.0 × 4, USB 2.0 × 2, USB-C × 1, RJ45 × 1, MIC IN × 1, LINE OUT × 1 |
| USB Ports | USB 3.0 × 4, USB 2.0 × 2 |
| USB-C Ports | 1 |
| Wi-Fi | Wi-Fi 6 (802.11 a/b/g/n/e/ac/ax), M.2 2230 |
| Color | Black |
| Dimensions | 195 x 30 x 180 mm (W x H x D) |
| Form Factor | OPS-C pluggable computer |
| Operating Humidity | 5% to 95% RH |
| Operating Temperature | 0 to 40 °C |
| Certifications | SRRC, CCC, CE, RoHS, REACH, WEEE, ERP, CB, VCCI, HDMI, BQB |
