HuaweiMeeting Room SolutionsSKU CloudLink Camera 500

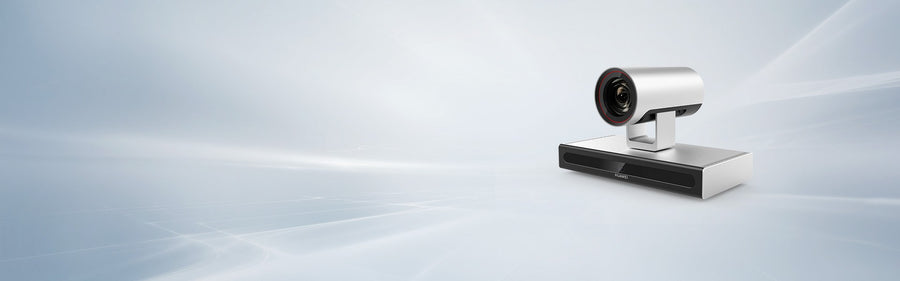

Huawei CloudLink Intelligent UHD PTZ Conference Camera – CloudLink Camera 500
The Huawei CloudLink Camera 500 is a UHD PTZ conference camera with 12x optical zoom, an F1.8 aperture and 255 presets. It pans ±100° and tilts ±30°, and it is offered in 4K 60 fps and 1080p 60 fps models. Procure.ae supplies the Huawei CloudLink Camera 500 in the UAE for video conferencing rooms.
The CloudLink Camera 500 pairs an 8.46-megapixel UHD main lens sensor, a 1/2.8-inch CMOS, with a secondary 2.0-megapixel Smart Eye sensor. The 12x optical zoom and 12x digital zoom are paired with an F1.8 aperture and an 80° horizontal and 50° vertical angle of view. Pan covers ±100° and tilt covers ±30°, and the camera stores 255 presets. The manufacturer describes image processing technologies for the video output.
The manufacturer lists the CloudLink Camera 500 as a UHD PTZ camera for video conferencing rooms. Its 4K 60 fps model outputs 4K at 50 or 60 fps, 4K at 25 or 30 fps, and 1080p and 720p at matching frame rates. The 1080p 60 fps model outputs 1080p and 720p only. The manufacturer's specifications do not state control protocols, connectivity ports, compatibility with specific endpoints or mounting options for this model.
Resolution
4K 50/60 fps, 4K 25/30 fps, 1080p 5...
Type
PTZ Camera
- UHD main sensor
- Smart Eye sensor
- 12x optical zoom
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
UHD main sensor
8.46 MP main lens with 1/2.8-inch CMOS
02
Smart Eye sensor
Secondary 2.0 MP sensor with 1/2.9-inch CMOS
03
12x optical zoom
Plus 12x digital zoom
04
F1.8 aperture
Wide aperture for the main lens
05
Angle of view
80° horizontal, 50° vertical
06
Pan and tilt
Pan ±100° and tilt ±30°
07
255 presets
Recalls stored camera positions
08
4K or 1080p output
4K 60 fps or 1080p 60 fps model
Specifications
9 specificationsGeneral
ApplicationVideo conferencing rooms
Key FeaturesUHD PTZ camera, 12x optical and 12x digital zoom, F1.8 aperture, Smart Eye sensor, 255 presets, 4K 60 fps or 1080p 60 fps model
ModelCloudLink Camera 500
TypePTZ Camera
Display
CameraUHD main lens 8.46 MP, 1/2.8-inch CMOS; Smart Eye 2.0 MP, 1/2.9-inch CMOS
Resolution4K 50/60 fps, 4K 25/30 fps, 1080p 50/60 fps, 1080p 25/30 fps, 720p 50/60 fps (4K 60 fps model); 1080p 50/60 fps, 1080p 25/30 fps, 720p 50/60 fps (1080p 60 fps model)
Viewing Angle80° horizontal / 50° vertical
Zoom12x optical + 12x digital
Physical
RotationPan ±100°, tilt ±30°
Questions
Can’t find your answer? Ask on WhatsApp
Does the CloudLink Camera 500 support 4K?
Yes, on the 4K 60 fps model, which outputs 4K at 50 or 60 fps and 4K at 25 or 30 fps. The 1080p 60 fps model outputs 1080p and 720p, so confirm which model Procure.ae supplies for your room before ordering.
How much zoom does it offer?
It offers 12x optical zoom plus 12x digital zoom. The manufacturer lists an F1.8 aperture and an 80° horizontal angle of view, so the optical zoom covers most framing needs for a room of this type.
How far can the camera pan and tilt?
The camera pans ±100° and tilts ±30°, which covers a wide area of the room from one position. It stores 255 presets, so framed positions for different seats or presenters can be recalled quickly during a meeting.
Can it store camera positions?
Yes. The camera stores 255 presets for recalling framed positions in the room. The manufacturer's specifications do not state the control protocols, so ask Procure.ae before connecting a third-party control system.
Does it need mounting hardware?
The manufacturer's specifications do not state mounting options or a bracket for the CloudLink Camera 500. Confirm mounting with Procure.ae before installation, and ask about delivery and installation across the UAE.
Can I buy the CloudLink Camera 500 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
