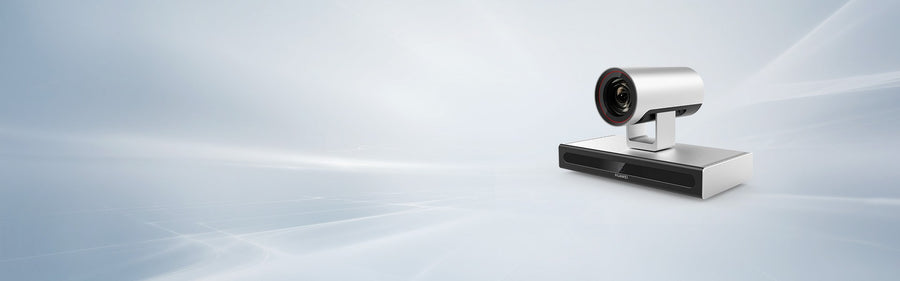

Huawei CloudLink Intelligent UHD PTZ Conference Camera – CloudLink Camera 500

The Huawei CloudLink Camera 500 is a UHD PTZ conference camera with 12x optical zoom, an F1.8 aperture and 255 presets. It pans ±100° and tilts ±30°, and it is offered in 4K 60 fps and 1080p 60 fps models. Procure.ae supplies the Huawei CloudLink Camera 500 in the UAE for video conferencing rooms.

The CloudLink Camera 500 pairs an 8.46-megapixel UHD main lens sensor, a 1/2.8-inch CMOS, with a secondary 2.0-megapixel Smart Eye sensor. The 12x optical zoom and 12x digital zoom are paired with an F1.8 aperture and an 80° horizontal and 50° vertical angle of view. Pan covers ±100° and tilt covers ±30°, and the camera stores 255 presets. The manufacturer describes image processing technologies for the video output.

The manufacturer lists the CloudLink Camera 500 as a UHD PTZ camera for video conferencing rooms. Its 4K 60 fps model outputs 4K at 50 or 60 fps, 4K at 25 or 30 fps, and 1080p and 720p at matching frame rates. The 1080p 60 fps model outputs 1080p and 720p only. The manufacturer's specifications do not state control protocols, connectivity ports, compatibility with specific endpoints or mounting options for this model.

Resolution

4K 50/60 fps, 4K 25/30 fps, 1080p 50/60 fps, 1080p 25/30 fps, 720p 50/60 fps (4K 60 fps model); 1080p 50/60 fps, 1080p 25/30 fps, 720p 50/60 fps (1080p 60 fps model)

Type

PTZ Camera

Key features

UHD main sensor

8.46 MP main lens with 1/2.8-inch CMOS

Smart Eye sensor

Secondary 2.0 MP sensor with 1/2.9-inch CMOS

12x optical zoom

Plus 12x digital zoom

F1.8 aperture

Wide aperture for the main lens

Angle of view

80° horizontal, 50° vertical

Pan and tilt

Pan ±100° and tilt ±30°

255 presets

Recalls stored camera positions

4K or 1080p output

4K 60 fps or 1080p 60 fps model

Specifications

General
Application	Video conferencing rooms
Key Features	UHD PTZ camera, 12x optical and 12x digital zoom, F1.8 aperture, Smart Eye sensor, 255 presets, 4K 60 fps or 1080p 60 fps model
Model	CloudLink Camera 500
Type	PTZ Camera

Display
Camera	UHD main lens 8.46 MP, 1/2.8-inch CMOS; Smart Eye 2.0 MP, 1/2.9-inch CMOS
Resolution	4K 50/60 fps, 4K 25/30 fps, 1080p 50/60 fps, 1080p 25/30 fps, 720p 50/60 fps (4K 60 fps model); 1080p 50/60 fps, 1080p 25/30 fps, 720p 50/60 fps (1080p 60 fps model)
Viewing Angle	80° horizontal / 50° vertical
Zoom	12x optical + 12x digital

Physical
Rotation	Pan ±100°, tilt ±30°
