HisenseDigital SignageSKU 55WH80F

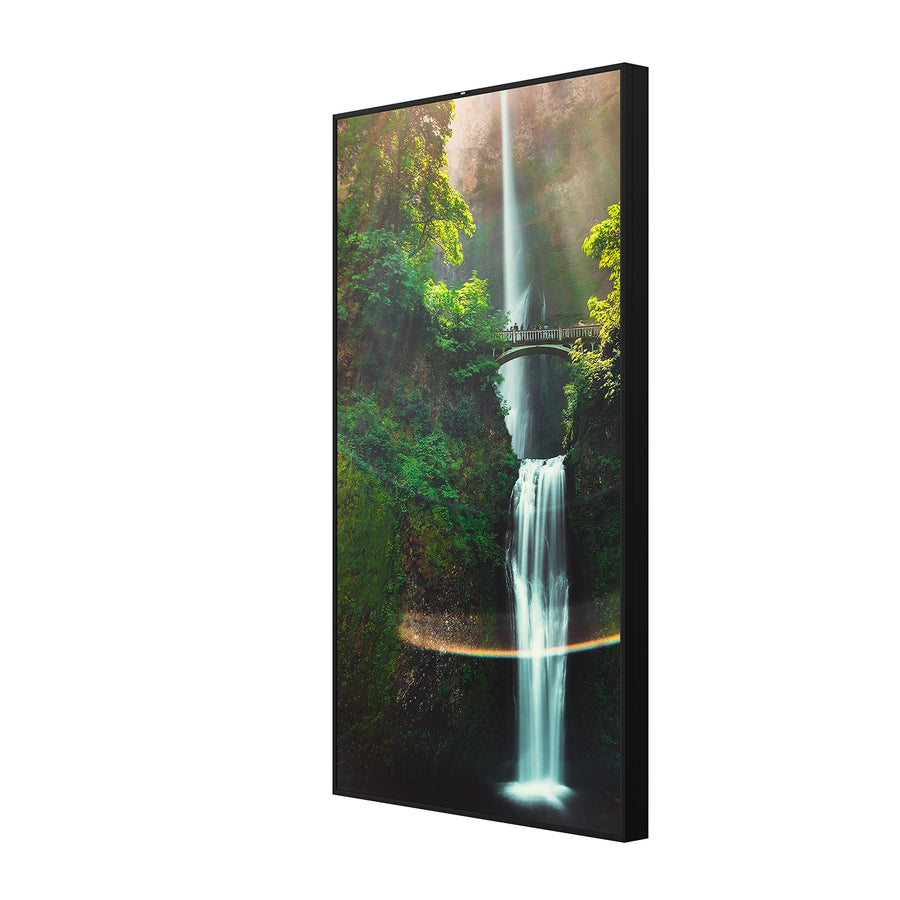

Hisense WH80F 55-inch 4K UHD Window-Facing Digital Signage Display – 55WH80F
The Hisense 55WH80F is a 55-inch 4K UHD window-facing digital signage display rated at 4000 nits typical, with landscape and portrait orientation. It runs Android 11 with 2 GB DDR4 memory and 16 GB storage. Procure.ae, an authorised reseller, supplies the 55WH80F across the UAE.
The 55WH80F offers 3840 x 2160 (4K UHD) resolution at 60 Hz on a 55-inch DLED backlit panel, with 178° viewing angles and 72% NTSC colour gamut. Typical brightness is 4000 nits, with a static contrast ratio of 1,200:1 and dynamic contrast of 1,000,000:1. The response time is 8 ms typical. An ARM Cortex-A55 quad-core processor with Mali-G52 graphics runs Android 11 for 24 hours a day, 7 days a week.
Mount it with the 400 x 400 mm VESA pattern and four M6 screws, in landscape or portrait orientation. Dual-band Wi-Fi and Bluetooth 5.1 handle connectivity, and the built-in 10 W x 2 speakers provide audio. The supplied RS232 converter cable, IR cable and IR and light sensor cable allow the display to be controlled and integrated with external systems. Compared with the 55WH80GE, this model runs Android 11 with 2 GB memory and 16 GB storage, rather than Android 14 with 4 GB and 32 GB.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
4000 nits (typical)
Type
Window-Facing High Brightness Display
- 4K UHD window display
- 4000-nit typical brightness
- Landscape and portrait mode
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD window display
3840 x 2160 resolution on a 55-inch panel at 60 Hz.
02
4000-nit typical brightness
Typical brightness of 4000 nits for windows with strong daylight.
03
Landscape and portrait mode
Supports both orientations for window and totem layouts.
04
Android 11 platform
ARM Cortex-A55 quad-core processor, Mali-G52 graphics, 2 GB DDR4 and 16 GB eMMC storage.
05
RS232 and IR control
Supplied RS232 converter cable, IR cable and IR and light sensor cable.
06
Dual-band Wi-Fi and Bluetooth
Wi-Fi 2.4/5.0 GHz (802.11a/b/g/n/ac) and Bluetooth 5.1 connectivity.
07
Built-in 10 W x 2 speakers
Stereo built-in speakers for audio playback at the display.
08
Low standby consumption
Standby consumption below 0.5 W; typical operating power 180 W.
Specifications
36 specificationsGeneral
Key Features4K UHD 3840 x 2160, 4000-nit typical brightness, Landscape and portrait, RS232 and IR control, Android 11, Dual-band Wi-Fi, Bluetooth 5.1, 10 W x 2 speakers
Model55WH80F
TypeWindow-Facing High Brightness Display
What's in the BoxQuick setup guide, power cord, remote control and AAA batteries x2, RS232 converter cable, IR cable, IR and light sensor cable
Display
Aspect Ratio16:9
BacklightDLED
Bezel Size9.9 mm (even)
Brightness4000 nits (typical)
Color Depth1.07 billion colours (8-bit + FRC)
Color Gamut72% NTSC
Contrast Ratio1,200:1
OrientationLandscape and portrait
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical)
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Performance
Duty Cycle24/7
Operating SystemAndroid 11
ProcessorARM Cortex-A55 quad-core, Mali-G52 GPU
RAM2 GB DDR4
Storage16 GB eMMC
Audio
AudioBuilt-in 10 W x 2 speakers
Connectivity
BluetoothBluetooth 5.1
Input Voltage100–240 V AC, 50/60 Hz
Wi-FiDual-band 2.4/5.0 GHz, 802.11a/b/g/n/ac
Power
Power Consumption180 W (typical); 380 W (max)
Standby Power<0.5 W
Physical
ColorBlack
Dimensions1232.6 x 704.6 x 57.9 mm
Operating Humidity10% to 80% non-condensing
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm (4 x M6 screws)
Weight27.7 kg
Compliance
CertificationsCB, CE, FCC, cTUVus, ERP, CEC, RCM
IP RatingIP5X
Downloads
Manufacturer documents for the Hisense WH80F 55-inch 4K UHD Window-Facing Digital Signage Display – 55WH80F — datasheets, manuals, drawings and certificates.
- Datasheet – 55WH80F
- Brochure – 55WH80F
- Brochure – Hisense (covers 38 models)
- User manual – 55WH80F
- Quick start guide – 55WH80F
- Control protocol (RS232 / LAN) – 55WH80F
- Control protocol (RS232 / LAN) – 55WH80F
- Control protocol (RS232 / LAN) – Hisense VW25E Series (LCD Video Wall Display) / WH80F Series (Window Facing)
- Certificate / compliance – 55WH80F
- Certificate / compliance – 55WH80F
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the Hisense 55WH80F offer?
The 55WH80F has 3840 x 2160 (4K UHD) resolution at 60 Hz and typical brightness of 4000 nits. Its static contrast ratio is 1,200:1, and it supports landscape and portrait orientation for window layouts.
Can the 55WH80F be used in direct sunlight?
Yes, the manufacturer states excellent visibility even under direct sunlight. The panel is rated at 4000 nits typical, and the operating range is 0 to 40 °C with 10% to 80% non-condensing humidity, so confirm the site conditions with Procure.ae before installation.
Does the 55WH80F mount on a standard VESA bracket?
Yes. It has a 400 x 400 mm VESA mount with four M6 screws. The set measures 1232.6 x 704.6 x 57.9 mm and weighs 27.7 kg net, so choose a bracket rated for that weight.
What platform and connectivity does the 55WH80F have?
It runs Android 11 on an ARM Cortex-A55 quad-core processor with 2 GB DDR4 memory and 16 GB eMMC storage. Connectivity is dual-band Wi-Fi (2.4/5.0 GHz) and Bluetooth 5.1, with RS232 and IR control through the supplied cables.
