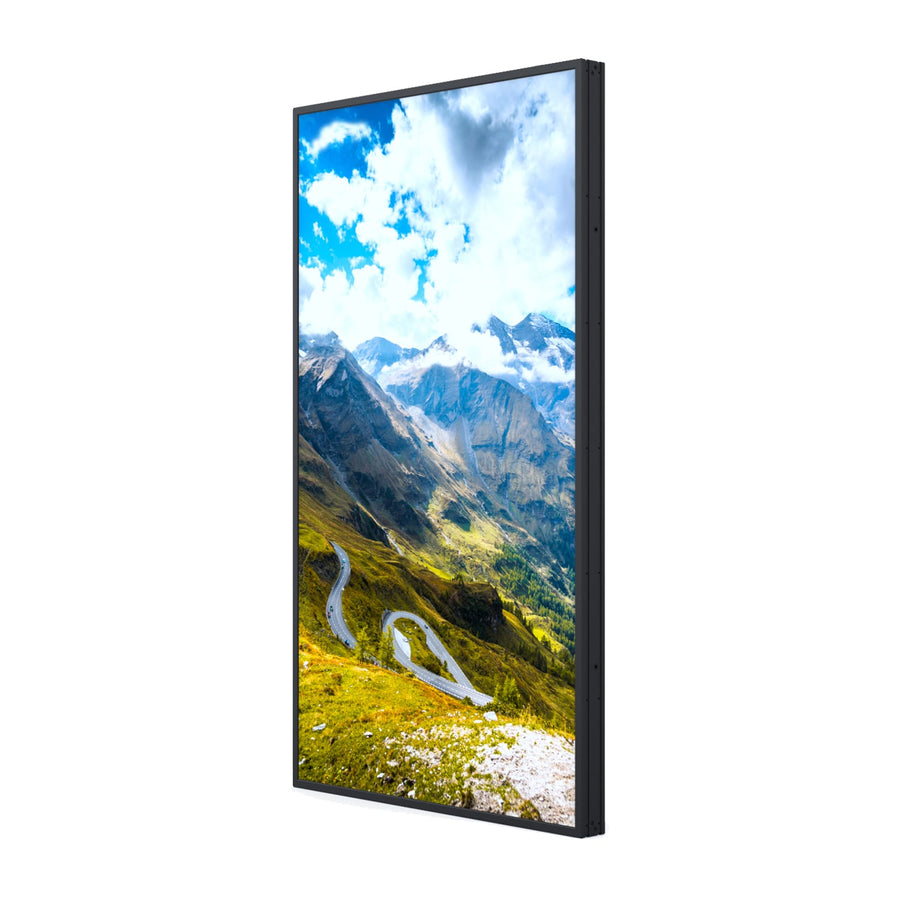

HisenseHisense WF45H 55-inch Window-Facing Digital Signage Display – 55WF45H
The Hisense 55WF45H is a 55-inch window-facing digital signage display rated at 4500 nits for locations with strong ambient light. It has Full HD 1920 x 1080 resolution, a light sensor for automatic brightness and smart fan control. Procure.ae, an authorised reseller, supplies the 55WF45H across the UAE.
The 55WF45H uses a 55-inch Full HD panel at 1920 x 1080 with a 16:9 aspect ratio and 178° viewing angles. Its 4500-nit brightness is rated for bright lighting, with a 1,000:1 contrast ratio and dynamic contrast of up to 450,000:1. The response time is 6 ms. An Android 9.0 platform runs on a quad-core ARM Cortex-A53 processor with 2 GB DDR memory and 16 GB eMMC storage. Smart fan control, smart temperature control and overheating protection support 24/7 operation, with a rated power consumption of 320 W maximum.
Mount the panel with the 400 x 400 mm VESA pattern, using the M6 lifting rings and pads supplied. Wi-Fi or LAN connects the display, with optional 3G/4G, and the optional CetusMSC cloud monitoring system manages it remotely. The built-in speaker, line-out support and Bluetooth speaker support add audio options. The manufacturer describes the panel as suitable for ambient and outdoor lighting conditions, while the rated working environment is indoor window facing. Its 4500-nit rating compares with 3500 nits for the 55WF35M and 2500 nits for the 55WF25E.
- 4500-nit window brightness
- Full HD 16:9 panel
- Light-sensor auto brightness
Key features
Specifications
31 specificationsDownloads
Manufacturer documents for the Hisense WF45H 55-inch Window-Facing Digital Signage Display – 55WF45H — datasheets, manuals, drawings and certificates.
- Datasheet – 55WF45H
- User manual – Hisense WF25E Series (Window Facing) / WF35M Series (Window Facing) / WF45H Series (Window Facing)
- Quick start guide – Hisense WF25E Series (Window Facing) / WF35M Series (Window Facing) / WF45H Series (Window Facing)
- Control protocol (RS232 / LAN) – Hisense (covers 40 models)
- Control protocol (RS232 / LAN) – Hisense (covers 44 models)
