Hisense OPS72D/72E OPS slot-in PC moduleHisense

Hisense OPS Slot-in PC – OPS72D/72E

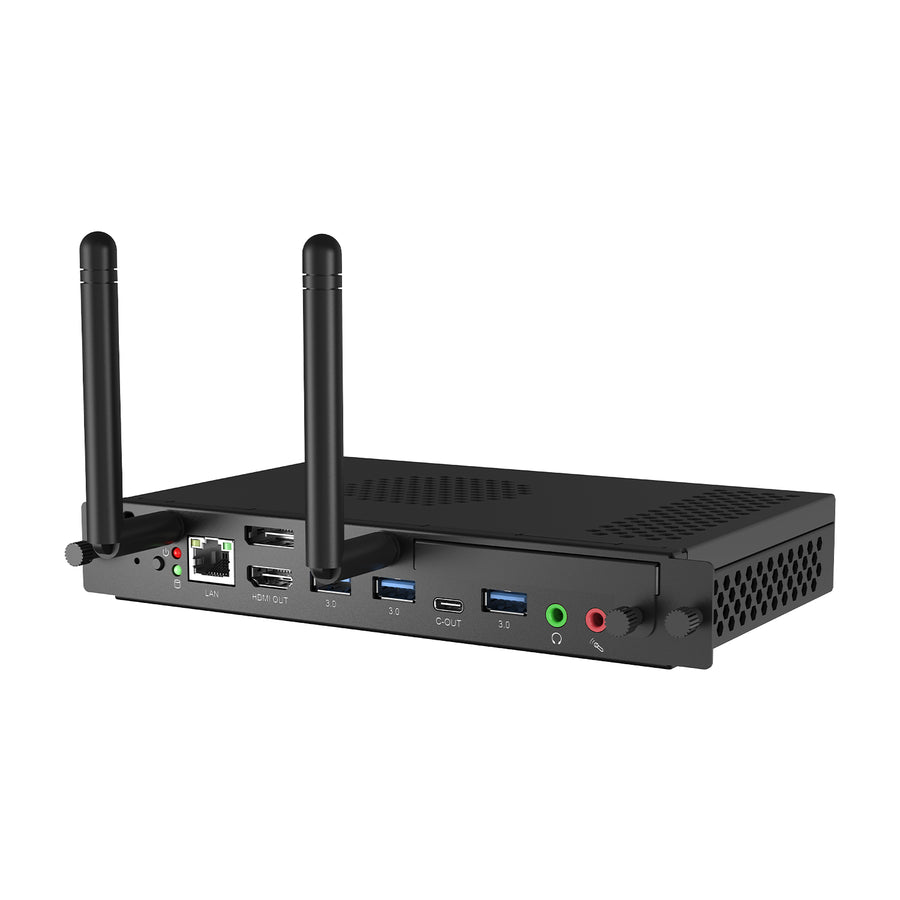

The Hisense OPS72D/72E is an OPS slot-in PC that fits inside compatible Hisense interactive displays. It runs Windows 11 Pro on an Intel Core i5-13420H or i7-13620H with up to 16 GB RAM and 512 GB SSD storage. Procure.ae supplies the Hisense OPS72D/72E across the UAE.

The OPS72D/72E is an on-board computer for Hisense interactive displays, so the display runs its PC software without a separate computer. Configurations use an Intel Core i5-13420H or i7-13620H processor, 8 GB or 16 GB of RAM and 256 GB or 512 GB of SSD storage. Wi-Fi 6, Bluetooth 5.3 and 10/100/1000 Mbps Ethernet are integrated. Windows 11 Pro is the operating system, and the unit has four USB 3.0 ports, one USB-C port, an HDMI 2.0 output and a DisplayPort 1.4 output.

Use the OPS72D/72E in classrooms, boardrooms and collaboration spaces that need the display to run its own applications, presentations and video conferencing software. The module sits in the OPS slot of a compatible Hisense interactive display, so no separate PC has to be placed in the room. It measures 180 x 119 x 30 mm and weighs 0.60 kg, and it operates from -10 to 45 °C and 10% to 90% relative humidity.

Type
OPS Slot-in PC
Weight
0.60 kg
  • OPS slot-in design
  • Intel Core processors
  • Memory and storage
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
OPS slot-in design
Fits the OPS slot of compatible Hisense interactive displays.
02
Intel Core processors
Choice of Intel Core i5-13420H or i7-13620H.
03
Memory and storage
8 GB or 16 GB RAM with 256 GB or 512 GB SSD.
04
Wireless connectivity
Wi-Fi 6 and Bluetooth 5.3 built in.
05
Video and audio ports
HDMI 2.0 and DisplayPort 1.4 outputs, plus a mic input and line output.
06
Windows 11 Pro
Runs the Windows 11 Pro operating system.

Specifications

22 specifications
General
CompatibilityHisense interactive displays with an OPS slot
Key FeaturesIntel Core i5 or i7 processor, 8 or 16 GB RAM, 256 or 512 GB SSD, Windows 11 Pro, Wi-Fi 6 and Bluetooth 5.3, 4 USB 3.0 ports, HDMI 2.0 and DisplayPort 1.4 outputs
ModelOPS72D/72E
TypeOPS Slot-in PC
Performance
Operating SystemWindows 11 Pro
ProcessorIntel Core i5-13420H or i7-13620H
RAM8 GB or 16 GB
Storage256 GB or 512 GB SSD
Storage Conditions-20 to 60 °C; 10% to 90% RH
Connectivity
BluetoothBluetooth 5.3
Ethernet10/100/1000 Mbps
Input Voltage12–19 V DC
PortsUSB 3.0 × 4, USB-C × 1, HDMI out × 1 (2.0), DisplayPort out × 1 (1.4), Mic in × 1, Line out × 1
Wi-FiWi-Fi 6
Power
Power Consumption80.7–90 W (max)
Standby Power2.9 W
Physical
ColorBlack
Dimensions180 x 119 x 30 mm
Operating Humidity10% to 90% RH
Operating Temperature-10 to 45 °C
Weight0.60 kg
Compliance
CertificationsCB, CE, UKCA, FCC, IC, RCM, RoHS, UL 4200A

Downloads

Manufacturer documents for the Hisense OPS Slot-in PC – OPS72D/72E — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Is the Hisense OPS72D/72E compatible with all Hisense displays?
No. The manufacturer describes the OPS72D/72E for Hisense interactive displays with an OPS slot. Check the display model and its OPS slot before ordering, or ask Procure.ae to confirm compatibility.
What processor, memory and storage does the OPS72D/72E have?
It is available with an Intel Core i5-13420H or i7-13620H processor, 8 GB or 16 GB of RAM, and 256 GB or 512 GB of SSD storage. Both processor options are listed with the same Windows 11 Pro system and Wi-Fi 6 and Bluetooth 5.3 connectivity.
Does the OPS72D/72E have Wi-Fi and Bluetooth?
Yes. The manufacturer lists Wi-Fi 6 and Bluetooth 5.3, plus an integrated 10/100/1000 Mbps Ethernet port. These connections let the unit join a wireless network and pair Bluetooth peripherals, while the Ethernet port suits wired installations.
What power does the OPS72D/72E need?
It runs on 12 to 19 V DC, with a maximum power draw of 80.7 to 90 W and 2.9 W standby power. Confirm that the host display's OPS slot supplies this power before installation.
