HisenseDigital SignageSKU 43-86DM66GE

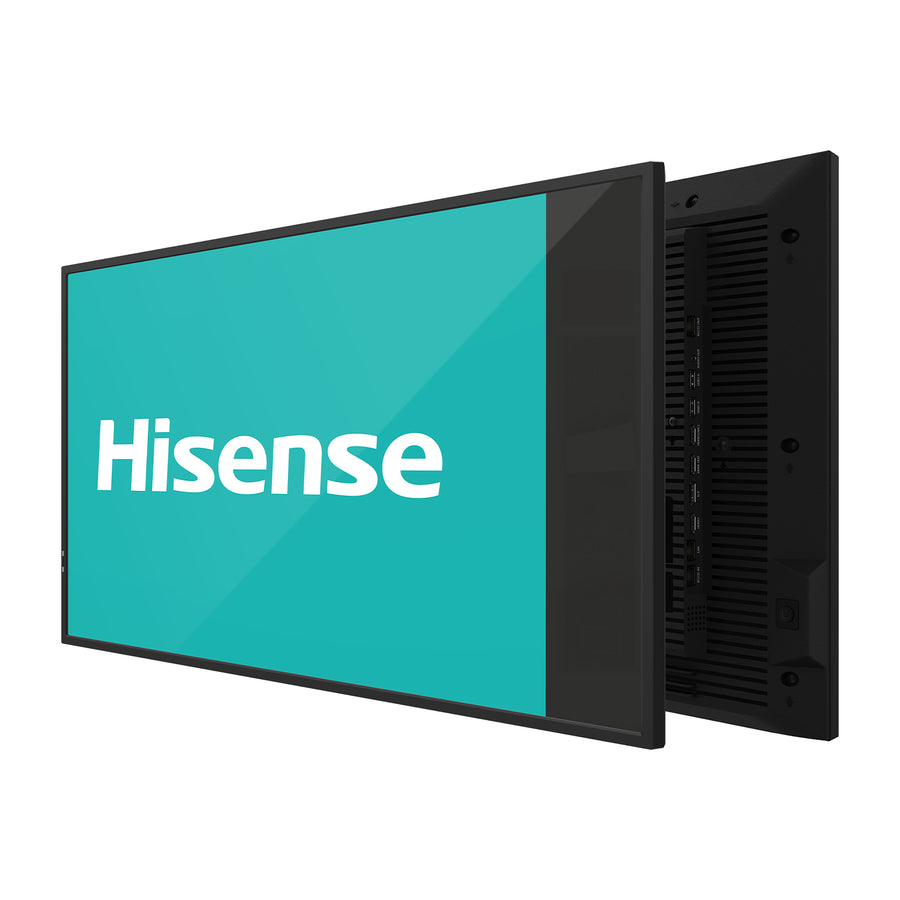

Hisense DM66GE Series 43-86-inch 4K UHD Digital Signage Display – 43-86DM66GE
The Hisense 43-86DM66GE is a family of 4K UHD digital signage displays from 43 to 86 inches, built for 24/7 operation. Models offer 500 nits typical brightness, 1200:1 typical contrast, Android 14 and Wi-Fi 6. Procure.ae supplies the Hisense 43-86DM66GE across the UAE for retail, corporate and information signage.
The DM66GE 4K UHD range offers a 3840 x 2160 panel with 500 nits typical brightness and 1200:1 typical contrast, and a 60 Hz refresh rate with 8 ms typical response time. The 178°/178° viewing angle and 72% NTSC typical colour gamut suit detailed content viewed from several positions. The manufacturer rates the LED lifetime at up to 50,000 hours and the displays for 7-day, 24-hour operation. Two 10 W built-in speakers provide audio.
The range runs Android 14 on an ARM Cortex-A73 quad-core processor with 4 GB DDR4 memory and 32 GB eMMC storage, and it supports the VisionInfo platform for content distribution and remote management. Connectivity includes three HDMI inputs, two USB-A ports, RS232 and IR control, a LAN (RJ45) port and an HDMI output. Dimensions, weight and VESA patterns differ by size, so confirm them for your chosen model with the Procure.ae team.
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD resolution
- 500-nit brightness
- 24/7 operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels at a 60 Hz refresh rate.
02
500-nit brightness
500 nits typical brightness with 1200:1 typical contrast.
03
24/7 operation
Rated for 7-day, 24-hour operation with LED lifetime up to 50,000 hours.
04
Android 14 platform
ARM Cortex-A73 quad-core processor with 4 GB DDR4 memory.
05
Wi-Fi 6 and Bluetooth 5.4
Dual-band 2.4/5.0 GHz Wi-Fi 6 with Bluetooth 5.4.
06
HDMI inputs
Three HDMI inputs (two HDMI 2.0 and one HDMI 2.1) with HDCP 2.3.
07
Built-in speakers
Two 10 W speakers for audio playback.
08
Landscape and portrait
Supports both orientations for signage layouts.
Specifications
31 specificationsGeneral
Key Features24/7 operation, 500 nits brightness, 4K UHD, Android 14, Wi-Fi 6, Bluetooth 5.4, HDMI 2.1 input, landscape and portrait
Model43-86DM66GE
TypeDigital Signage Display
What's in the BoxQuick setup guide, warranty card, power cord, remote controller and battery, RS232 converter cable
Display
BacklightD-LED
Brightness500 nits
Color Depth1.07 billion colours (8-bit + FRC)
Color Gamut72% NTSC
Contrast Ratio1200:1
Lamp LifeUp to 50,000 hours (LED)
OrientationLandscape & Portrait
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Viewing Angle178° / 178°
Performance
GraphicsMali-G57 MC1
Operating SystemAndroid 14
ProcessorARM Cortex-A73 quad-core
RAM4 GB DDR4
Storage32 GB eMMC
Audio
Speaker Output10 W × 2
Connectivity
BluetoothBluetooth 5.4
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI in × 3, USB-A × 2, HDMI out × 1, LAN (RJ45) × 1, RS232 in and out, IR in, 3.5 mm audio out
Wi-FiWi-Fi 6, 2.4/5.0 GHz dual-band
Power
Standby PowerLess than 0.5 W
Physical
Duty Cycle7 days a week, 24 hours a day
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Compliance
CertificationsCB, CE, cTUVus, FCC, RCM, ERP, CEC, South Africa Energy Efficiency, ENERGY STAR 8.0
IP RatingIP5X
Downloads
Manufacturer documents for the Hisense DM66GE Series 43-86-inch 4K UHD Digital Signage Display – 43-86DM66GE — datasheets, manuals, drawings and certificates.
- Datasheet – 43-86DM66GE
- User manual – Hisense DM66GE Series (4K UHD Digital Signage Display) / DM66GE Series (FHD Digital Signage Display)
- Certificate / compliance – Hisense DM66GE Series (4K UHD Digital Signage Display) / DM66GE Series (FHD Digital Signage Display)
- Certificate / compliance – Hisense DM66GE Series (4K UHD Digital Signage Display) / DM66GE Series (FHD Digital Signage Display)
Questions
Can’t find your answer? Ask on WhatsApp
Does the 43-86DM66GE come in 4K?
Yes. The DM66GE range has a 3840 x 2160 (4K UHD) resolution across the sizes in the sheet, which span 43 to 86 inches. Confirm the exact model before ordering.
Can the 43-86DM66GE run 24 hours a day?
Yes. The manufacturer rates the range for 7-day, 24-hour operation, with an LED lifetime of up to 50,000 hours. Standby consumption is below 0.5 W, and the operating range is 0 to 40 °C.
Which connections does the range offer?
The range includes three HDMI inputs, two USB-A ports, an HDMI output, a LAN (RJ45) port, RS232 input and output, an IR input and a 3.5 mm audio output. Some sizes also have a USB-C input, so check the model before ordering.
Can it be mounted in portrait orientation?
Yes. The range supports landscape and portrait orientation. Mounting patterns and weights differ by size, so Procure.ae can confirm the correct bracket for the model you choose. The Android 14 platform also works with the VisionInfo platform for content management.
Can I buy the 43-86DM66GE in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
