HisenseDigital SignageSKU 100DM66GE

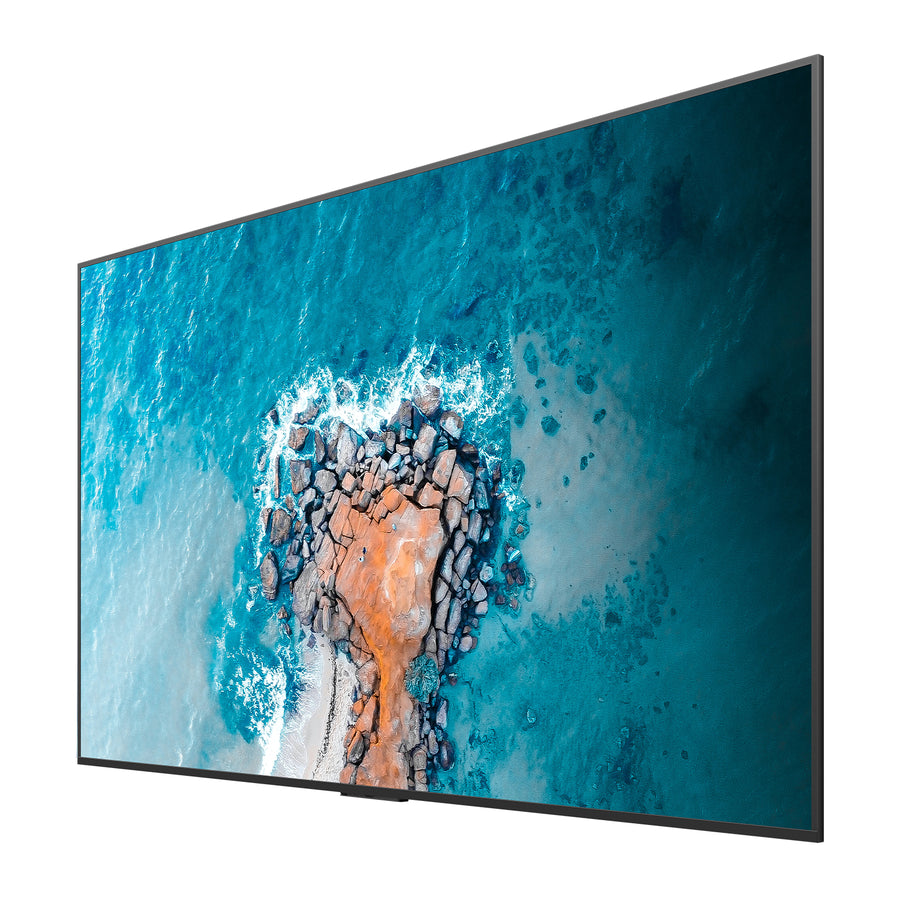

Hisense DM66GE Series 100-inch 4K UHD Digital Signage Display – 100DM66GE
The Hisense 100DM66GE is a 100-inch 4K UHD digital signage display designed for 24/7 operation. It offers 500 nits typical brightness, 6,000:1 typical contrast and Android 14 with Wi-Fi 6. Procure.ae supplies the Hisense 100DM66GE across the UAE for large-format retail, corporate and public signage.
The Hisense 100DM66GE provides a 3840 x 2160 (4K UHD) panel with 500 nits typical brightness and 6,000:1 typical contrast. Its 6.5 ms typical response time, 178°/178° viewing angle and 85% NTSC typical colour gamut suit detailed content viewed from several positions. The manufacturer rates the LED lifetime at up to 50,000 hours and the display for 7-day, 24-hour operation. Its built-in 15 W x 2 speakers provide audio for large rooms.
The DM66GE runs Android 14 on a quad-core ARM Cortex-A73 processor with 4 GB DDR4 memory and 32 GB eMMC storage, and it supports the VisionInfo platform for content distribution and remote management. Wireless connectivity includes dual-band Wi-Fi 6 and Bluetooth 5.4. The manufacturer lists VESA patterns of 600 x 400 mm in landscape and 1,000 x 600 mm in portrait, and the display weighs 59 kg net, so plan the mounting structure accordingly.
Screen Size
100 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD resolution
- 500-nit brightness
- 24/7 operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels on a 100-inch panel at 60 Hz.
02
500-nit brightness
500 nits typical brightness with 6,000:1 typical contrast.
03
24/7 operation
Rated for 7-day, 24-hour operation with LED lifetime up to 50,000 hours.
04
Android 14 platform
ARM Cortex-A73 quad-core processor with 4 GB DDR4 memory.
05
Wi-Fi 6 and Bluetooth 5.4
Dual-band 2.4/5.0 GHz Wi-Fi 6 and BT5.4.
06
Built-in speakers
Two 15 W speakers for audio playback.
07
Portrait and landscape
Supports both orientations for signage layouts.
08
Remote management
Works with the VisionInfo platform for content distribution.
Specifications
35 specificationsGeneral
Key Features7x24 operation, 500 nits brightness, Android 14, Wi-Fi 6, Bluetooth 5.4, landscape and portrait, built-in speakers, VisionInfo platform
Model100DM66GE
TypeDigital Signage Display
What's in the BoxQuick setup guide, warranty card, power cord, remote controller and AAA battery, RS232 converter cable
Display
BacklightD-LED
Bezel Size13.2 mm (top, left, right), 19 mm (bottom)
Brightness500 nits
Color Depth1.07 billion colours (8-bit + FRC)
Color Gamut85% NTSC
Contrast Ratio6,000:1
OrientationLandscape & Portrait
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size100 inch
Viewing Angle178° / 178°
Performance
GraphicsMali-G57 MC1
Operating SystemAndroid 14
ProcessorARM Cortex-A73 quad-core
RAM4 GB DDR4
Storage32 GB eMMC
Audio
Speaker Output15 W × 2
Connectivity
BluetoothBluetooth 5.4
Input Voltage100–240 V AC, 50/60 Hz
Wi-FiWi-Fi 6, 2.4/5.0 GHz dual-band
Power
Power Consumption257 W (typical), 510 W (maximum)
Standby PowerLess than 0.5 W
Physical
Dimensions2234.6 x 1285.6 x 86.5 mm
Duty Cycle7 days a week, 24 hours a day
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm (landscape), 1,000 x 600 mm (portrait)
Weight59 kg (net)
Compliance
CertificationsCB, CE, cTUVus, FCC, RCM, ERP, CEC, South Africa Energy Efficiency
IP RatingIP5X
Downloads
Manufacturer documents for the Hisense DM66GE Series 100-inch 4K UHD Digital Signage Display – 100DM66GE — datasheets, manuals, drawings and certificates.
- Datasheet – 100DM66GE
- User manual – Hisense DM66GE Series (4K UHD Digital Signage Display) / DM66GE Series (FHD Digital Signage Display)
- Certificate / compliance – Hisense DM66GE Series (4K UHD Digital Signage Display) / DM66GE Series (FHD Digital Signage Display)
- Certificate / compliance – Hisense DM66GE Series (4K UHD Digital Signage Display) / DM66GE Series (FHD Digital Signage Display)
Questions
Can’t find your answer? Ask on WhatsApp
Is the 100DM66GE a 4K display?
Yes. The 100DM66GE has a 3840 x 2160 resolution, which is 4K UHD, at 60 Hz. It uses D-LED backlighting with 500 nits typical brightness and 6,000:1 typical contrast. Its 178°/178° viewing angle suits viewers standing at several positions in a room.
Can the 100DM66GE run 24 hours a day?
Yes. The manufacturer rates the 100DM66GE for 7-day, 24-hour operation, with an LED lifetime of up to 50,000 hours. Standby consumption is below 0.5 W, and the operating range is 0 to 40 °C.
Is it suitable for a large boardroom or lobby?
Yes, the 100-inch format suits large rooms and lobbies where the content must be read from a distance. The panel supports landscape and portrait orientation and its speakers provide built-in audio.
What mounting does the 100DM66GE need?
The manufacturer lists a 600 x 400 mm VESA pattern in landscape and 1,000 x 600 mm in portrait, with four M8 screws. The display weighs 59 kg net, so a rated wall or floor mount is required. Procure.ae can confirm the bracket for your site.
Does the 100DM66GE connect to a network?
Yes. It supports dual-band Wi-Fi 6 and Bluetooth 5.4, and includes an RS232 converter cable for control. The Android 14 platform works with the VisionInfo platform for remote content management.
