HikvisionInteractive Flat PanelsSKU DS-D5A86RB/B3

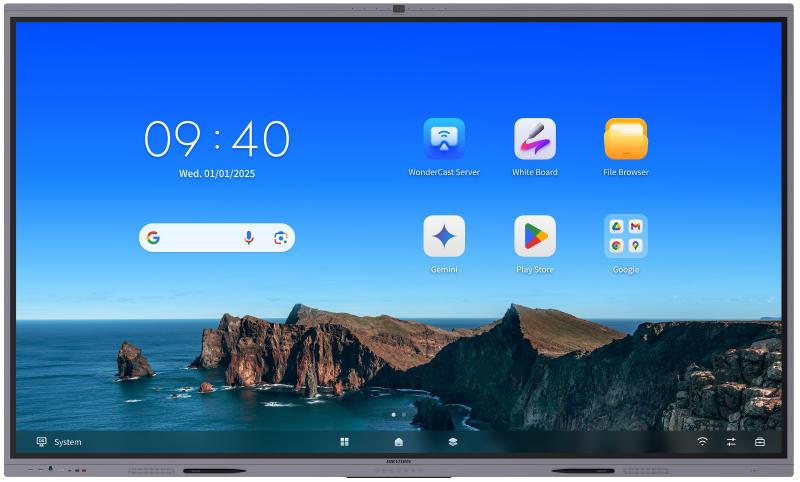

Hikvision WonderHub Value Series 86-inch 4K Interactive Flat Panel – DS-D5A86RB/B3
The Hikvision DS-D5A86RB/B3 is an 86-inch 4K interactive flat panel with a built-in 4K camera and 8-array microphone, for classrooms and video meetings. It runs Android 16 with 50-point multi-touch and a 400-nit IPS display. Procure.ae supplies the Hikvision DS-D5A86RB/B3 across the UAE.
The panel uses a 3840 x 2160 IPS display with 400 nits brightness, a 1,200:1 static contrast ratio and 178-degree viewing angles, with anti-glare tempered glass bonded with zero lamination. Up to 50-point multi-touch runs with 5 ms response time. The built-in camera supports 48 MP photos and 8 MP video with a 93.4-degree diagonal field angle and up to 4K resolution. An omni-directional 8-array microphone with echo reduction and noise cancellation picks up voices up to 12 m away, and two 20 W speakers are built in.
The B3 suits classrooms and meeting rooms that combine teaching, presentation and video conferencing in one unit. The camera switches between the Android system, an optional OPS module and a PC. The panel runs Android 16 with 8 GB RAM and 128 GB storage, and it supports the Windows system through a 195 x 30 x 180 mm OPS module. A built-in network switch chip removes the need for an external switch. The panel is wall-mounted on an 800 x 600 mm VESA pattern.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Interactive Flat Panel with Camera ...
- Built-in 4K camera
- 8-array microphone
- Android 16 system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Built-in 4K camera
Up to 4K resolution with 48 MP photos and 8 MP video.
02
8-array microphone
Omni-directional array with 12 m voice distance and echo reduction.
03
Android 16 system
Built-in Android 16 with EDLA certification, 8 GB RAM and 128 GB storage.
04
4K IPS display
3840 x 2160 resolution, 400 nits brightness and 1,200:1 static contrast.
05
50-point touch
Up to 50-point multi-touch with 5 ms touch response time.
06
Dual system option
Android and Windows, with an optional 195 x 30 x 180 mm OPS module.
07
Built-in network switch
Two 1000 Mbps LAN ports and Wi-Fi 6 with 2 x 2 MIMO.
08
Built-in audio
Two 20 W speakers for in-room sound.
Specifications
35 specificationsGeneral
Key FeaturesAndroid 16 system, Windows via optional OPS, 50-point multi-touch, 4K UHD display, built-in 4K camera, 8-array microphone, 2 × 20 W speakers
ModelDS-D5A86RB/B3
TypeInteractive Flat Panel with Camera and Microphone Array
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits
Camera4K camera; 48 MP photo / 8 MP video; 93.4° diagonal field angle
Color Depth10-bit (8-bit + FRC)
Color Gamut72% NTSC
Contrast Ratio1,200:1 (static); 15,000:1 (dynamic)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size86 inch
Touch Points50-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time5 ms
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 16
ProcessorQuad-core Cortex-A72 (2.2 GHz) + quad-core Cortex-A53 (1.8 GHz)
RAM8 GB
Storage128 GB
Audio
Microphone8-array omni-directional, echo reduction, 12 m voice distance
Speaker Output2 × 20 W
Connectivity
BluetoothBluetooth 5.4 (BLE)
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.1 TMDS × 3; USB 3.0 × 2 (front); USB 2.0 × 2 (rear); USB-C × 1 (USB 3.0, 15 W charging); LAN 1000 Mbps × 2; RS232 × 1; TF card slot × 1
Wi-FiWi-Fi 6 (802.11ax), 2.4 / 5 GHz, 2 × 2 MIMO
Power
Power Consumption210 W (average)
Physical
Dimensions1957.04 x 1173.7 x 95.8 mm (W x H x D, without wall attachment)
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
VESA Mount800 x 600 mm
Weight52.5 kg (net)
Downloads
Manufacturer documents for the Hikvision WonderHub Value Series 86-inch 4K Interactive Flat Panel – DS-D5A86RB/B3 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Hikvision DS-D5A86RB/B3?
It is the camera-equipped version of the 86-inch 4K interactive panel in the WonderHub Value Series. It adds a built-in 4K camera and an 8-array microphone to the Android 16 display, 50-point touch and 400-nit IPS panel.
How does the B3 differ from the A3?
The B3 includes a built-in camera and microphone array, which the A3 specifications do not list. Both share the 86-inch 4K display, Android 16 system and 50-point touch. The B3 is also slightly heavier and deeper in its wall-attachment dimensions.
Can the built-in camera be used for video conferencing?
The camera supports intelligent switching between the Android system, an optional OPS module and a PC. The manufacturer recommends running video conferencing software on the Windows system. Request a quote via WhatsApp or email for the full specification sheet and installation options.
How is the DS-D5A86RB/B3 mounted?
It mounts on an 800 x 600 mm VESA pattern with four M8 screw points, 25 mm deep, and a wall mount bracket is supplied. The panel measures 1957.04 x 1173.7 x 95.8 mm without the wall attachment and weighs 52.5 kg net.
Which video inputs does it have?
It has three HDMI 2.1 TMDS inputs (one front, two rear), an audio input, two LAN ports and RS232 control. HDMI 1 supports CEC and ARC. Request a quote via WhatsApp or email for the full specification sheet and installation options.
Can I buy the DS-D5A86RB/B3 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
