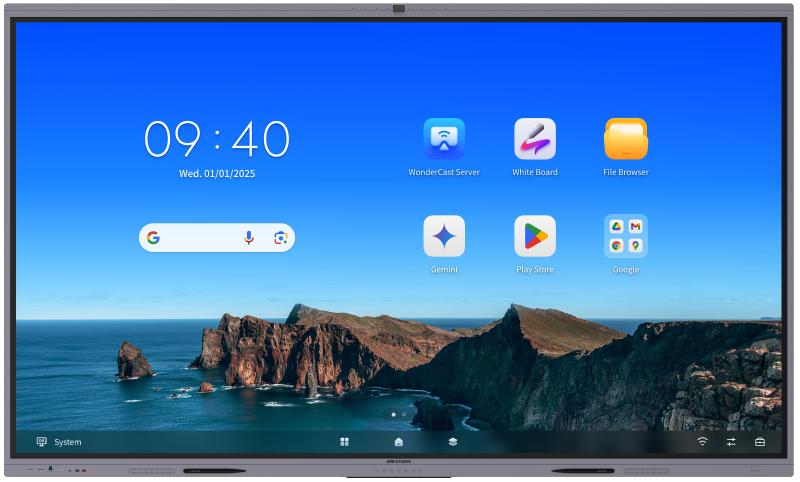

The Hikvision DS-D5A86RB/B3 is an 86-inch 4K interactive flat panel with a built-in 4K camera and 8-array microphone, for classrooms and video meetings. It runs Android 16 with 50-point multi-touch and a 400-nit IPS display. Procure.ae supplies the Hikvision DS-D5A86RB/B3 across the UAE.
The panel uses a 3840 x 2160 IPS display with 400 nits brightness, a 1,200:1 static contrast ratio and 178-degree viewing angles, with anti-glare tempered glass bonded with zero lamination. Up to 50-point multi-touch runs with 5 ms response time. The built-in camera supports 48 MP photos and 8 MP video with a 93.4-degree diagonal field angle and up to 4K resolution. An omni-directional 8-array microphone with echo reduction and noise cancellation picks up voices up to 12 m away, and two 20 W speakers are built in.
The B3 suits classrooms and meeting rooms that combine teaching, presentation and video conferencing in one unit. The camera switches between the Android system, an optional OPS module and a PC. The panel runs Android 16 with 8 GB RAM and 128 GB storage, and it supports the Windows system through a 195 x 30 x 180 mm OPS module. A built-in network switch chip removes the need for an external switch. The panel is wall-mounted on an 800 x 600 mm VESA pattern.
| Key Features | Android 16 system, Windows via optional OPS, 50-point multi-touch, 4K UHD display, built-in 4K camera, 8-array microphone, 2 × 20 W speakers |
| Model | DS-D5A86RB/B3 |
| Type | Interactive Flat Panel with Camera and Microphone Array |
| Aspect Ratio | 16:9 |
| Backlight | DLED |
| Brightness | 400 nits |
| Camera | 4K camera; 48 MP photo / 8 MP video; 93.4° diagonal field angle |
| Color Depth | 10-bit (8-bit + FRC) |
| Color Gamut | 72% NTSC |
| Contrast Ratio | 1,200:1 (static); 15,000:1 (dynamic) |
| Panel Technology | IPS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 5 ms |
| Screen Size | 86 inch |
| Touch Points | 50-point multi-touch |
| Touch Resolution | 32768 x 32768 |
| Touch Response Time | 5 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Operating System | Android 16 |
| Processor | Quad-core Cortex-A72 (2.2 GHz) + quad-core Cortex-A53 (1.8 GHz) |
| RAM | 8 GB |
| Storage | 128 GB |
| Microphone | 8-array omni-directional, echo reduction, 12 m voice distance |
| Speaker Output | 2 × 20 W |
| Bluetooth | Bluetooth 5.4 (BLE) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI 2.1 TMDS × 3; USB 3.0 × 2 (front); USB 2.0 × 2 (rear); USB-C × 1 (USB 3.0, 15 W charging); LAN 1000 Mbps × 2; RS232 × 1; TF card slot × 1 |
| Wi-Fi | Wi-Fi 6 (802.11ax), 2.4 / 5 GHz, 2 × 2 MIMO |
| Power Consumption | 210 W (average) |
| Dimensions | 1957.04 x 1173.7 x 95.8 mm (W x H x D, without wall attachment) |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 800 x 600 mm |
| Weight | 52.5 kg (net) |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
