HikvisionInteractive Flat PanelsSKU DS-D5B86RB/FL

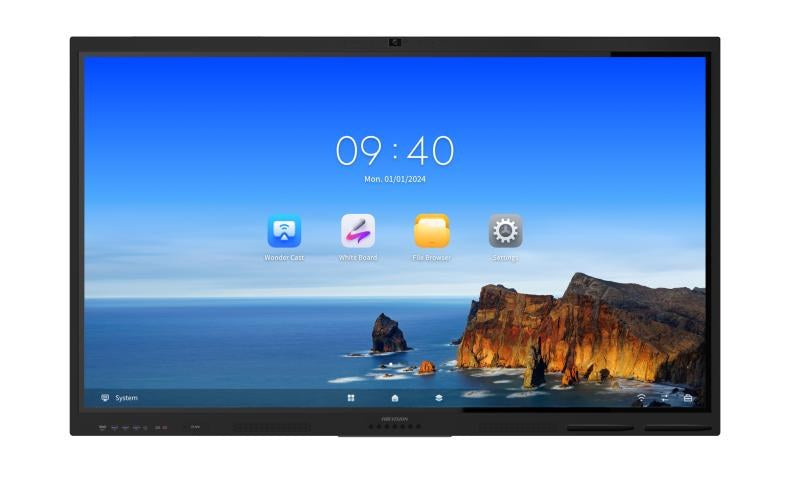

Hikvision WonderHub Value 86-inch Interactive Flat Panel – DS-D5B86RB/FL
The Hikvision DS-D5B86RB/FL is an 86-inch 4K UHD interactive flat panel for classrooms, meeting rooms and training spaces. It offers 40-point multi-touch, 400 nits typical brightness and Android 13, with an optional Windows OPS module. Procure.ae supplies the Hikvision DS-D5B86RB/FL across the UAE.
The DS-D5B86RB/FL pairs a 3840 x 2160 (4K UHD) VA panel with 400 nits typical brightness, a 5,000:1 static contrast ratio and 10-bit (8-bit + FRC) colour depth. Its 40-point multi-touch layer responds in under 5 ms, with touch precision of ±1 mm across at least 90% of the touching area. The 3.2 mm anti-glare glass has 9H pencil hardness. An 8-array microphone with echo reduction and noise cancellation picks up voices up to 12 m away, and two built-in 20 W speakers cover 200 Hz to 20 kHz.
The panel runs Android 13 with 8 GB RAM and 128 GB storage. A Windows system can run alongside it through the optional 195 x 30 x 180 mm OPS module, and the manufacturer recommends video conferencing software on the Windows side. Wireless connectivity covers Wi-Fi on 2.4 GHz and 5 GHz and Bluetooth 5.2, with two 100 Mbps LAN ports. It suits classrooms and meeting rooms that need one display for touch, video conferencing and Android or PC content.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (typical)
Type
Interactive Flat Panel
- 4K UHD panel
- 40-point multi-touch
- Android and Windows options
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 resolution on an 86-inch VA panel with 400 nits typical brightness.
02
40-point multi-touch
Touch response under 5 ms and a touch resolution of 32767 x 32767.
03
Android and Windows options
Android 13 runs on the panel, and an optional 195 x 30 x 180 mm OPS module adds Windows.
04
Anti-glare glass
3.2 mm anti-glare glass with 9H pencil hardness and 7 Mohs hardness.
05
Microphone array
8-array omni-directional layout with echo reduction and noise cancellation, for voices up to 12 m away.
06
Built-in speakers
Two 20 W speakers with a 200 Hz to 20 kHz frequency response.
07
Wireless connectivity
Wi-Fi 802.11 a/b/g/n/ac/ax on 2.4 GHz and 5 GHz, plus Bluetooth 5.2 BLE.
Specifications
52 specificationsGeneral
Key FeaturesAndroid 13 with optional Windows OPS, 40-point touch, 4K UHD, 8-array microphone, 2 × 20 W speakers, 400 nits typical
ModelDS-D5B86RB/FL
TypeInteractive Flat Panel
What's in the BoxWall-mount bracket, hook, user manual, stylus × 2, packing list, 1.5 m EU power cable, remote controller
Display
Aspect Ratio16:9
Brightness400 nits (typical)
CameraUp to 4K; up to 48 MP photos (Android)
Color Depth10 bit (8 bit + FRC)
Color Gamut72% NTSC (typical)
Contrast Ratio5,000:1 (static)
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size86 inch
Touch Accuracy±1 mm (≥ 90% touching area)
Touch Points40-point multi-touch
Touch Resolution32767 x 32767
Touch Response TimeUnder 5 ms
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsMali-G52 MP2
Operating SystemAndroid 13.0
ProcessorCortex-A55 quad-core, 1.92 GHz
RAM8 GB
Storage128 GB
Audio
Audio InAudio In × 1
Audio OutAudio Out × 1
Frequency Response200 Hz to 20 kHz
Microphone8-array omni-directional, 12 m voice distance
Speaker Output2 × 20 W
Connectivity
BluetoothBluetooth 5.2 (BLE)
EthernetLAN 100 Mbps × 2
HDMI InputsHDMI 2.0 × 2
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional OPS module, 195 x 30 x 180 mm
ProtocolsHDCP 1.4 / 2.2 / 2.3
Serial PortRS232 × 1
Touch USB PortsTOUCH-USB 2.0 × 1
USB PortsUSB 3.0 × 3, USB 2.0 × 2
USB-C PortsUSB-C × 1 (USB 2.0)
Wi-Fi2.4 GHz / 5 GHz, 802.11 a/b/g/n/ac/ax
Power
Power Consumption268 W (average), 326 W (max)
Standby Power0.5 W or less
Physical
Dimensions1960.44 x 1177.74 x 82.5 mm
Duty Cycle7 × 16 hours
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions2157 x 1345 x 223 mm
Shipping Weight79.01 kg
Surface Protection3.2 mm anti-glare glass, 9H pencil hardness
VESA Mount800 x 600 mm (4 × M8)
Weight60.06 kg
Downloads
Manufacturer documents for the Hikvision WonderHub Value 86-inch Interactive Flat Panel – DS-D5B86RB/FL — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the Hikvision DS-D5B86RB/FL offer?
It has a 3840 x 2160 (4K UHD) resolution and 400 nits typical brightness. The VA panel has a 5,000:1 static contrast ratio, 10-bit (8-bit + FRC) colour depth, a 60 Hz refresh rate and 178° horizontal and vertical viewing angles.
Does the DS-D5B86RB/FL support multi-touch input?
Yes. It supports 40-point multi-touch, with touch response under 5 ms, touch precision of ±1 mm across at least 90% of the touching area and a touch resolution of 32767 x 32767. Two styluses are included in the package.
Can the DS-D5B86RB/FL run Windows software?
Yes, with the optional 195 x 30 x 180 mm OPS module. The panel runs Android 13 by default, and the OPS module adds a Windows system. The manufacturer recommends running video conferencing software on Windows, and the panel switches between the Android system, OPS and PC.
Is the DS-D5B86RB/FL suitable for a classroom or meeting room?
Yes. The 86-inch 4K panel, 40-point touch, 8-array microphone with a 12 m voice distance and front multi-button layout are designed for classroom and meeting use. The manufacturer's specifications do not state a maximum room size, so Procure.ae can advise on sizing for your room.
How is the DS-D5B86RB/FL mounted and what VESA pattern does it use?
It mounts to the wall with the supplied bracket and hook, on an 800 x 600 mm VESA pattern with four M8 fixings at 25 mm. Without the wall attachment it measures 1960.44 x 1177.74 x 82.5 mm and weighs 60.06 kg, so confirm the wall structure before installation.
