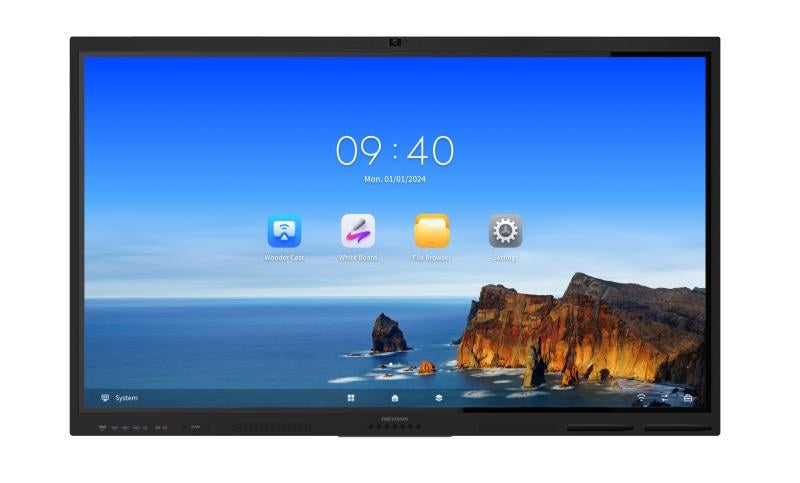

Hikvision WonderHub Value 86-inch Interactive Flat Panel – DS-D5B86RB/FL
The Hikvision DS-D5B86RB/FL is an 86-inch 4K UHD interactive flat panel for classrooms, meeting rooms and training spaces. It offers 40-point multi-touch, 400 nits typical brightness and Android 13, with an optional Windows OPS module. Procure.ae supplies the Hikvision DS-D5B86RB/FL across the UAE.
The DS-D5B86RB/FL pairs a 3840 x 2160 (4K UHD) VA panel with 400 nits typical brightness, a 5,000:1 static contrast ratio and 10-bit (8-bit + FRC) colour depth. Its 40-point multi-touch layer responds in under 5 ms, with touch precision of ±1 mm across at least 90% of the touching area. The 3.2 mm anti-glare glass has 9H pencil hardness. An 8-array microphone with echo reduction and noise cancellation picks up voices up to 12 m away, and two built-in 20 W speakers cover 200 Hz to 20 kHz.
The panel runs Android 13 with 8 GB RAM and 128 GB storage. A Windows system can run alongside it through the optional 195 x 30 x 180 mm OPS module, and the manufacturer recommends video conferencing software on the Windows side. Wireless connectivity covers Wi-Fi on 2.4 GHz and 5 GHz and Bluetooth 5.2, with two 100 Mbps LAN ports. It suits classrooms and meeting rooms that need one display for touch, video conferencing and Android or PC content.
Key features
Specifications
| Key Features | Android 13 with optional Windows OPS, 40-point touch, 4K UHD, 8-array microphone, 2 × 20 W speakers, 400 nits typical |
| Model | DS-D5B86RB/FL |
| Type | Interactive Flat Panel |
| What's in the Box | Wall-mount bracket, hook, user manual, stylus × 2, packing list, 1.5 m EU power cable, remote controller |
| Aspect Ratio | 16:9 |
| Brightness | 400 nits (typical) |
| Camera | Up to 4K; up to 48 MP photos (Android) |
| Color Depth | 10 bit (8 bit + FRC) |
| Color Gamut | 72% NTSC (typical) |
| Contrast Ratio | 5,000:1 (static) |
| Panel Technology | VA |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 5 ms |
| Screen Size | 86 inch |
| Touch Accuracy | ±1 mm (≥ 90% touching area) |
| Touch Points | 40-point multi-touch |
| Touch Resolution | 32767 x 32767 |
| Touch Response Time | Under 5 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Graphics | Mali-G52 MP2 |
| Operating System | Android 13.0 |
| Processor | Cortex-A55 quad-core, 1.92 GHz |
| RAM | 8 GB |
| Storage | 128 GB |
| Audio In | Audio In × 1 |
| Audio Out | Audio Out × 1 |
| Frequency Response | 200 Hz to 20 kHz |
| Microphone | 8-array omni-directional, 12 m voice distance |
| Speaker Output | 2 × 20 W |
| Bluetooth | Bluetooth 5.2 (BLE) |
| Ethernet | LAN 100 Mbps × 2 |
| HDMI Inputs | HDMI 2.0 × 2 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | Optional OPS module, 195 x 30 x 180 mm |
| Protocols | HDCP 1.4 / 2.2 / 2.3 |
| Serial Port | RS232 × 1 |
| Touch USB Ports | TOUCH-USB 2.0 × 1 |
| USB Ports | USB 3.0 × 3, USB 2.0 × 2 |
| USB-C Ports | USB-C × 1 (USB 2.0) |
| Wi-Fi | 2.4 GHz / 5 GHz, 802.11 a/b/g/n/ac/ax |
| Power Consumption | 268 W (average), 326 W (max) |
| Standby Power | 0.5 W or less |
| Dimensions | 1960.44 x 1177.74 x 82.5 mm |
| Duty Cycle | 7 × 16 hours |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 2157 x 1345 x 223 mm |
| Shipping Weight | 79.01 kg |
| Surface Protection | 3.2 mm anti-glare glass, 9H pencil hardness |
| VESA Mount | 800 x 600 mm (4 × M8) |
| Weight | 60.06 kg |
