HikvisionInteractive Flat PanelsSKU DS-D5C98RB/A2L

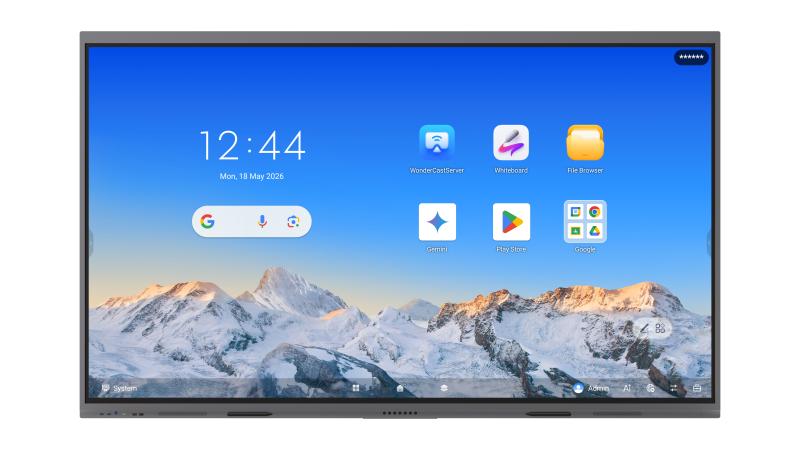

Hikvision WonderHub Select 98-inch 4K Interactive Flat Panel – DS-D5C98RB/A2L
The Hikvision WonderHub Select 98-inch 4K Interactive Flat Panel (DS-D5C98RB/A2L) is a large all-in-one touch display for classrooms, meeting rooms and training spaces. It has a 3840 x 2160 panel at 600 nits typical brightness, 50-point multi-touch and Android 16.0. Procure.ae supplies it across the UAE as an authorised reseller.
The 98-inch panel is 3840 x 2160 with 600 nits typical brightness, 10-bit colour depth and a 72% NTSC colour gamut. Its anti-glare, anti-fingerprint glass has 9H pencil hardness and 25% haze. Touch supports up to 50 points, with a response time of 2 ms or less and precision of ±0.5 mm. Processing comes from quad-core Cortex-A76 at 2.4 GHz and quad-core Cortex-A55 at 1.8 GHz, with 8 GB RAM and 128 GB storage. Built-in loudspeakers rated 2 x 20 W plus 25 W complete the unit.
The model is also listed as DS-D5C98RB/A2L(EDLA). It fits classrooms, meeting rooms and training spaces that need one display for annotation, casting and video conferencing. The built-in whiteboard handles handwriting recognition, graphics recognition and document insertion. Video conferencing software is recommended on the Windows system, which runs through the optional 195 x 30 x 180 mm OPS module. Two 1000 Mbps LAN ports and a network switch chip remove the need for an external switch.
Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
600 nits (typical)
Type
Interactive Flat Panel
- 50-point touch
- Anti-glare glass
- Android 16 system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
50-point touch
up to 50-point multi-touch with 2 ms or less response and ±0.5 mm precision.
02
Anti-glare glass
anti-glare and anti-fingerprint glass with 9H pencil hardness and 25% haze.
03
Android 16 system
Android 16.0 runs on 8 GB RAM and 128 GB storage, with 16 GB and 256 GB options.
04
Windows option
an optional 195 x 30 x 180 mm OPS module runs Windows.
05
Built-in whiteboard
handwriting recognition, graphics recognition and document insertion.
06
WonderCast screen casting
casts from up to 9 devices at the same time.
07
Built-in network switch
two 1000 Mbps LAN ports with a switch chip remove the need for an external switch.
08
Dual USB-C ports
Type-C ports support DP 1.2 input and up to 100 W charging.
Specifications
48 specificationsGeneral
Key Features4K UHD, 50-point multi-touch, Android 16 with optional Windows OPS, built-in whiteboard, WonderCast casting for up to 9 devices, built-in network switch, AI Assistant and AI Notes
ModelDS-D5C98RB/A2L
TypeInteractive Flat Panel
What's in the BoxWall mount bracket, hook, user manual, touch pen, 3 m touch USB cable, 3.5 m HDMI cable, 3 m power cable, remote control, cleaning cloth
Display
Aspect Ratio16:9
BacklightDLED
Brightness600 nits (typical)
Color Depth10 bit
Color Gamut72% NTSC (typical)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size98 inch
Touch Accuracy±0.5 mm
Touch Points50-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time2 ms or less
Viewing Angle178° horizontal / 178° vertical
Performance
Duty Cycle7 x 16 hours
Operating SystemAndroid 16.0
ProcessorQuad-core Cortex-A76 at 2.4 GHz and quad-core Cortex-A55 at 1.8 GHz; Mali-G610 MC4 GPU
RAM8 GB (16 GB optional)
Storage128 GB (256 GB optional)
Audio
Audio InAudio × 1
Audio OutAudio × 1, SPDIF × 1
Speaker Output2 x 20 W + 25 W
Connectivity
BluetoothBluetooth 5.4 (BLE)
ConnectivityWi-Fi 6 (2 x 2 MIMO), Bluetooth 5.4, NFC card reader (13.56 MHz)
EthernetLAN (1000 Mbps) × 2
HDMI InputsHDMI 2.1 × 3 (front × 1, rear × 2)
HDMI OutputsHDMI 2.1 × 1
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional OPS (195 x 30 x 180 mm)
ProtocolsHDCP 2.3, 2.0, 1.4; HDMI CEC
Serial PortRS232 × 1
Touch USB PortsTOUCH-USB 3.0 × 1 (front), TOUCH-USB 2.0 × 2 (rear)
USB PortsUSB 3.0 × 4, USB 2.0 × 1
USB-C PortsType-C × 2 (DP 1.2 input, 100 W charging)
VGA InputVGA × 1
Power
Power ConsumptionUnder 325 W (average)
Standby Power0.5 W or less
Physical
Dimensions2219.8 x 1341.35 x 104.61 mm (without wall attachment)
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Surface Protection9H pencil hardness, 7 Mohs; anti-glare and anti-fingerprint glass, 25% haze
VESA Mount1000 x 400 mm (4 × M8, 20 mm)
Weight99.6 kg (net)
Compliance
CertificationsCE, CB, LOA, EDLA
Downloads
Manufacturer documents for the Hikvision WonderHub Select 98-inch 4K Interactive Flat Panel – DS-D5C98RB/A2L — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the DS-D5C98RB/A2L run Windows as well as Android?
Yes, with the optional OPS module. Android 16.0 is built in, and the optional 195 x 30 x 180 mm OPS module adds a Windows system. Video conferencing software is recommended to run on the Windows system.
Do I need an external network switch?
No. The display has a built-in network switch chip and two 1000 Mbps LAN ports. Wi-Fi 6 with 2 x 2 MIMO on 2.4 GHz and 5 GHz is also built in, and Bluetooth 5.4 is included.
Is the 98-inch model suitable for large classrooms?
Yes. The 98-inch 3840 x 2160 panel, 50-point touch, built-in whiteboard and multi-button front design suit large classrooms and training rooms. AI Assistant, AI Identify and AI Notes come free for one year, with 6,000 minutes of AI Notes.
How is it wall-mounted?
It uses a 1000 x 400 mm VESA pattern with four M8 screws, 20 mm deep, and a wall mount bracket and hook are in the box. Without the wall attachment it measures 2219.8 x 1341.35 x 104.61 mm and weighs 99.6 kg net, so confirm the wall structure can carry that load before mounting.
How many devices can cast to the screen at once?
Up to 9 devices can cast to the screen simultaneously using the built-in WonderCast software, so several presenters can share from their own devices. The whiteboard can also insert documents, which keeps shared material on the same display.
Can I buy the DS-D5C98RB/A2L in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
