Hikvision · DS-D5C98RB/A2L · Interactive Flat Panel

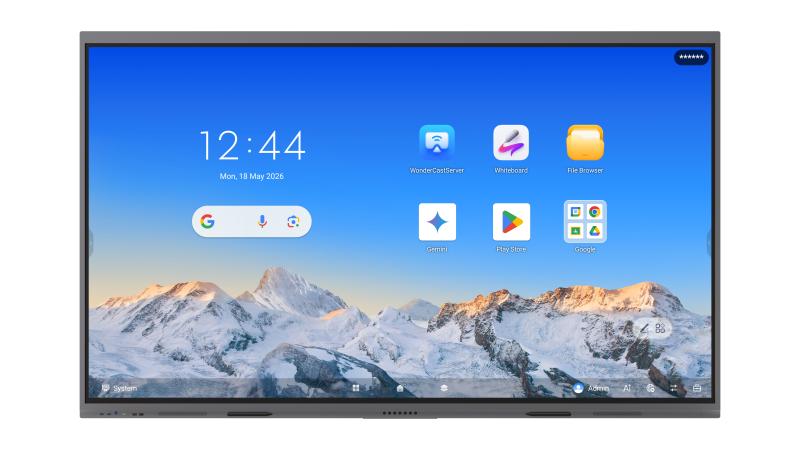

Hikvision WonderHub Select 98-inch 4K Interactive Flat Panel – DS-D5C98RB/A2L

Hikvision WonderHub Select 98-inch 4K Interactive Flat Panel – DS-D5C98RB/A2L

The Hikvision WonderHub Select 98-inch 4K Interactive Flat Panel (DS-D5C98RB/A2L) is a large all-in-one touch display for classrooms, meeting rooms and training spaces. It has a 3840 x 2160 panel at 600 nits typical brightness, 50-point multi-touch and Android 16.0. Procure.ae supplies it across the UAE as an authorised reseller.

The 98-inch panel is 3840 x 2160 with 600 nits typical brightness, 10-bit colour depth and a 72% NTSC colour gamut. Its anti-glare, anti-fingerprint glass has 9H pencil hardness and 25% haze. Touch supports up to 50 points, with a response time of 2 ms or less and precision of ±0.5 mm. Processing comes from quad-core Cortex-A76 at 2.4 GHz and quad-core Cortex-A55 at 1.8 GHz, with 8 GB RAM and 128 GB storage. Built-in loudspeakers rated 2 x 20 W plus 25 W complete the unit.

The model is also listed as DS-D5C98RB/A2L(EDLA). It fits classrooms, meeting rooms and training spaces that need one display for annotation, casting and video conferencing. The built-in whiteboard handles handwriting recognition, graphics recognition and document insertion. Video conferencing software is recommended on the Windows system, which runs through the optional 195 x 30 x 180 mm OPS module. Two 1000 Mbps LAN ports and a network switch chip remove the need for an external switch.

Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
600 nits (typical)
Type
Interactive Flat Panel
Weight
99.6 kg (net)

Key features

01
50-point touch
up to 50-point multi-touch with 2 ms or less response and ±0.5 mm precision.
02
Anti-glare glass
anti-glare and anti-fingerprint glass with 9H pencil hardness and 25% haze.
03
Android 16 system
Android 16.0 runs on 8 GB RAM and 128 GB storage, with 16 GB and 256 GB options.
04
Windows option
an optional 195 x 30 x 180 mm OPS module runs Windows.
05
Built-in whiteboard
handwriting recognition, graphics recognition and document insertion.
06
WonderCast screen casting
casts from up to 9 devices at the same time.
07
Built-in network switch
two 1000 Mbps LAN ports with a switch chip remove the need for an external switch.
08
Dual USB-C ports
Type-C ports support DP 1.2 input and up to 100 W charging.

Specifications

General
Key Features4K UHD, 50-point multi-touch, Android 16 with optional Windows OPS, built-in whiteboard, WonderCast casting for up to 9 devices, built-in network switch, AI Assistant and AI Notes
ModelDS-D5C98RB/A2L
TypeInteractive Flat Panel
What's in the BoxWall mount bracket, hook, user manual, touch pen, 3 m touch USB cable, 3.5 m HDMI cable, 3 m power cable, remote control, cleaning cloth
Display
Aspect Ratio16:9
BacklightDLED
Brightness600 nits (typical)
Color Depth10 bit
Color Gamut72% NTSC (typical)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size98 inch
Touch Accuracy±0.5 mm
Touch Points50-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time2 ms or less
Viewing Angle178° horizontal / 178° vertical
Performance
Duty Cycle7 x 16 hours
Operating SystemAndroid 16.0
ProcessorQuad-core Cortex-A76 at 2.4 GHz and quad-core Cortex-A55 at 1.8 GHz; Mali-G610 MC4 GPU
RAM8 GB (16 GB optional)
Storage128 GB (256 GB optional)
Audio
Audio InAudio × 1
Audio OutAudio × 1, SPDIF × 1
Speaker Output2 x 20 W + 25 W
Connectivity
BluetoothBluetooth 5.4 (BLE)
ConnectivityWi-Fi 6 (2 x 2 MIMO), Bluetooth 5.4, NFC card reader (13.56 MHz)
EthernetLAN (1000 Mbps) × 2
HDMI InputsHDMI 2.1 × 3 (front × 1, rear × 2)
HDMI OutputsHDMI 2.1 × 1
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional OPS (195 x 30 x 180 mm)
ProtocolsHDCP 2.3, 2.0, 1.4; HDMI CEC
Serial PortRS232 × 1
Touch USB PortsTOUCH-USB 3.0 × 1 (front), TOUCH-USB 2.0 × 2 (rear)
USB PortsUSB 3.0 × 4, USB 2.0 × 1
USB-C PortsType-C × 2 (DP 1.2 input, 100 W charging)
VGA InputVGA × 1
Power
Power ConsumptionUnder 325 W (average)
Standby Power0.5 W or less
Physical
Dimensions2219.8 x 1341.35 x 104.61 mm (without wall attachment)
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Surface Protection9H pencil hardness, 7 Mohs; anti-glare and anti-fingerprint glass, 25% haze
VESA Mount1000 x 400 mm (4 × M8, 20 mm)
Weight99.6 kg (net)
Compliance
CertificationsCE, CB, LOA, EDLA
