HikvisionInteractive Flat PanelsSKU DS-D5B75RB/EP

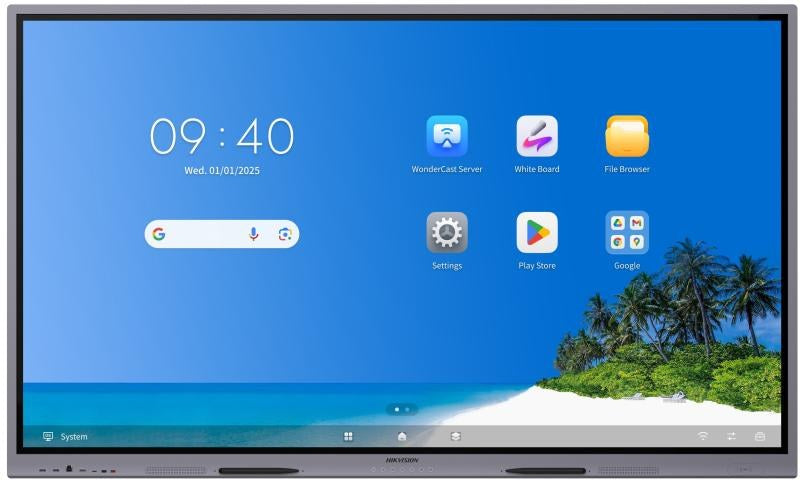

Hikvision WonderHub 75-inch 4K Interactive Flat Panel – DS-D5B75RB/EP
The Hikvision WonderHub 75-inch 4K interactive flat panel, model DS-D5B75RB/EP, suits large classrooms, meeting rooms and boardrooms that need touch writing and screen casting. It pairs a 3840 x 2160 VA display with up to 50-point multi-touch and an Android 16 system with 8 GB RAM. Procure.ae supplies the Hikvision DS-D5B75RB/EP in the UAE, with delivery and installation.
The 75-inch VA panel offers 3840 x 2160 resolution, 450 nits typical brightness, 5,000:1 static contrast and a 5 ms response time, with 178-degree viewing angles and 10-bit colour. Touch registers up to 50 points, with a response time of 2 ms or less and precision of ±0.5 mm. Android 16 runs on an eight-core processor with 8 GB RAM and 128 GB of built-in storage. The panel includes a built-in whiteboard, a 13.56 MHz card reader and WonderCast screen casting for up to nine devices.
The optional 195 x 30 x 180 mm OPS module adds a Windows system, and the manufacturer recommends running video conference software on Windows. Inputs include three HDMI 2.1 ports, VGA and two 65 W USB-C ports with DP IN 1.4. Arabic is in the on-screen language list, and a built-in network switch removes the need for an external one. Compared with the 65-inch DS-D5B65RB/EP, this 75-inch model is heavier at 45.1 kg net and uses an 800 x 400 mm VESA pattern. The alternate model code is DS-D5B75RB/EP(EDLA).
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits (typical)
Type
Interactive Flat Panel
- Android 16 platform
- 4K display
- 50-point touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 16 platform
Built-in Android 16 system with EDLA certification and 8 GB RAM.
02
4K display
3840 x 2160 VA panel with 450 nits typical brightness and 5,000:1 static contrast.
03
50-point touch
Up to 50-point multi-touch with a response time of 2 ms or less.
04
Optional Windows OPS
A 195 x 30 x 180 mm module adds a Windows system alongside Android.
05
Built-in whiteboard
Handwriting recognition, graphics recognition and document insertion.
06
WonderCast screen casting
Casts from up to nine devices at the same time.
07
Built-in network switch
Two 1000 Mbps LAN ports remove the need for an external network switch.
08
AI tools
AI Assistant, AI Identify and AI Notes, with 6,000 minutes of AI Notes included for one year.
Specifications
49 specificationsGeneral
Key FeaturesAndroid 16 with EDLA certification, 4K display, 50-point touch, Optional Windows OPS module, Built-in whiteboard, WonderCast for up to 9 devices, Built-in network switch, AI Assistant and AI Notes
ModelDS-D5B75RB/EP
TypeInteractive Flat Panel
What's in the BoxWall-mount bracket, hook, touch pen, 3M touch USB cable, 3.5 m HDMI cable, power cable, remote control, cleaning cloth, user manual
Display
Aspect Ratio16:9
BacklightDLED
Brightness450 nits (typical)
Color Depth10 bit (8 bit + FRC)
Color Gamut72% NTSC (typical)
Contrast Ratio5,000:1 (static); 30,000:1 (dynamic)
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size75 inch
Touch Accuracy±0.5 mm (90% or more of touching area)
Touch Points50-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time2 ms or less
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 16
ProcessorQuad-core Cortex-A72 at 2.2 GHz and quad-core Cortex-A53 at 1.8 GHz
RAM8 GB, plus up to 8 GB virtual RAM
Storage128 GB
Audio
DisplayPortDP IN 1.4 via two 65 W USB-C ports
Speaker Output2 × 20 W + 25 W
Connectivity
BluetoothBluetooth 5.4 (BLE)
EthernetLAN 1000 Mbps × 2 (rear)
HDMI InputsHDMI 2.1 TMDS × 3 (front × 1, rear × 2)
HDMI OutputsHDMI 2.1 TMDS × 1 (rear)
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional OPS module, 195 x 30 x 180 mm
PortsUSB 3.0 × 3, USB 2.0 × 2, USB-C × 2 (65 W), SPDIF out × 1, audio in and out × 1 each
Serial PortRS232 × 1 (rear)
Touch USB PortsUSB 3.0 × 1 (front), USB 2.0 × 2 (rear)
VGA InputVGA × 1 (rear)
Wi-FiWi-Fi 6, 802.11 a/b/g/n/ac/ax, 2 × 2 MIMO, 2.4 GHz and 5 GHz
Power
Power ConsumptionUnder 189 W (average)
Standby Power0.5 W or less
Physical
Dimensions1709.83 x 1017.34 x 107.1 mm (with wall attachment)
MountingWall mount
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1907 x 1160 x 223 mm
Shipping Weight62.4 kg (gross)
Surface ProtectionAnti-glare, anti-fingerprint glass; 9H pencil hardness
VESA Mount800 x 400 mm
Weight45.1 kg (net)
Compliance
CertificationsEDLA certified
Downloads
Manufacturer documents for the Hikvision WonderHub 75-inch 4K Interactive Flat Panel – DS-D5B75RB/EP — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Hikvision DS-D5B75RB/EP support Arabic?
Yes. The manufacturer language list includes Arabic, along with English, French, German, Spanish, Portuguese and Simplified Chinese, among others. The list also includes Japanese, Korean, Russian, Turkish and Thai, and Arabic suits Arabic-speaking teams and classes.
Can it run Windows as well as Android?
Yes, with the optional OPS module, which measures 195 x 30 x 180 mm. The manufacturer recommends running video conference software on the Windows system, while Android 16 runs on the panel itself.
Which VESA pattern does the 75-inch model use?
The 75-inch DS-D5B75RB/EP uses an 800 x 400 mm VESA pattern with four M8 holes at 25 mm depth. A wall-mount bracket is supplied, and the panel weighs 45.1 kg net, so confirm the wall and mounting structure can carry that load.
How responsive is the touch surface?
Up to 50 touch points, with a response time of 2 ms or less and precision of ±0.5 mm across 90% or more of the touching area. Touch resolution is 32768 x 32768, with USB 3.0 touch at the front and USB 2.0 touch at the rear.
Is it suited to large classroom or meeting room use?
Yes. The front has a multi-button design, a USB 3.0 port and a USB-C port with 65 W charging, which suits classroom and meeting use alongside the built-in whiteboard and WonderCast casting.
