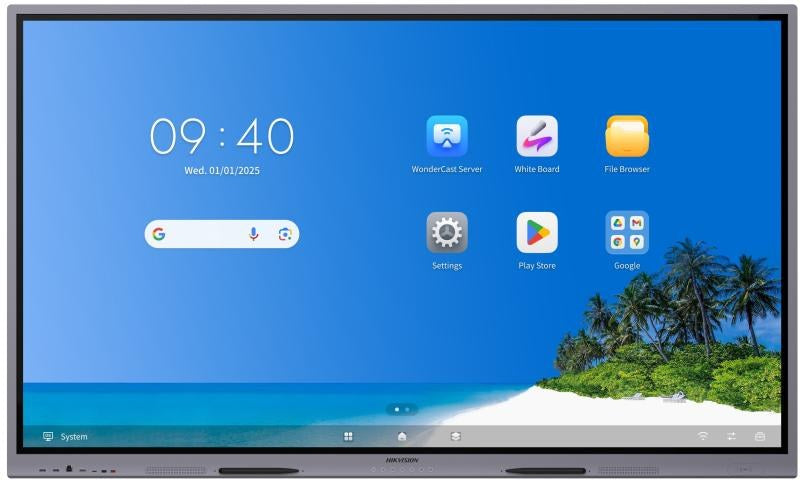

Hikvision WonderHub 75-inch 4K Interactive Flat Panel – DS-D5B75RB/EP
The Hikvision WonderHub 75-inch 4K interactive flat panel, model DS-D5B75RB/EP, suits large classrooms, meeting rooms and boardrooms that need touch writing and screen casting. It pairs a 3840 x 2160 VA display with up to 50-point multi-touch and an Android 16 system with 8 GB RAM. Procure.ae supplies the Hikvision DS-D5B75RB/EP in the UAE, with delivery and installation.
The 75-inch VA panel offers 3840 x 2160 resolution, 450 nits typical brightness, 5,000:1 static contrast and a 5 ms response time, with 178-degree viewing angles and 10-bit colour. Touch registers up to 50 points, with a response time of 2 ms or less and precision of ±0.5 mm. Android 16 runs on an eight-core processor with 8 GB RAM and 128 GB of built-in storage. The panel includes a built-in whiteboard, a 13.56 MHz card reader and WonderCast screen casting for up to nine devices.
The optional 195 x 30 x 180 mm OPS module adds a Windows system, and the manufacturer recommends running video conference software on Windows. Inputs include three HDMI 2.1 ports, VGA and two 65 W USB-C ports with DP IN 1.4. Arabic is in the on-screen language list, and a built-in network switch removes the need for an external one. Compared with the 65-inch DS-D5B65RB/EP, this 75-inch model is heavier at 45.1 kg net and uses an 800 x 400 mm VESA pattern. The alternate model code is DS-D5B75RB/EP(EDLA).
Key features
Specifications
| Key Features | Android 16 with EDLA certification, 4K display, 50-point touch, Optional Windows OPS module, Built-in whiteboard, WonderCast for up to 9 devices, Built-in network switch, AI Assistant and AI Notes |
| Model | DS-D5B75RB/EP |
| Type | Interactive Flat Panel |
| What's in the Box | Wall-mount bracket, hook, touch pen, 3M touch USB cable, 3.5 m HDMI cable, power cable, remote control, cleaning cloth, user manual |
| Aspect Ratio | 16:9 |
| Backlight | DLED |
| Brightness | 450 nits (typical) |
| Color Depth | 10 bit (8 bit + FRC) |
| Color Gamut | 72% NTSC (typical) |
| Contrast Ratio | 5,000:1 (static); 30,000:1 (dynamic) |
| Panel Technology | VA |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 5 ms |
| Screen Size | 75 inch |
| Touch Accuracy | ±0.5 mm (90% or more of touching area) |
| Touch Points | 50-point multi-touch |
| Touch Resolution | 32768 x 32768 |
| Touch Response Time | 2 ms or less |
| Viewing Angle | 178° (H) / 178° (V) |
| Operating System | Android 16 |
| Processor | Quad-core Cortex-A72 at 2.2 GHz and quad-core Cortex-A53 at 1.8 GHz |
| RAM | 8 GB, plus up to 8 GB virtual RAM |
| Storage | 128 GB |
| DisplayPort | DP IN 1.4 via two 65 W USB-C ports |
| Speaker Output | 2 × 20 W + 25 W |
| Bluetooth | Bluetooth 5.4 (BLE) |
| Ethernet | LAN 1000 Mbps × 2 (rear) |
| HDMI Inputs | HDMI 2.1 TMDS × 3 (front × 1, rear × 2) |
| HDMI Outputs | HDMI 2.1 TMDS × 1 (rear) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | Optional OPS module, 195 x 30 x 180 mm |
| Ports | USB 3.0 × 3, USB 2.0 × 2, USB-C × 2 (65 W), SPDIF out × 1, audio in and out × 1 each |
| Serial Port | RS232 × 1 (rear) |
| Touch USB Ports | USB 3.0 × 1 (front), USB 2.0 × 2 (rear) |
| VGA Input | VGA × 1 (rear) |
| Wi-Fi | Wi-Fi 6, 802.11 a/b/g/n/ac/ax, 2 × 2 MIMO, 2.4 GHz and 5 GHz |
| Power Consumption | Under 189 W (average) |
| Standby Power | 0.5 W or less |
| Dimensions | 1709.83 x 1017.34 x 107.1 mm (with wall attachment) |
| Mounting | Wall mount |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 1907 x 1160 x 223 mm |
| Shipping Weight | 62.4 kg (gross) |
| Surface Protection | Anti-glare, anti-fingerprint glass; 9H pencil hardness |
| VESA Mount | 800 x 400 mm |
| Weight | 45.1 kg (net) |
| Certifications | EDLA certified |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
