Hikvision Pro Microphone 128-Mic Ceiling Array Microphone – DS-QAPMCU128

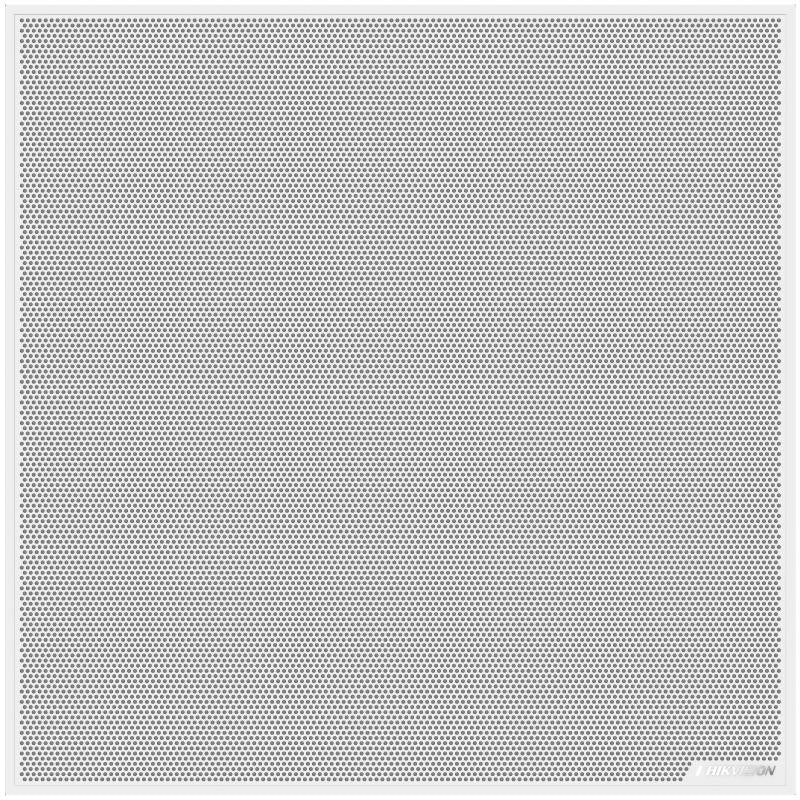

The Hikvision DS-QAPMCU128 is a 128-mic network ceiling array microphone for conference rooms that need ceiling pickup. It covers eight audio zones with a 5 m video conference pickup radius, and supports AES67 network audio and PoE. Procure.ae supplies the Hikvision DS-QAPMCU128 across the UAE.

The microphone is rated from 20 Hz to 20 kHz, with a 68 dB signal-to-noise ratio, 104 dB dynamic range and a 130 dB SPL acoustic overload point. Audio is sampled at 48 kHz with 24-bit depth. Eight audio collection zones can be adjusted and given priorities, and intelligent noise reduction handles transient noise in the room. Processing includes AEC, AFC, AGC, EQ adjustment and beam control. The sound reinforcement pickup radius is 3 m and the video conference pickup radius is 5 m.

The DS-QAPMCU128 suits conference rooms that need ceiling-mounted pickup with network audio. Ceiling mounting requires a 600 x 600 mm suspended ceiling, and pendant mounting needs a wall at least 60 mm thick. The unit supports AES67 transmission for low-latency network audio, and the manufacturer states that later versions will add AES67 third-party compatibility. Power and audio can share one PoE network cable. The Audio Assistant Tool on Windows handles activation, network, routing and parameter settings.
