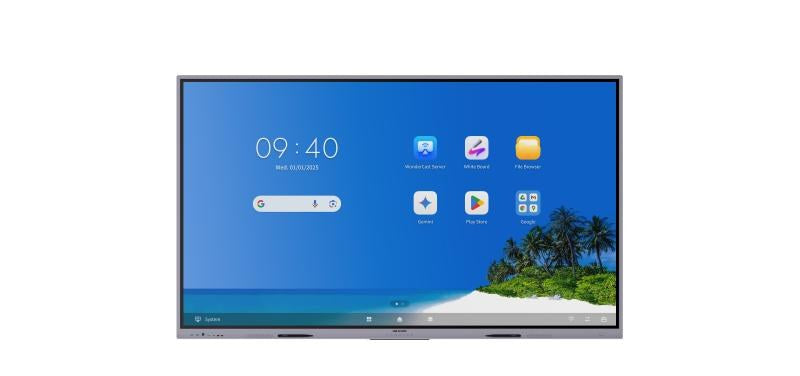

Hikvision Performance Series 86-inch 4K Interactive Flat Panel – DS-D5B86RB/EP
The Hikvision DS-D5B86RB/EP is an 86-inch 4K interactive flat panel from the WonderHub Performance Series, with 50-point touch, built-in Android 16 (EDLA certified) and 8 GB of RAM. It has a 450 nits IPS display and Wi-Fi 6. Procure.ae, an authorised Hikvision reseller in Dubai, supplies it across the UAE.
The DS-D5B86RB/EP (also listed as DS-D5B86RB/EP(EDLA)) has an 86-inch IPS panel with DLED backlight, 3840 x 2160 resolution at 60 Hz, 450 nits typical brightness and 1200:1 static contrast (15,000:1 dynamic). Colour depth is 10-bit (8-bit + FRC) with 72% NTSC gamut. The zero-lamination glass is anti-glare, anti-fingerprint and rated 9H for pencil hardness. Touch supports up to 50 points with a response time of 2 ms or less and a precision of ±0.5 mm.
Android 16 runs on an eight-core processor (four Cortex-A72 at 2.2 GHz and four Cortex-A53 at 1.8 GHz) with 8 GB RAM plus up to 8 GB virtual RAM and 128 GB of storage. An optional OPS module (195 x 30 x 180 mm) adds a Windows system. Built-in tools include a whiteboard, WonderCast screen casting for up to 9 devices, and AI Assistant, AI Identify and AI Notes. A built-in network switch chip removes the need for an external switch.
Key features
Specifications
| Key Features | 50-point touch, Android 16 (EDLA), 4K UHD IPS, 8 GB RAM, Wi-Fi 6, Bluetooth 5.4, optional OPS Windows module, built-in whiteboard |
| Model | DS-D5B86RB/EP |
| Type | Interactive Flat Panel |
| What's in the Box | Wall mount bracket, touch pen, 3 m touch USB cable, 3.5 m HDMI 2.0 cable, power cable, remote control, cleaning cloth, user manual |
| Aspect Ratio | 16:9 |
| Backlight | DLED |
| Brightness | 450 nits |
| Color Depth | 10-bit (8-bit + FRC) |
| Color Gamut | 72% NTSC |
| Contrast Ratio | 1,200:1 (static); 15,000:1 (dynamic) |
| Panel Technology | IPS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 5 ms |
| Screen Size | 86 inch |
| Touch Accuracy | ± 0.5 mm |
| Touch Points | 50-point multi-touch |
| Touch Resolution | 32768 x 32768 |
| Touch Response Time | ≤ 2 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Functions | Whiteboard with handwriting recognition, WonderCast casting (up to 9 devices), AI Assistant, AI Identify, AI Notes, NFC reader |
| Graphics | Mali-G52 MC3 |
| Operating System | Android 16 |
| Processor | Quad-core Cortex-A72 (2.2 GHz) + quad-core Cortex-A53 (1.8 GHz) |
| RAM | 8 GB (plus up to 8 GB virtual RAM) |
| Storage | 128 GB |
| Audio In | 3.5 mm audio × 1 |
| Audio Out | 3.5 mm audio × 1; S/PDIF × 1 |
| Speaker Output | 2 × 20 W + 25 W |
| Bluetooth | Bluetooth 5.4 (BLE) |
| Ethernet | Gigabit LAN × 2 |
| HDMI Inputs | HDMI 2.1 × 3 (1 front, 2 rear) |
| HDMI Outputs | HDMI 2.1 × 1 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | Optional OPS module (195 x 30 x 180 mm) for Windows |
| Serial Port | RS-232 × 1 |
| Touch USB Ports | Touch USB 3.0 × 1 (front); Touch USB 2.0 × 2 (rear) |
| USB Ports | USB 3.0 × 3 (2 front, 1 rear); USB 2.0 × 2 (rear) |
| USB-C Ports | USB-C × 2 (front: USB 3.0, 65 W charging, DP In 1.4; rear: USB 2.0, 65 W charging, DP In 1.4) |
| VGA Input | VGA × 1 |
| Wi-Fi | Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax), 2.4 GHz and 5 GHz, 2 x 2 MIMO |
| Power Consumption | < 210 W (average) |
| Standby Power | ≤ 0.5 W |
| Dimensions | 1957 x 1156.5 x 77.7 mm (without wall attachment) |
| Duty Cycle | 16 hours/day, 7 days/week |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 2157 x 1345 x 223 mm |
| Shipping Weight | 72.8 kg |
| Surface Protection | 9H anti-glare, anti-fingerprint glass (zero lamination) |
| VESA Mount | 800 x 600 mm (4 × M8) |
| Weight | 52.7 kg (net) |
| Certifications | EDLA certified (Android) |
